113ZY 113mm brushed dc motor for Industrial Automation
Price:
Negotiable
MOQ:
1000
Delivery Time:
45days
Brand:
DEHE MOTOR
Product Description

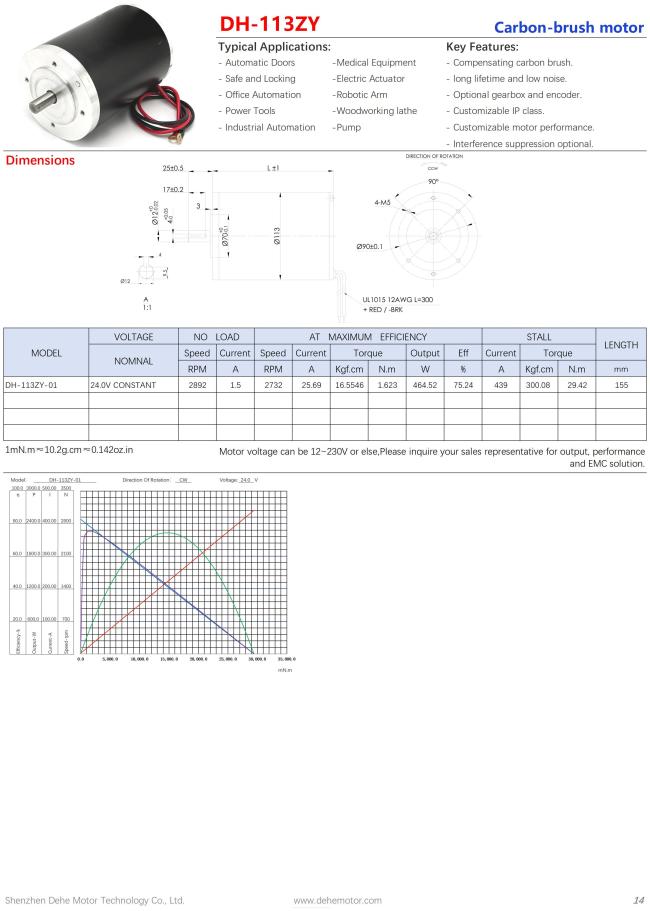

This is DC brushed motor with diameter of 113mm, the maximum length of the motor is 200mm. Customization of motor performance, output shaft, mounting holes, etc. is available.
Features:
Application:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | LENGTH | ||||||||||
| NOMNAL | Speed | Current | Speed | Current | Torque | Output | Eff | Current | Torque | ||||||
| RPM | A | RPM | A | Kgf.cm | N.m | W | % | A | Kgf.cm | N.m | mm | ||||
| DH-113ZY-01 | 24.0V CONSTANT | 2892 | 1.5 | 2732 | 25.69 | 16.5546 | 1.623 | 464.52 | 75.24 | 439 | 300.08 | 29.42 | 155 | ||
| 1mN.m≈10.2g.cm≈0.142oz.in | Motor voltage can be 12~230V or else,Please inquire your sales representative for output, performance and EMC solution. | ||||||||||||||
