30mm 2953 Planetary gear motor is applied to Power Lift Gate
MOQ:
1000
Delivery Time:
45days
Brand:
DEHE MOTOR
Product Description
This is 2953 Planetary gear motor is applied to Power Lift Gate.
Features:
- Compensating carbon brush.
- long lifetime and low noise.
- Optional gearbox and encoder.
- Customizable IP class.
- Customizable motor performance.
- Interference suppression optional.
Application:
- Food and Beverage
- Laboratory Instrumentation
- Medical Equipment
- Semiconductor
- Business Machines
- Industrial Automation
- Transportation
- Automobile parts

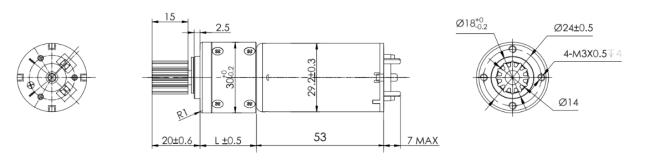

Dimensions:
Gear Ratio:
| Gear Ratio Stage | 1 | 2 | 3 | 4 | |
| Gear Ratio | 3.7 | 13.7 | 51.0 | 187 | |
| 5.2 | 19.0 | 71.0 | 262 | ||
| 27.0 | 99.0 | 367 | |||
| 139.0 | 514 | ||||
| 720 | |||||
| Length(mm) | 23.5 | 29.7 | 35.9 | 42.1 | |
| Efficiency(%) | 80% | 70% | 60% | 50% | |
| Rated tolerance torque(Kgf.cm Max.) | 3.0 | 8.0 | 18.0 | 25.0 | |
| Max momentary tolerance torque (Kgf.cm) | 9.0 | 24.0 | 54.0 | 75.0 | |
Reference Data:
| Model | Voltage | No Load | Rated Load | ||||
| Nominal | Speed | Current | Speed | Current | Torque | ||
| R/Min | mA | R/Min | mA | Kgf.cm | |||
| DH-30P2953-01 | 9.0 | 1081 | ≤400 | 865 | ≤2500 | 1.33 | |
| DH-30P2953-02 | 9.0 | 772 | ≤400 | 618 | ≤2500 | 1.86 | |
| DH-30P2953-03 | 9.0 | 292 | ≤400 | 234 | ≤2500 | 4.32 | |
| DH-30P2953-04 | 9.0 | 211 | ≤400 | 168 | ≤2500 | 5.99 | |
| DH-30P2953-05 | 9.0 | 148 | ≤400 | 119 | ≤2500 | 8.51 | |
| DH-30P2953-06 | 9.0 | 78 | ≤400 | 63 | ≤2500 | 13.77 | |
| DH-30P2953-07 | 9.0 | 56 | ≤400 | 45 | ≤2500 | 19.17 | |
| DH-30P2953-08 | 9.0 | 40 | ≤400 | 32 | ≤2500 | 25* | |
| DH-30P2953-09 | 9.0 | 29 | ≤400 | 23 | ≤2500 | 25* | |
| DH-30P2953-10 | 9.0 | 21 | ≤400 | 17 | ≤2500 | 25* | |
| DH-30P2953-11 | 9.0 | 15 | ≤400 | 12 | ≤2500 | 25* | |
| DH-30P2953-12 | 9.0 | 11 | ≤400 | 9 | ≤2500 | 25* | |
| DH-30P2953-13 | 9.0 | 8 | ≤400 | 6 | ≤2500 | 25* | |
| DH-30P2953-14 | 9.0 | 6 | ≤400 | 4 | ≤2500 | 25* | |
1. Customizable output shaft dimensions.
2. Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.
3. The gearbox can also match with other motors.
