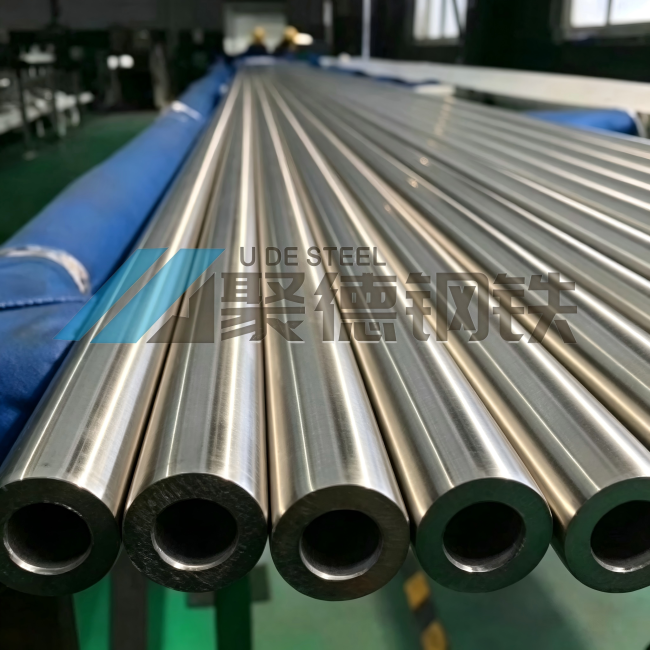

316L Stainless Steel Pipe Seamless ASTM A312 Standard Corrosion Resistant for Chemical and Marine Applications
Standard: ASTM A213, ASTM A249, ASTM A312, ASTM A358, ASTM A376, ASTM A409, ASTM A511, ASTM A554
Grade: 316, 316L, 316H
O.D: 8 - 1422mm
W.T: 0.5 - 100mm
Length: 5.8m, 6m, 11.8m, 12m or any other economic length
| Product Name | 316L Stainless Steel Pipe |
|---|---|
| OD | 8 - 1422mm |
| Grade | 316L, 316, 304, 304L |
| WT | 0.5 - 100mm Length: 5.8m, 6m, 11.8m, 12m or any other economic length |
| Standard | ASTM A213, ASTM A249, ASTM A312, ASTM A358, ASTM A376, ASTM A409, ASTM A511, ASTM A554 |
| Length | According to customer needs |
| Type | Seamless |
| Application | Manufacturing chemical equipment, storage tanks, pipelines, etc |
| Delivery Time | 8 ~ 14 days |
| Material | 200 Series/300 Series/400series |
| Tolerance | ±1% |
| Section Shape | Round |
| Processing Service | Bending, Welding, Punching, Moulding, Cutting |
| Welding Line Type | Seamless |
| Place of Origin | Other |
| Advantage | Corrosion resistance, good toughness |
| Material Status | Large stock or fast new production |
| Package | Standard Package |
| Technique | Cold Rolled Hot Rolled |
| Payment | T/T30% Deposit+70% Advance |
316L stainless steel pipe, sometimes referred to as A4 stainless steel or marine grade stainless steel, is the second most common austenitic stainless steel pipe after 304/A2 stainless steel. Its primary alloying constituents after iron are chromium (between 16-18%), nickel (10-12%), and molybdenum (2-3%), with small quantities of silicon, phosphorus & sulfur also present.
The addition of molybdenum provides greater corrosion resistance than 304, with respect to localized corrosive attack by chlorides and to general corrosion by reducing acids, such as sulfuric acid. 316L grade is the low carbon version of 316 stainless steel. When cold worked, 316 can produce high yield and tensile strengths similar to Duplex stainless grades.
It is commonly used in the chemical and petrochemical industry, in food processing, pharmaceutical equipment, medical devices, potable water, wastewater treatment, marine applications, and architectural applications near the seashore or in urban areas.
| Element | Type 316L (%) |
|---|---|
| Carbon | 0.03 max |
| Manganese | 2.00 max |
| Phosphorus | 0.045 max |
| Sulfur | 0.03 max |
| Silicon | 0.75 max |
| Chromium | 16.00-18.00 |
| Nickel | 10.00-14.00 |
| Molybdenum | 2.00-3.00 |
| Nitrogen | 0.10 max |
| Iron | Balance |
- Bundle package/In bundle with plastic bag outside/ 316L stainless steel pipe in wooden case
- Marking as per customer's request
- Paint on the pipe as per customer request
- Packaging on demand
- Chemical industry: Used to manufacture chemical equipment, pipelines, storage tanks, etc., such as reactors, heat exchangers, towers, etc., and can withstand the effects of various corrosive media.
- Marine engineering: Widely used in offshore platforms, submarine pipelines, seawater desalination devices and other fields, resisting seawater corrosion and harsh conditions of the marine environment.
- Food processing: Suitable for food processing equipment, transportation pipelines, containers, etc. to ensure the safety and hygiene of food.
- Medical industry: Used to manufacture medical devices, implants, etc., with good biocompatibility and corrosion resistance.
- Architectural decoration: Can be used for decoration, railings, handrails, etc. of high-end buildings, beautiful, durable and corrosion-resistant.
In Conclusion: 316L stainless steel pipe is a kind of stainless steel pipe with excellent performance and wide application. Its corrosion resistance, high temperature resistance, high strength, good processing performance, good sanitation performance and other characteristics make it have important application value in various fields.
If you have 316L stainless steel pipe needs, please contact us immediately.
