Mi6400C4 Industrial Mini PC Intel i5-6400 4xCOM, Dual LAN 3 Display

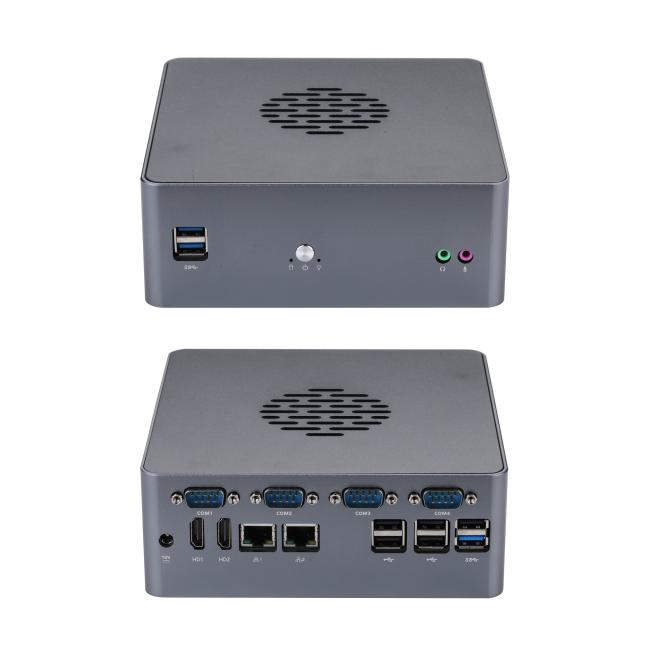

Product Images & Interface

Available CPU Options

Skylake (6th Generation)
Celeron G3900: 2 Cores, 2 Threads, 2.8GHz, 2M Cache, Intel HD Graphics 510, TDP: 51W.

Pentium G4500: 2 Cores, 2 Threads, 3.5GHz, 3M Cache, Intel HD Graphics 530, TDP: 51W.

Core i3-6100: 2 Cores, 4 Threads, 3.7GHz, 3M Cache, Intel HD Graphics 530, TDP: 51W.

Core i5-6400: 4 Cores, 4 Threads, 2.7GHz (Turbo up to 3.3GHz), 6M Cache, Intel HD Graphics 530, TDP: 65W.

Kaby Lake (7th Generation)
Celeron G3930: 2 Cores, 2 Threads, 2.9GHz, 2M Cache, Intel HD Graphics 610, TDP: 51W.

Pentium G4560: 2 Cores, 4 Threads, 3.5GHz, 3M Cache, Intel HD Graphics 610, TDP: 54W.

Core i3-7100: 2 Cores, 4 Threads, 3.9GHz, 3M Cache, Intel HD Graphics 630, TDP: 51W.

Core i5-7500: 4 Cores, 4 Threads, 3.4GHz (Turbo up to 3.8GHz), 6M Cache, Intel HD Graphics 630, TDP: 65W.

Coffee Lake (8th Generation)
Celeron G4900: 2 Cores, 2 Threads, 3.1GHz, 2M Cache, Intel UHD Graphics 610, TDP: 54W.

Pentium G5400: 2 Cores, 4 Threads, 3.7GHz, 4M Cache, Intel UHD Graphics 610, TDP: 54W.

Core i3-8100: 4 Cores, 4 Threads, 3.6GHz, 6M Cache, Intel UHD Graphics 630, TDP: 65W.

Core i5-8400: 6 Cores, 6 Threads, 2.8GHz (Turbo up to 4.0GHz), 9M Cache, Intel UHD Graphics 630, TDP: 65W.

Coffee Lake Refresh (9th Generation)
Celeron G4930: 2 Cores, 2 Threads, 3.2GHz, 2M Cache, Intel UHD Graphics 610, TDP: 54W.

Pentium G5420: 2 Cores, 4 Threads, 3.8GHz, 4M Cache, Intel UHD Graphics 610, TDP: 54W.

Core i3-9100: 4 Cores, 4 Threads, 3.6GHz (Turbo up to 4.2GHz), 6M Cache, Intel UHD Graphics 630, TDP: 65W.

Core i5-9400: 6 Cores, 6 Threads, 2.9GHz (Turbo up to 4.1GHz), 9M Cache, Intel UHD Graphics 630, TDP: 65W.

Products Key Advantages

• High-Performance Processing: Powered by the Intel Core i5-6400 (up to 3.3GHz), providing reliable 4-core performance for demanding industrial applications.

• Exceptional Connectivity: Features 4 x RS-232 COM ports (supporting 5V/12V and RS-485) and 8 USB ports for seamless integration with legacy and modern peripherals.

• Versatile Display Support: Equipped with 2 x HDMI and 1 x VGA ports, allowing for triple-display setups or flexible monitoring configurations.

• Robust Storage & Memory: Supports up to 64GB DDR4 RAM and dual storage (M.2 SSD + 2.5" SATA) for high-speed data handling and large capacity.

• Wide OS Compatibility: Uniquely supports win dows 7 (Skylake architecture), alongside win dows 10, 11, and Linux, ensuring stability for specialized software.

Application Fields

• Industrial Automation: Ideal for PLC control, motion control, and CNC machinery due to its multiple COM ports and RS-485 support.

• Edge Computing & IoT: Perfect for data collection and processing at the edge with dual Intel Gigabit LAN for stable networking.

• Digital Signage & Commercial Displays: Utilizes triple video outputs to power multi-screen advertisements or information kiosks in retail and transit.

• Smart Security & Surveillance: Reliable hardware for NVR systems and AI-based monitoring thanks to high-speed storage and processing power.

• Self-Service Terminals: Powers ATMs, vending machines, and ticketing kiosks that require diverse I/O connections for card readers and printers.
