Intel J6412 Fanless Industrial Mini PC 6 X COM RS232 RS485 Dual LAN GPIO VGA
| Description | |
| CPU | Intel Celeron J6412, Elkhart Lake, 4 Cores, 4 Threads, 2.0GHz (Turbo up to 2.6GHz), 1.5M L2 Cache, Intel UHD Graphics (16 EUs). |
| CPU TDP | By CPU |
| Memory | 1 x DDR4 SO-DIMM Socket (Up to 32G) |
| Storage | 1 x 2.5-inch HDD/SSD 1 x Mini PCIe for mSATA SSD |
| Chipset | By CPU |
| Graphics | By CPU |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
| Lan Chipset | 2 x Realtek Gigabit LAN |
| Expansion | 1 x mSATA for SSD |
| 1 x M.2 for 4G/5G (B key, Type: 3042/3052)5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization 1 x M.2 for Wi-Fi (E key, Type: 2230) |
|
| GPIO | Yes |
| RS-485 | COM1/2 can be set up as RS-485 |
| AutoStart Jumper | Yes |

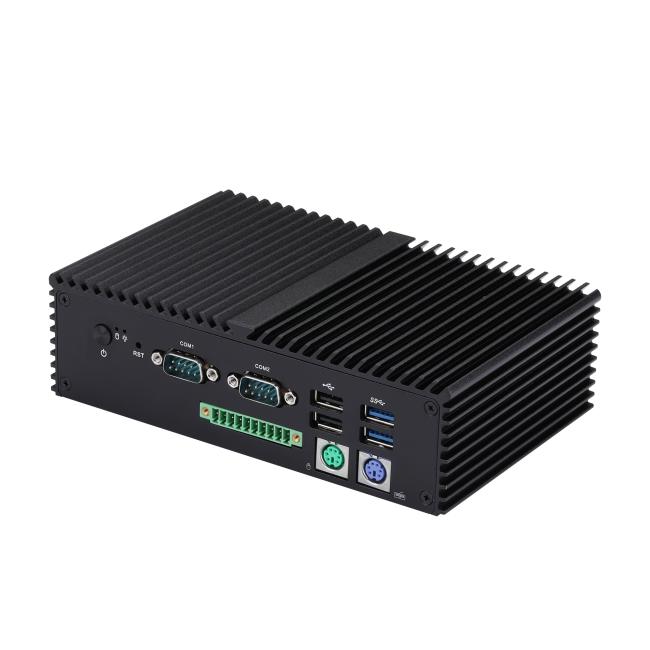

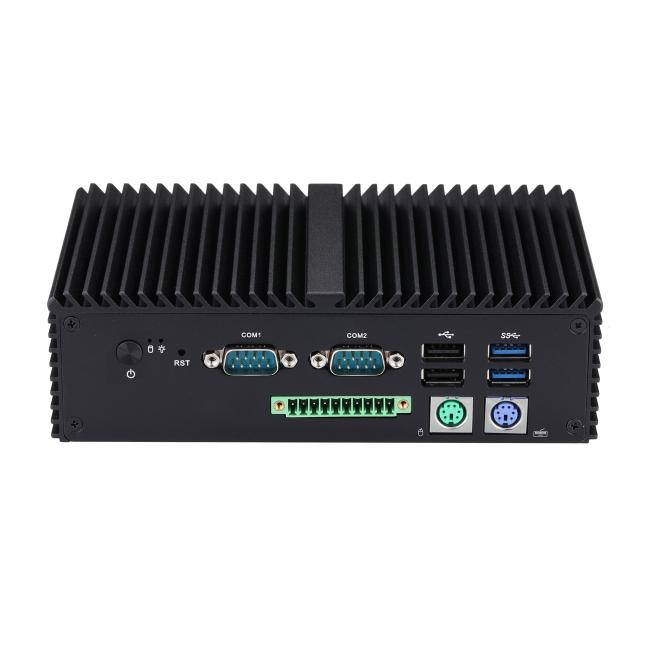

| Front I/O | |
| Power Button | 1 x Power Button, 1 x Reset Button |
| Serial Port | 2 x RS-232 (COM1/2 can be set up as RS-485) |
| LED | 1 x Power LED, 1 x HDD LED |
| USB | 2 x USB3.0, 2 x USB2.0 |
| PS2 | 1 x PS2 |
| GPIO | 1 x GPIO |

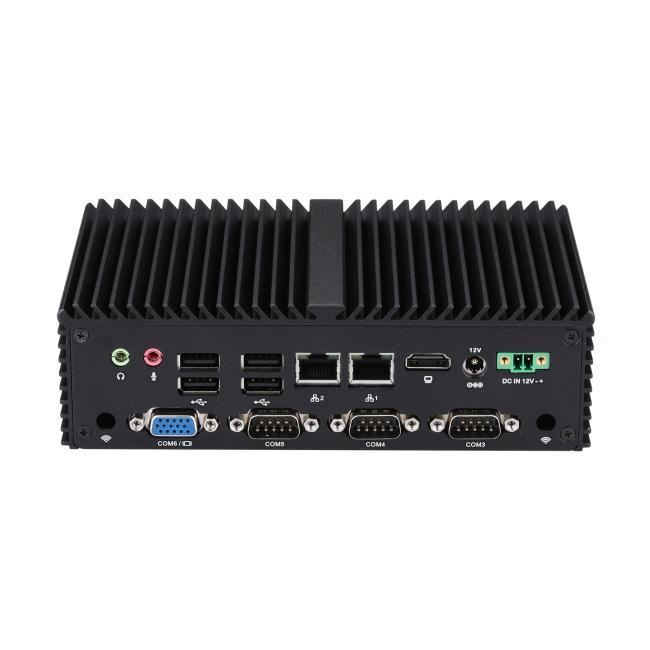

| Rear I/O | |
| Power | 1 x DC Jack |
| Display | 1 x HDMI,1 x VGA |
| Phoenix | 1 x 2Pin |
| Serial Port | 3 x RS-232 |
| USB | 4 x USB 2.0 |
| Audio | 1 x Mic-in, 1 x Line-out |
| LAN | 2 x Realtek Gigabit LAN |
| Other | |
| Material | Aluminum Alloy |
| Dimension | 178 x 111 x 52mm |
| Weight | 0.83kg |
| Packaging Dimension | 261 x 218 x 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | UEFI win dows 10, UEFI Linux |
| Environmental | |
| Operting Temp | 0℃~50℃ |
| Non-Operating Temp | -20℃~80℃ |
| Humidity | 10%~90% |
| Packlist | |
| Packing List | 1 x Mini PC,1 x Power supply,1 x Power cord,1 x VESA |
-
Robust Connectivity: Features 5xRS-232 COM ports (with COM1/2 supporting RS-485) and GPIO, providing extensive support for legacy industrial equipment and complex sensor integration.
-
Efficient Fanless Design: The passive cooling system ensures silent operation, eliminates dust buildup, and significantly reduces maintenance costs in harsh environments.
-
Powerful Elkhart Lake Architecture: Driven by the Intel Celeron J6412 Quad-Core processor, offering a perfect balance of low 10W TDP and responsive performance for edge computing.
-
Versatile Storage & Memory: Supports up to 32GB DDR4 RAM and triple storage options (mSATA, SATA 3.0, and M.2), allowing for high-speed data processing and large-capacity logging.
-
Compact & Durable Form Factor: Measuring only 178 x 111 x 52mm, its small footprint and rugged build make it easy to integrate into space-constrained industrial cabinets.
-
Industrial Automation & PLC: Ideal for factory floor controllers, machine vision systems, and interfacing with automated production lines via multi-COM connectivity.
-
Smart Retail & Kiosks: Powering interactive self-service terminals, digital signage, and point-of-sale (POS) systems that require 24/7 stability.
-
IoT Gateways & Data Acquisition: Acting as a bridge to collect, process, and transmit data from various sensors and devices to the cloud in real-time.
-
Network Security & Firewalls: Utilizing its dual Gigabit LAN ports for hardware firewalls, VPN gateways, or localized network management.
-
Environmental Monitoring: Deployable in remote stations for weather tracking or pollution monitoring thanks to its low energy consumption and wide temperature tolerance.
