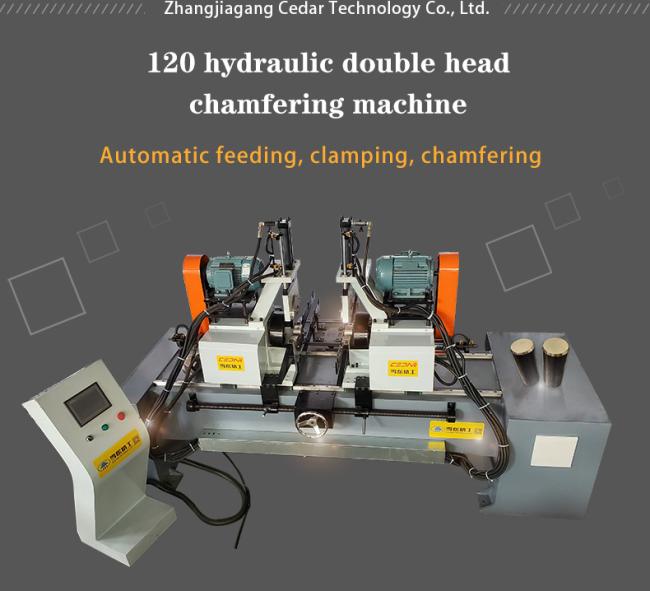

120Y Double Head Chamfering Machine for Stainless Steel Tube and Aluminum Rod
|
model |
XS-120Y-II hydraulic drag type double reverse machine |
|
|
Processing general iron, steel, aluminum, copper, round bars, hexagonal bars, etc. |
|
Use cutter head |
Standard cutter head,CCMT09T304 US735 CCMT16T304 US735 |
|
Applicable diameter |
16mm—120mm(pipe) |
|
Working length |
500mm—1000mm (Can be customized and extended) |
|
main motor power |
380V——4.0 KW*2station |
|
Oil pump motor |
380V----2.2 KW |
|
Oil pump pressure |
1.5——2.0 Mpa 60ml/min |
|
Processing fficiency |
5-20 seconds/piece (The speed varies according to the amount of cutting) |
|
Axial runout tolerance |
Less than ±0.1 mm |
|
Dimensions (up to 4.5 meters can be processed) |
Length 6000 mm Width 1500 mm Height 1600 mm |

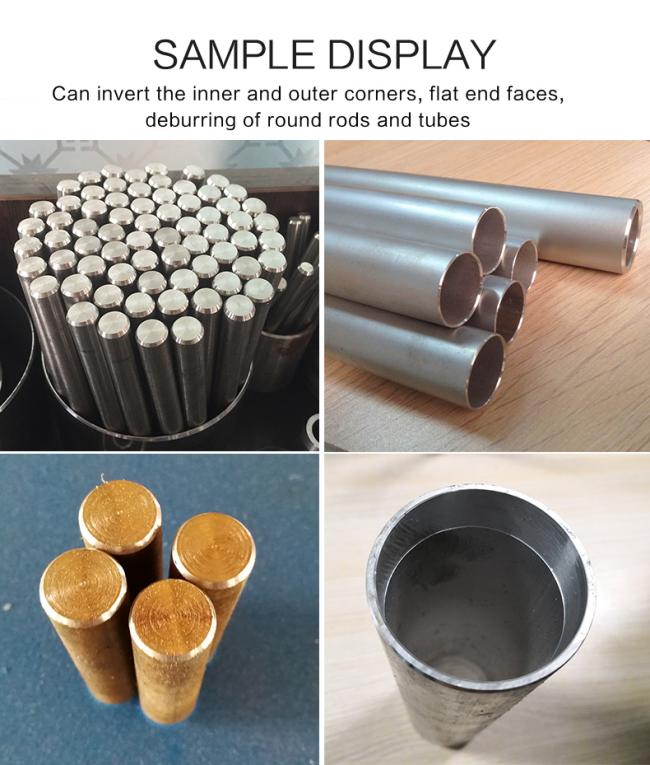

This machine is controlled by electrical appliances and hydraulic oil circuit, professionally do one-time automatic chamfering and finishing work on the end face, outer corner and inner corner of the pipe material. It is fast and accurate. Both ends are processed at one time, which is especially suitable for mass production. It can also be used for bar chamfering and end face cutting of some small diameter bars.

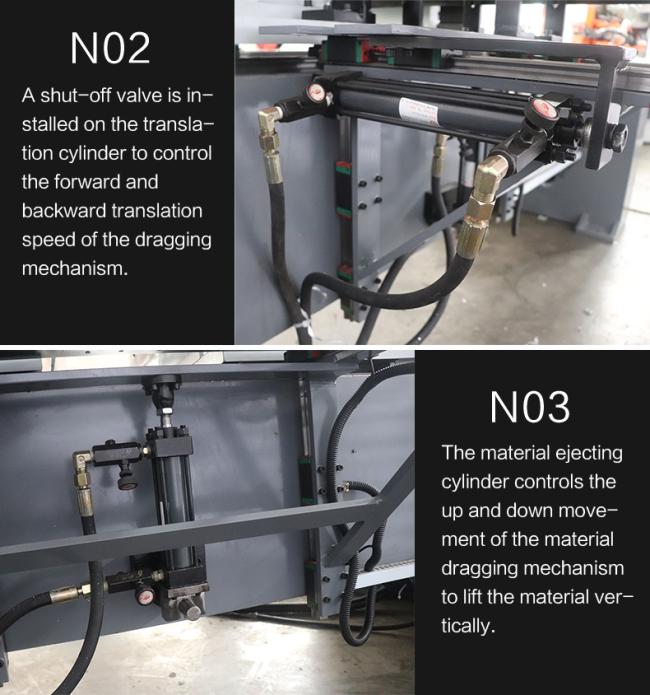

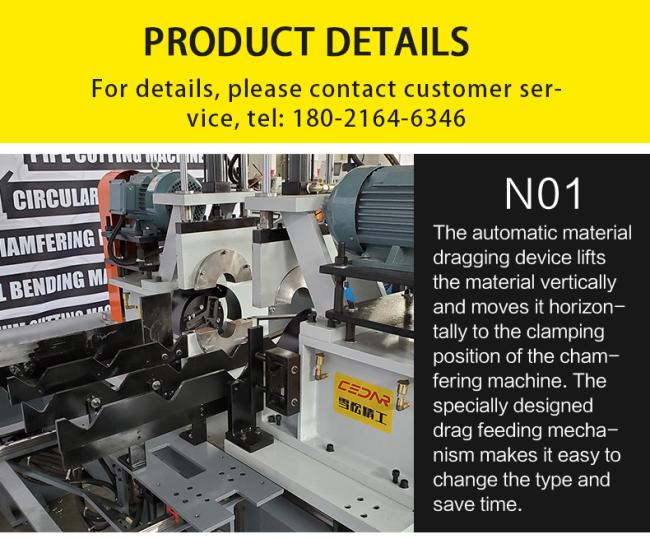

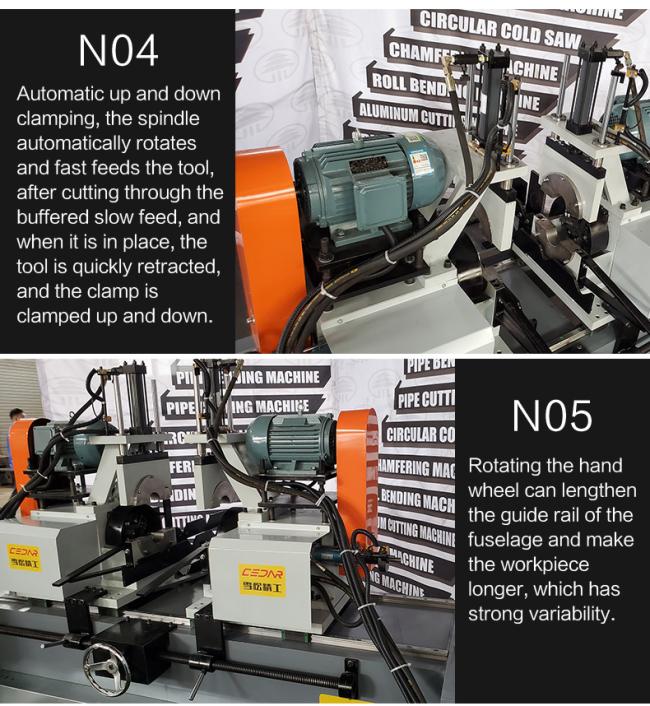

Action process: The material flows into the material waiting position of the chamfering machine through the slope. The automatic material dragging device lifts the material vertically and moves it horizontally to the clamping position of the chamfering machine. The chamfering machine automatically clamps up and down, and the spindle automatically rotates and quickly The tool feeds, after cutting through the buffered slow feed, and after it is in place, the tool is quickly retracted, the clamp is clamped up and down, the material is lifted vertically again, and moved out horizontally, the next unprocessed material enters the clamping position and chamfers again. . . . . .
FAQ
|
Choose us Q: How to quickly choose the most suitable product for you? A: You can check it on the product page, or contact customer service at +8618021646346 to tell the following details: What machine do you need? The size, thickness, material, and processing requirements of the workpiece, it is best to have a drawing of the workpiece, and we will provide a more professional machine according to your requirements. |
|
Payment method Q: What are your payment terms? A: We support T/T, L/C, etc. TT, 30% in advance, and the balance 70% before shipment. |
|
Delivery guarantee Q: What is the delivery time? A: Usually in stock, if you need to order fixtures and molds, we usually complete it within 7-15 working days. For customized products, please contact customer service to determine the exact time. |
|
Use guarantee Q: When I bought this machine, I didn't know how to use it. what do I do? A: We will send English manuals, installation and operation videos with the equipment. If you still have questions, we can talk via phone, Whatsapp, WeChat and email. |
|
Quality assurance Q: How to ensure quality? A: We have factories. We are industry experts and have been operating for more than 10 years. We always adhere to the policy of "high quality, all-round service". |
|
Warranty service Q: How long is the warranty period? A: Within one year from the date of leaving the factory, if the part fails or is damaged (Due to quality problems, wearing parts are excluded), our company provides these parts for free. |
|
Company visit Q: How do we reach your company? A: Our company is located in Zhangjiagang City, Jiangsu Province, near Shanghai. You can fly directly to PVG Airport or Shanghai Hongqiao Airport. Welcome to visit our company. |
