Waterproof 50x60mm RGB DMX LED Linear Tube for Stage Facade Lighting
Waterproof RGB DMX LED Tube - 50x60mm
Key Features
- Aluminum Base – Available in black or silver, durable and heat-dissipating
- Milky White Curved Diffuser – Soft, even, anti-glare illumination
- Length Options – 0.5m or 1m per tube
- Control Protocol Support – DMX512 or SPI (selectable)
- Remote Control Ready – Works with simple LED controllers for easy operation
- Pixel Density – 60 LEDs/m, 10 pixels/m for addressable effects
- IP65 Waterproof – Dust-tight and protected against low-pressure water jets
- Applications – Architectural facades, outdoor signage, landscape paths, bridges, stage design
Technical Specifications
| Parameter | Specification | |||
|---|---|---|---|---|
| Product Name | DMX LED Tube | |||
| Tube Length | 0.5 Meter | 1 Meter | ||
| Installation Method | Metal Clip Mounted | |||
| Beam Angle | 120 Degrees | |||
| Material | Aluminum Shell and PC Diffuser | |||
| Control Protocol | DMX512 / SPI, like UCS1903 | |||
| Input Voltage | DC12V | DC24V | DC12V | DC24V |
| LED Quantity | 30 | 30 | 60 | 60 |
| Pixel Quantity | 10 | 5 | 20 | 10 |
| IP Rating | IP65 | |||
| Color Options | RGB, RGBW | |||
| Operating Temperature | -20°C to 50°C | |||
Product Overview

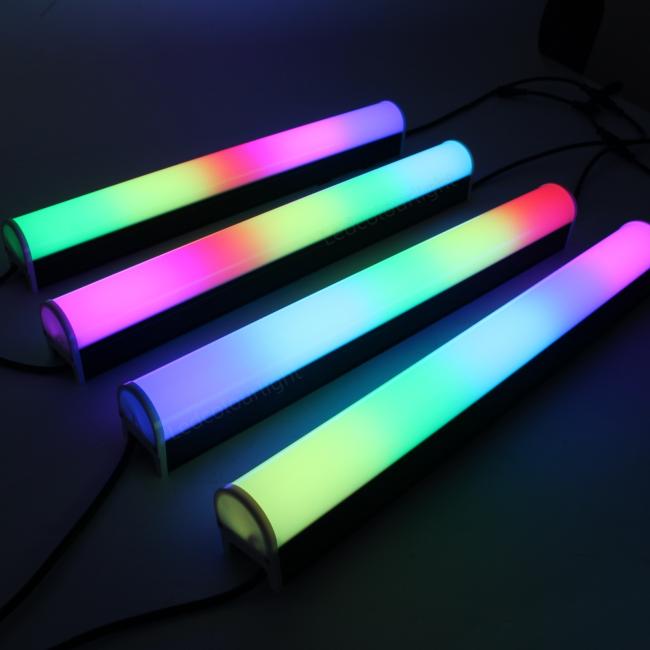

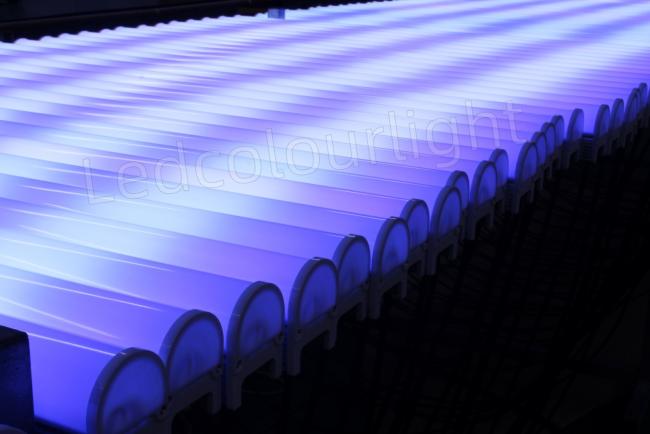

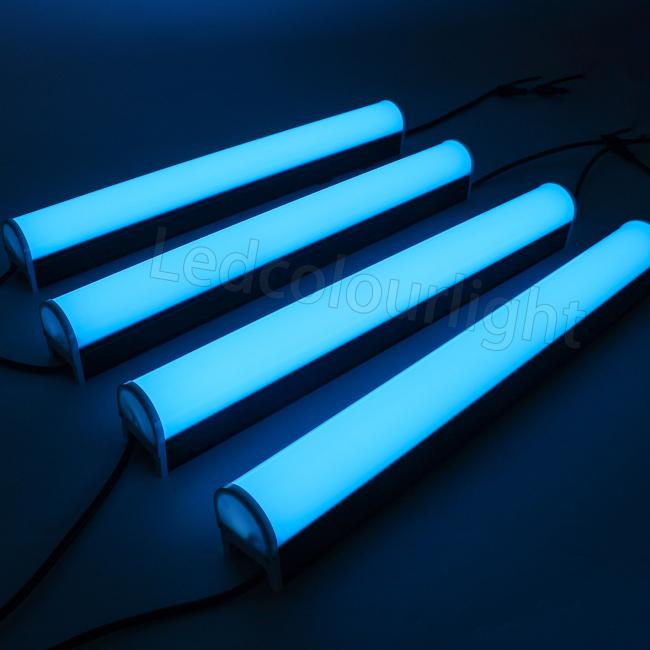

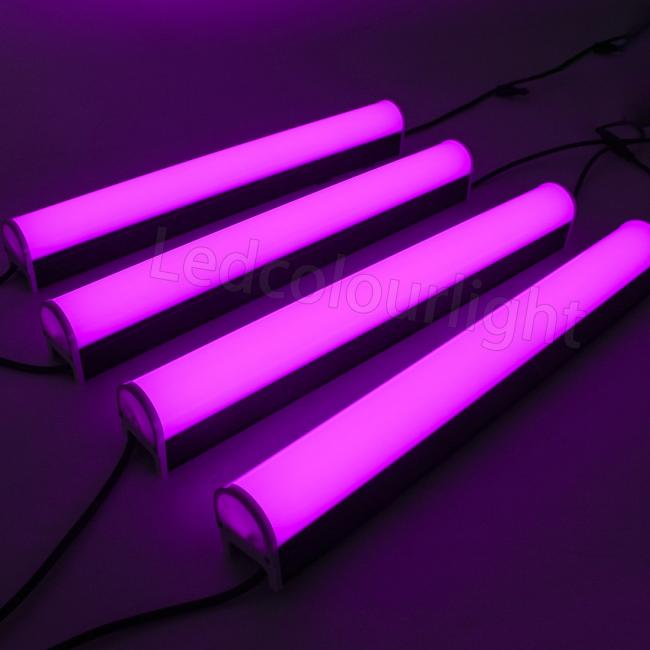

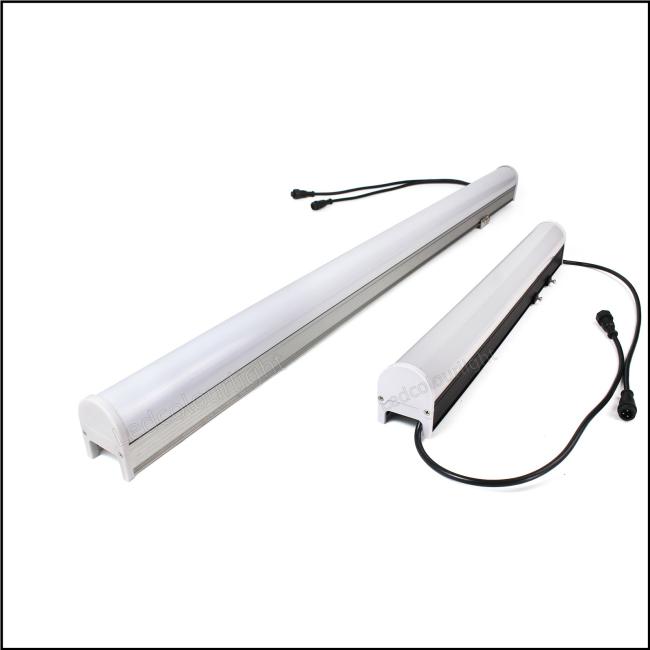

50×60mm Pixel Tube Light – Aluminum Base, DMX/SPI, IP65
The 50×60mm LED Pixel Tube is a professional-grade linear lighting solution designed for both architectural and decorative applications. It features a sturdy black or silver aluminum base paired with a milky white curved diffuser, delivering a soft, uniform light output with excellent anti-glare performance.

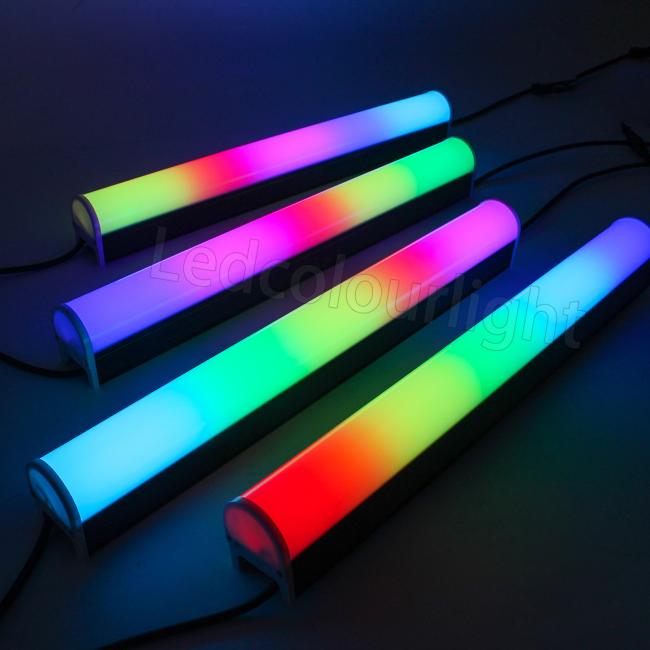

Available in 0.5m and 1m lengths, the tube supports both DMX512 and SPI control protocols, giving you flexibility for complex lighting shows or simple remote-controlled setups. With 60 LEDs per meter and 10 pixels per meter, each tube offers precise addressable control for stunning chases, fades, and color effects.
Rated IP65, this pixel tube is fully weatherproof and suitable for outdoor use – from building facades and landscape lighting to signs, bridges, and stage sets.

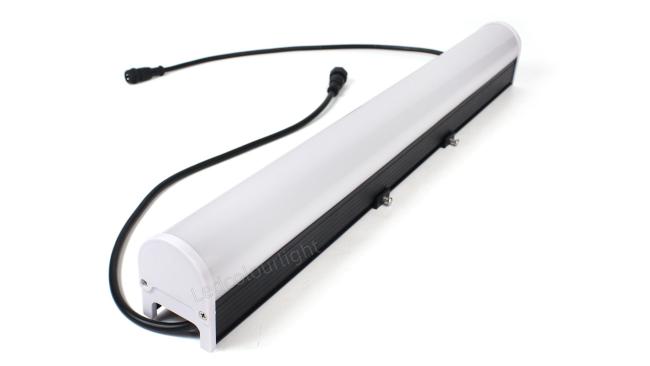

- 0.5m and 1m in length

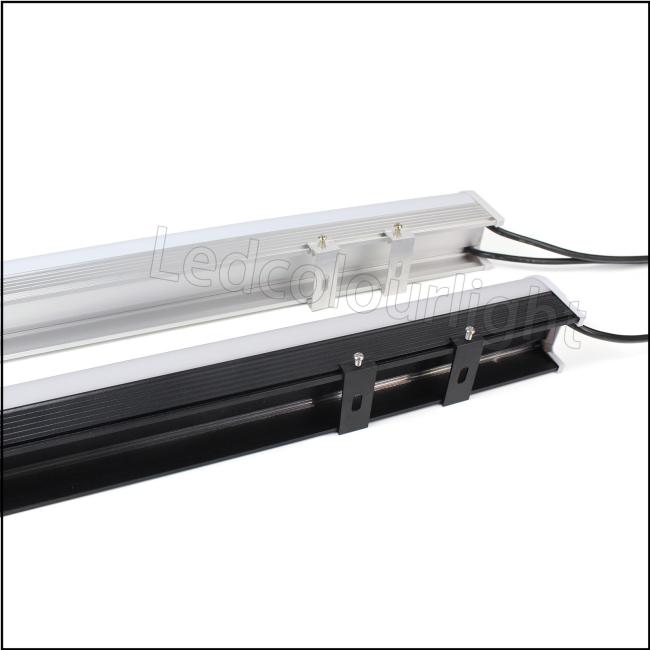

- Black and silver aluminum shell

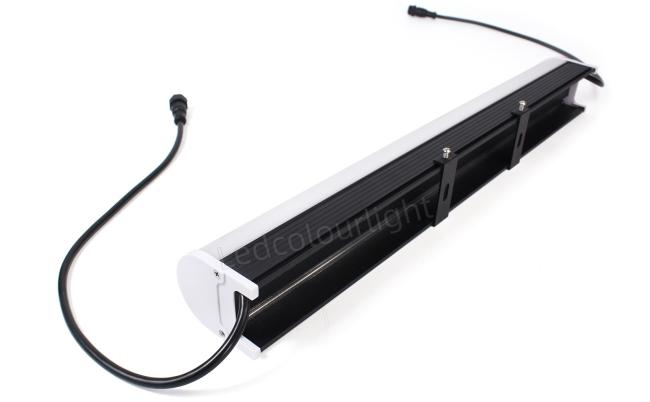

- Mounting brackets for easy installation

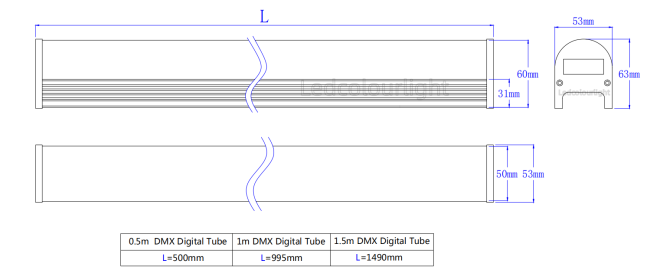

Product Dimension - 50x60mm pixel tube lights

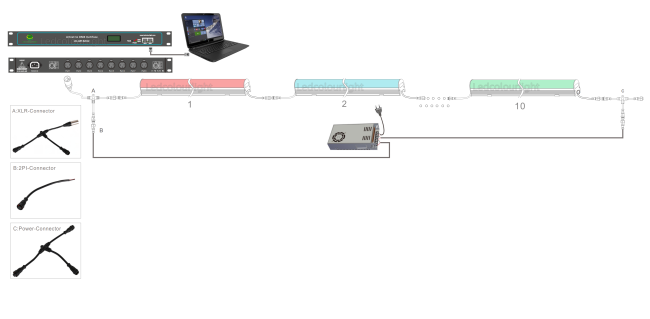

Wiring Diagram
- Standard DMX512 control protocol, works with Art-net controller, compatible with Madrix, Madmapper, Resolume, etc. software

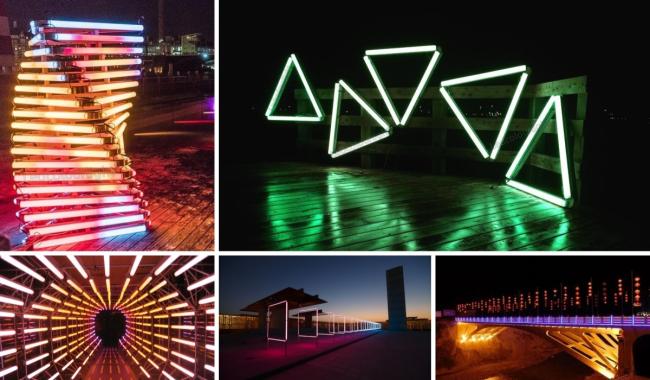

Applications
The DMX LED Tube excels in various lighting scenarios, including architectural lighting for building facades, stage and event lighting, urban lighting projects for bridges and public spaces, and commercial applications in hotels, shopping malls, and entertainment venues.
