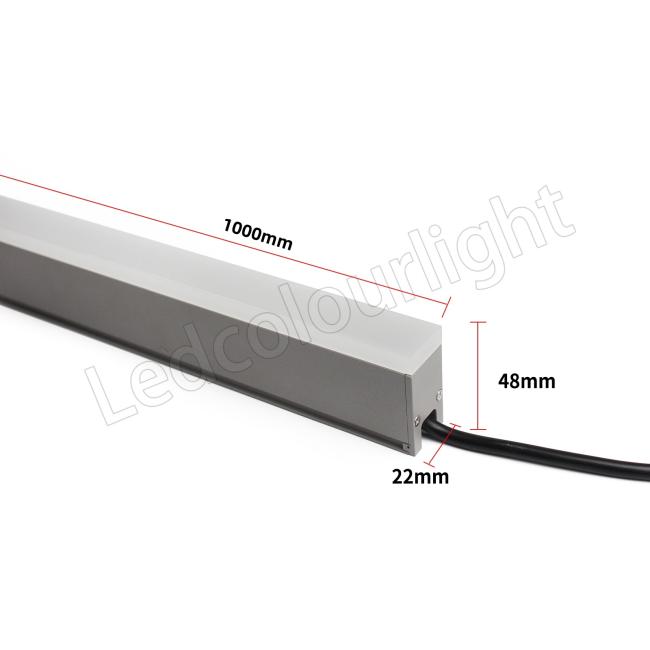

IP65 Outdoor 1000x22x48mm DMX512 Programmable RGB LED Linear Lights Bar

Key Features:

•  Customizable Sizing: Standard 500mm, 1000mm length, with 1.5m/2m custom options available to fit any project layout.
•  Superior Light Quality: Thick milky white acrylic diffuser eliminates LED spots, delivering smooth, uniform color mixing.
•  Efficient Thermal Management: High-grade aluminum housing ensures fast heat dissipation, extending the fixture’s lifespan.
•  Professional Control: 60 LEDs with 10 addressable pixels, supporting DMX512 protocol for precise color and effect control.
•  Seamless Installation: Bottom cable outlet design with seamless end-to-end connection, creating continuous, gapless lighting runs.
•  Stable & Durable: IP65 waterproof rating, DC24V low-voltage operation, and long service life for long-term use.
•  Easy Mounting: Includes 2 mounting brackets per unit for quick, secure installation on walls, ceilings, or trusses.

Technical Parameters:

Product Overview:

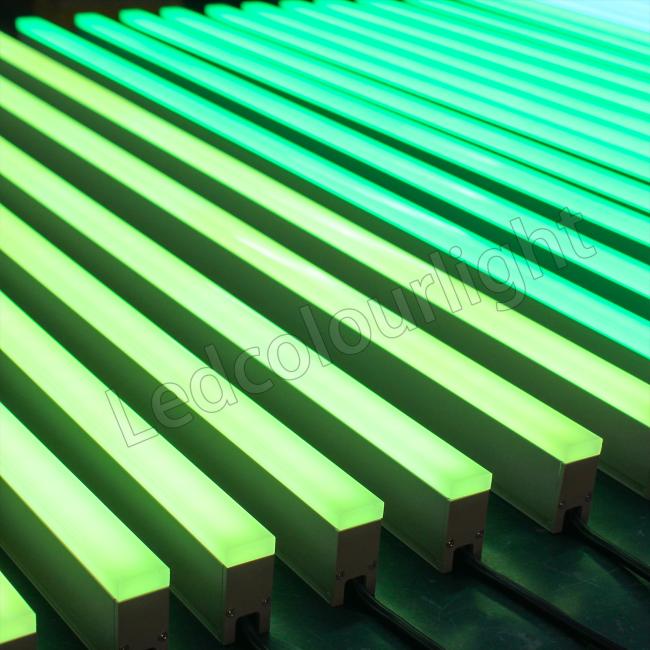

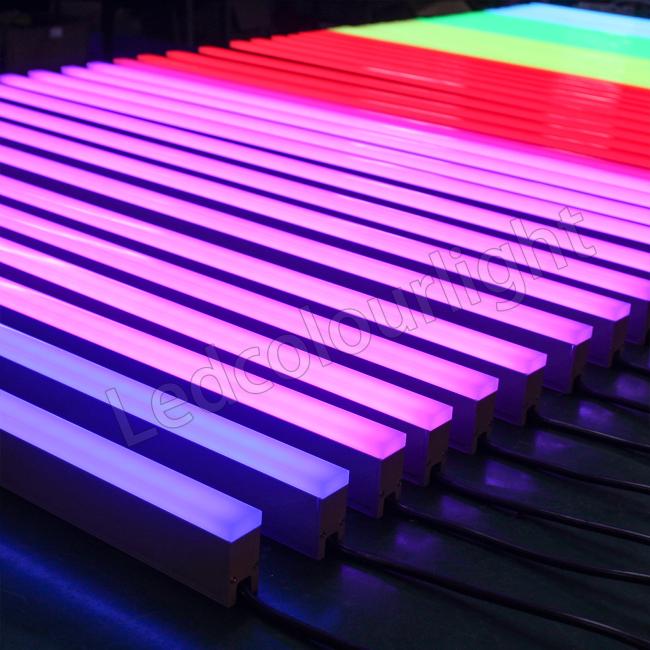

Ledcolourlight DMX512 LED Linear Pixel Bar is a high-performance, fully customizable lighting solution designed for professional architectural and stage applications. Built with a durable aluminum housing for fast heat dissipation and a thick milky white acrylic diffuser, it delivers smooth, spotless color mixing with 120° uniform illumination. Available in 500mm and 1000mm standard lengths (custom 1.5m/2m lengths also available), it features seamless daisy-chain installation, DC24V low-voltage operation, and IP65 waterproof rating for reliable indoor and outdoor use.

Control System Compatibility:

This linear LED bar works seamlessly with standard DMX512 control systems, including:
Professional lighting controllers and media servers
Art-Net / sACN network protocols (via compatible DMX nodes)
Standalone DMX master controllers for small to medium installations

Applications:

• Architectural Facades: Building outlines, perimeter lighting, and dynamic facade displays
• Stage & Events: Concerts, festivals, stage backdrops, and immersive light installations
• Commercial Spaces: Shopping malls, hotels, bars, and themed venue lighting
• Public Installations: Bridges, plazas, and outdoor public art projects
• Themed Attractions: Amusement parks, museums, and interactive light experiences

Packing and Shipping:

• Packaging: Each unit is packed in an individually protected bag and standard export boxes to prevent damage during transit. Custom bulk packaging available for large orders.
• Shipping: We offer flexible shipping options via air, sea, or express courier (DHL/FedEx/UPS) to meet your timeline. All orders include full tracking information.
• Lead Time: Standard orders ship within 7–15 working days; custom length projects are subject to confirmed lead time.

FAQ:

Q1: Can I get custom lengths besides 0.5m and 1m?
A: Yes, we support custom lengths based on your project requirements. Please contact our sales team with your exact specifications.
Q2: Is this fixture suitable for outdoor use?
A: Yes, it has an IP65 waterproof rating, making it ideal for outdoor applications including building facades, bridges, and open-air events.
Q3: How do I connect multiple units together?
A: The linear bars feature seamless end-to-end connectors and a bottom outlet design, allowing you to daisy-chain units together to form continuous, gapless lighting runs.
Q4: What control system do I need to use these fixtures?
A: They work with any standard DMX512 controller. For large installations, we recommend using Art-Net/sACN DMX nodes for networked control.
Q5: How many pixels does each bar have?
A: Each 1000mm unit contains 10 addressable pixels, enabling smooth, segmented color effects.
Q6: What is the expected lifespan of these LED bars?
A: With efficient aluminum heat dissipation, they have a rated lifespan of 50,000+ hours under normal operating conditions.
