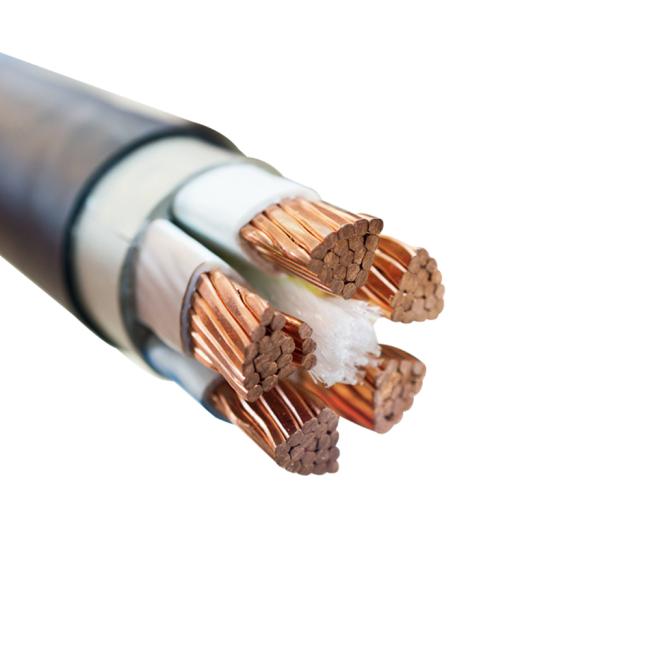

XLPE Insulated Armoured Cable 1.5mm² to 1000mm² Copper Conductor Medium Voltage Power Cable
Price:
0.1-5
MOQ:
100
Delivery Time:
10 Days
Brand:
Minfeng
Product Description
1.5mm² to 1000mm² Armoured Cable - 1 to 4 Core Power Cable with Copper Conductor and PVC/XLPE Insulation

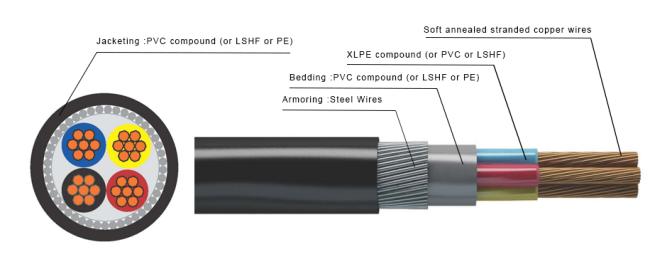

Power Cable Construction
| Component | Specification |
|---|---|
| Conductor | Plain stranded copper or aluminium |
| Insulation | Materials such as cross-linked polyethylene (XLPE) provide high temperature resistance and excellent dielectric strength, offering enhanced electrical properties |
| Bedding | A protective barrier layer between the insulation and the armour |
| Armour | Swa/sta/awa or non-armoured options available |
| Sheath | Holds cable components together with additional protection. Black sheaths can be carbon-loaded for UV stability |
| Voltage | Voltage ratings of 600/1000V, 6.35/11kV and 19/33kV |
Power Cable Description
Underground low voltage cables provide optimal safety and environmental protection for subscribers. Minfengcable offers a comprehensive range of LV underground power cables for creating, renewing, and extending power transmission and distribution networks worldwide. Our distinct advantage lies in relentless commitment to quality, supported by superior technical expertise and extensive manufacturing capabilities.
Power Cable Applications
Unarmoured cables are designated for general use including underground burial where mechanical damage is unlikely.
Armoured cables are most suitable for underground burial applications where there is risk of mechanical damage.
Power Cable Standards
- International: IEC 60502, IEC 60228, IEC 60332
- National: GB/T 12706.1, BS 5467
- Other standards such as BS, DIN and ICEA available upon request

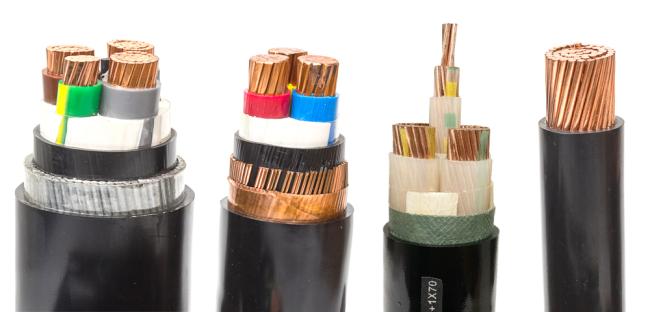

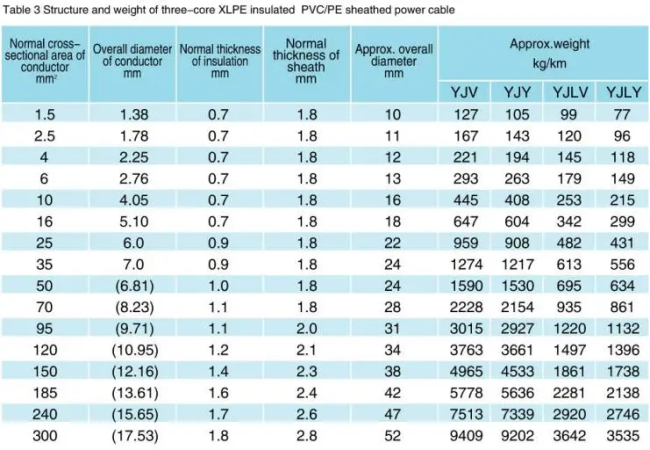

XLPE Power Cable Technical Data
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Copper core or aluminum core XLPE insulated PVC sheathed power cable Copper core or aluminum core XLPE insulated steel tape armoured PVC sheathed power cable Copper core or aluminum core XLPE insulated steel wire armoured PVC sheathed power cable |
| Rated Voltage | 0.6/1kV 1.8/3kV 3.6/6kV 6/10kV 8.7/15kV 12/20kV 21/35kV 26/35kV |
| Standard | B/T12706-2008, GB/T12703-200, IEC60502-1-1997 |
| Model | YJV YJLV YJV22 YJLV22 YJV32 YJLV32 YJV42 YJLV42 |
| Armoured | Steel tape armored, steel wire armored, Double of galvanized steel tape or galvanized steel wire for three core power cable, Double of aluminium tape or aluminium wire for single power cable |
| Number of cores | Single core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores, etc. |
| Common size | 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm², 500mm², 630mm², 800mm², 1000mm², etc. |
| Types | Ordinary type, flame-retardant type, fire-resistant type, low-smoke halogen-free type |
| Application | Power distribution engineering, power transmission engineering, electromechanical and hydropower installation engineering, power transmission, power supply installation system, control system, etc. |
