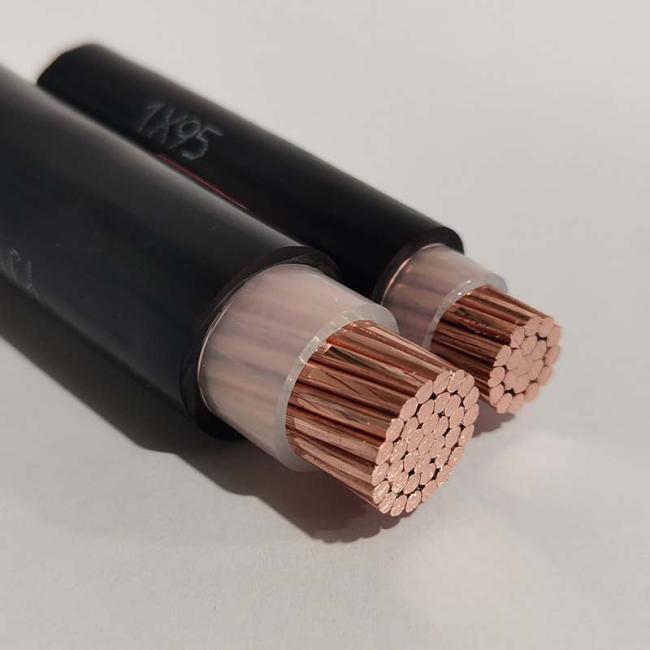

0.6/1kV LV Low Voltage XGB CU/XLPE/LSZH Single Core Electric Power Cable 1x25 1x35 1x50 1x95 1x120 1x150 1x185 1x240 Mm2

Name: 0.6/1kV LV Low Voltage XGB CU/XLPE/LSZH Single Core Electric Power Cable 1x25 1x35 1x50 1x95 1x120 1x150 1x185 1x240 Mm2
Brand: Minfeng Cable Group Co., Ltd

Price Negotiable

Price: 0.1-5

MOQ: 100

Delivery Time: 10 Days

Brand: Minfeng

Product Description

Key attributes

Size

1.5-1000mm2

Conductor Material

Copper/Aluminum

Insulation Material

XLPE/PVC

Jacket

PVC

Application

Construction&Industrial

Type

Low Voltage

Place of Origin

Hebei, China

Model Number

LV-YJV/YJLV

Brand Name

Minfeng

Product name

1 core power cable

Standard

BS IEC ASTM DIN

Voltage

0.6/1KV

Number of Cores

1 Core

Conductor

Copper/Aluminum

Insulation

XLPE/PVC

Sheath

PVC

Armour

SWA/STA/Non

MOQ

100M

Sample

Availaible

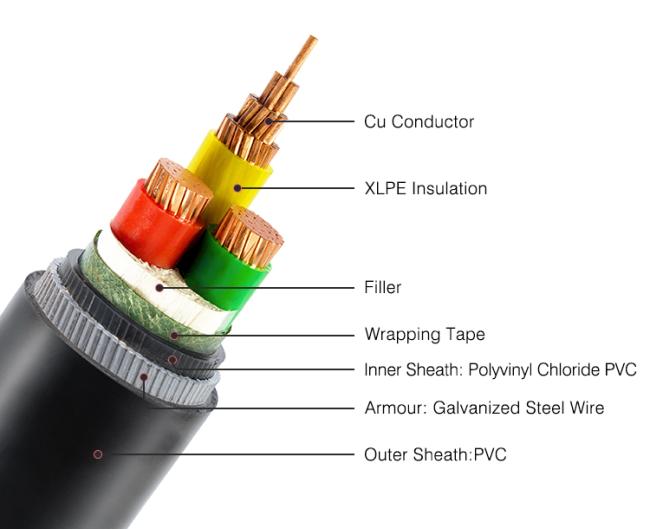

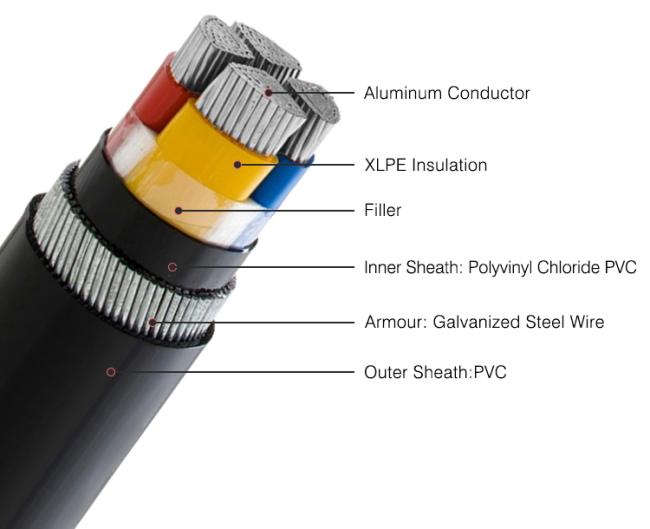

0.6/1kv Flexible Copper/Aluminum 1C 2C 3C 4C 3+1C 4+1C 3+2C SWA/STA PVC XLPE EPR Insulated PVC Sheathed Electrical Power Cable Wire

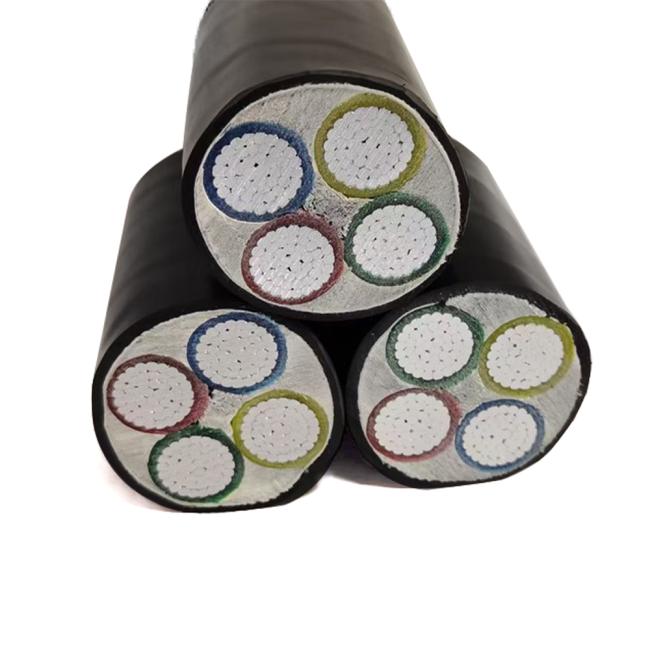

Conductor: Copper/Tinned Copper/Aluminium
Insulation/Jacket: XLPE/PVC

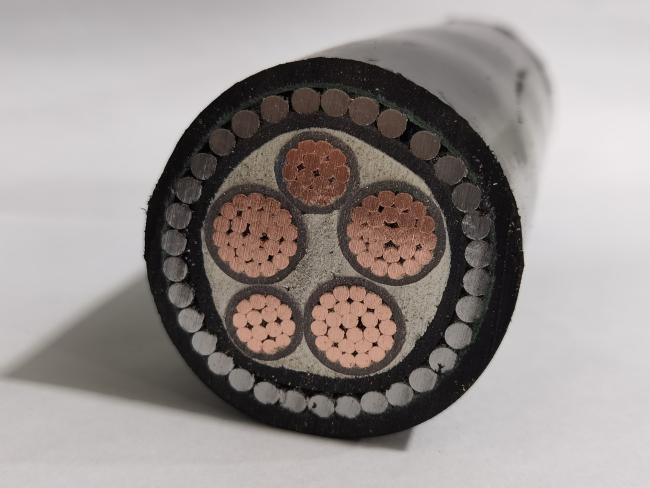

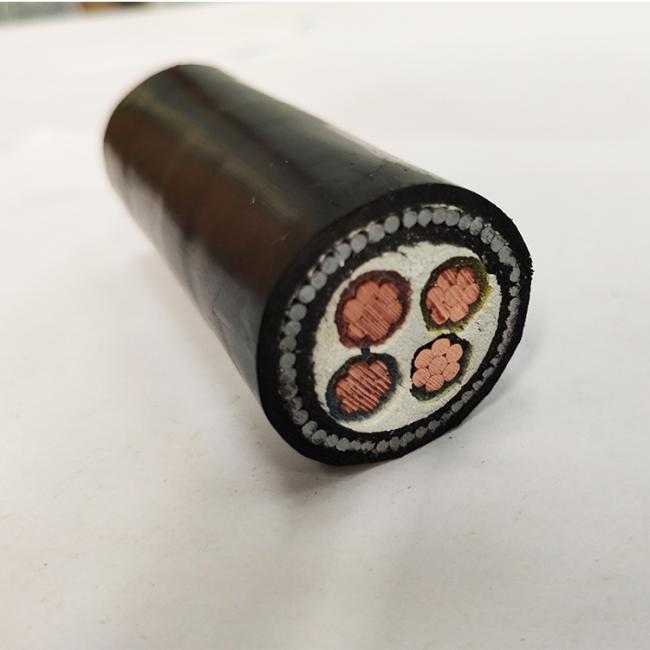

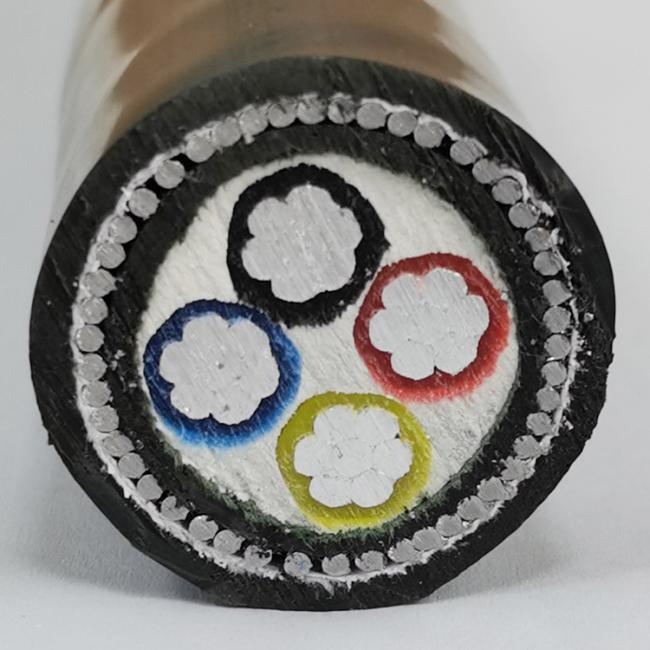

Armor: SWA(Steel Wire Armored) / STA(Steel Tape Armored) or Non-Armored

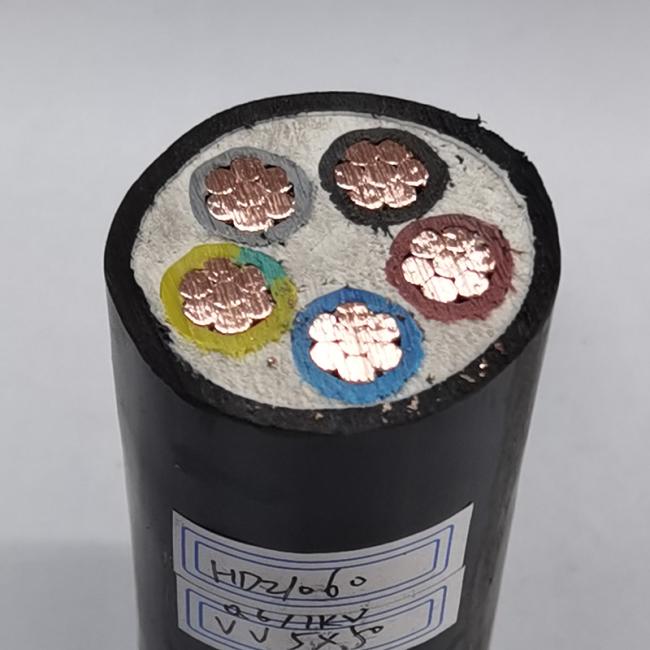

Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-1000mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.

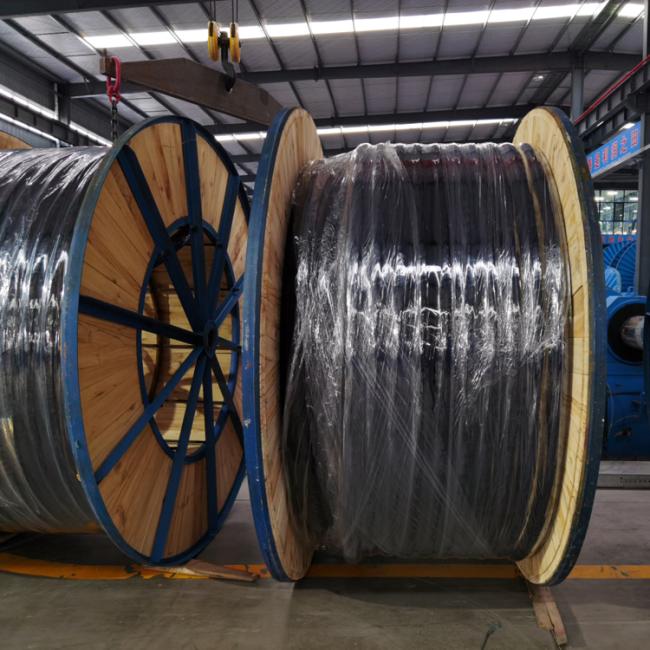

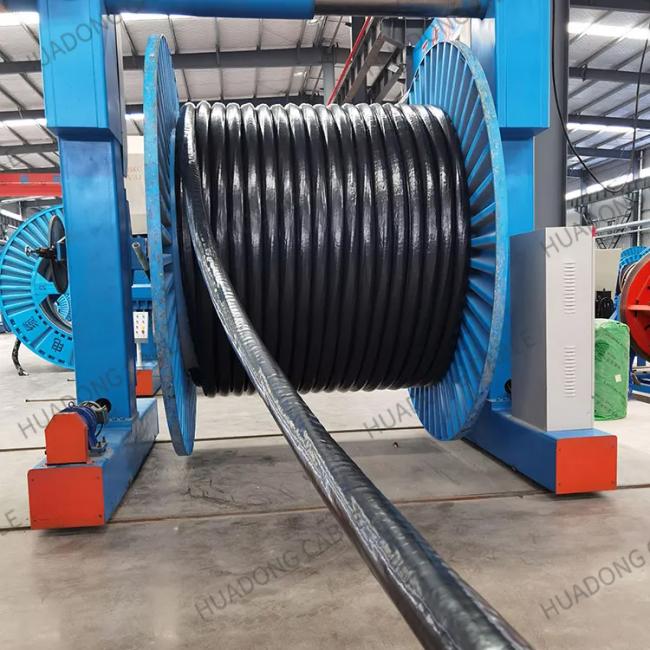

Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, School, Hospital, Underground and so on.
We can customize the size according to your requirement.

Specification

Cross Section	Stranding	Approx Weight	Approx Overall Diameter	Current Rating Laid Direct
mm²	mm	Kg/Km	mm	Amp
4 x 2.5	7/0.53	351	12.88	32
4 x 2.5	7/0.67	429	14.43	42
4 x 6.0	7/1.04	670	17.87	69
4 x 10	7/1.35	998	20.1	92
4 x 16	7/1.70	1,272	22.4	119
4 x 25	7/2.14	1,940	27	152
4 x 35	7/2.52	2,390	30.1	182
4 x 50	19/1.78	2,925	31.5	217
4 x 70	19/2.14	4,200	37.4	266
4 x 95	19/2.52	5,335	40.9	319
4 x 120	37/2.03	6,925	46.6	363
4 x 150	37/2.25	8,200	50.2	406
4 x 185	37/2.52	9,975	55.8	458
4 x 240	61/2.52	12,700	62.5	529
4 x 300	61/2.85	15,275	67.4	592
4 x 400	61/3.20	19,875	77	667

No. Cores	Nominal Conductor Area (mm2)	No. and Diameter of Wires (no./mm)	Radial Thickness of Insulation (mm)	Diameter Under Armour (mm)	Approximate Weight (kg/km)
4	1.5	7 / 0.53	0.8	11.8	216
4	2.5	7 / 0.67	0.8	12.8	267
4	4	7 / 0.85	1	15.3	379
4	6	7 / 1.04	1	16.7	477
4	10	7 / 1.35	1	18.9	669
4	16	7 / 1.70	1	21.5	932
4	25	7 / 2.14	1.2	25.6	1372
4	35	7 / 2.52	1.2	28.4	1785
4	50 (S)	19 / 1.78	1.4	32.7	2388
4	70 (S)	19 / 2.14	1.4	36.7	3269
4	95 (S)	19 / 2.52	1.6	42.2	4437
4	120 (S)	37 / 2.03	1.6	45.9	5469
4	150 (S)	37 / 2.25	1.8	51.1	6690
4	185 (S)	37 / 2.52	2	56.3	8287
4	240 (S)	61 / 2.25	2.2	63.3	10766
4	300 (S)	61 / 2.52	2.4	70.2	13373
4	400 (S)	61 / 2.85	2.6	79.7	16968
4	500 (S)	61 / 3.20	2.8	88	21161
