China 3X25+3X25/3 8,7/15kV (N)TSCGEWTOEUS NTSCGEWTOEUS Flexible Reeling Mining Cable for Energy Supply for sale

3X25+3X25/3 8,7/15kV (N)TSCGEWTOEUS NTSCGEWTOEUS Flexible Reeling Mining Cable for Energy Supply

Price Negotiable
Price: 0.1-5
MOQ: 100
Delivery Time: 10 Days
Brand: Minfeng
Product Description

Key attributes


Size
/
Conductor Material
Copper
Insulation Material
EPDM
Jacket
PCP
Application
Mining
Type
Medium Voltage
Place of Origin
Hebei, China
Model Number
(N)TSCGEWTOEUS Reeling Cable
Brand Name
Minfeng
Product name
(N)TSCGEWTOEUS Reeling Cable
Insulation
EPDM
Conductor
Copper
Voltage
1.8/3 (3.6)kV to 18/30 (36)kV
Jacket
PCP
Type
Reeling Cable
MOQ
100m
Product Description
APPLICATIONS AND FEATURES:
Flexible reeling cable for energy supply. Especially for high and extreme mechanical stress, e.g. torsional stress and high
reeling speed. For deflection into different planes. Also usable for festoon systems, open-cast and underground mining.
Main applications: Ship to Shore Cranes (STS), Rail Mounted Gantry Cranes (RMG), Ship Unloader, Stacker Reclaimer and other heavy mobile equipment.

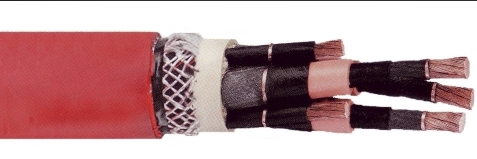

Cable Construction
1. Conductor Flexible, plain copper, “FSC” better than IEC 60228 class 5
2. Insulation Inner semi-conductive layer New special insulation compound “RHEYCLEAN” based on EPDM, better than DIN VDE 207 part 20.Outer semi-conductive layer,“RHEYSTRIP”, easy strip design
3. Protective earth conductor Flexible, plain copper, “FSC” better than IEC 60228 class 5
4.Semi-conductive layer
5. Inner sheath Special synthetic rubber,better than GM1b6. Reinforcement Synthetic threads with very high tensile strength as a protection against twist stress and pressure loads
7. Outer sheath New special sandwich construction for an optimum of flexibility, abrasion resistance and heavy load, special rubber compound
Colour:Red
Product Paramenters
Number of cores and
Outer diameter
Weight approx.
Tensile strength
nominal cross-section
(mm2)
Min. (mm)
Max. (mm)
(kg/km)
(N)
1.8/3 (3.6) kV
3 x 25 + 3 x 25/3
31
34
1,850
3,000
3 x 35 + 3 x 25/3
34
37
2,320
3,000
3 x 50 + 3 x 25/3
38
41
2,900
3,000
3 x 70 + 3 x 35/3
43
46
3,900
4,200
3 x 95 + 3 x 50/3
49
51
4,900
5,700
3 x 120 + 3 x 70/3
54
57
6,120
7,200
3 x 150 + 3 x 70/3
57
60
7,180
9,000
3 x 185 + 3 x 95/3
62
65
8,600
11,100
3 x 240 + 3 x 120/3
69
72
10,800
14,400
3 x 300 + 3 x 150/3
76
79
13,250
18,000
3.6/6 (7.2) kV
3 x 25 + 3 x 25/3*
39
42
2,350
3,000
3 x 35 + 3 x 25/3*
42
45
2,900
3,000
3 x 50 + 3 x 25/3
46
49
3,550
3,000
3 x 70 + 3 x 35/3
49
52
4,460
4,200
3 x 95 + 3 x 50/3
55
58
5,500
5,700
3 x 120 + 3 x 70/3
58
61
6,600
7,200
3 x 150 + 3 x 70/3
64
67
8,000
9,000
3 x 185 + 3 x 95/3
68
71
9,300
11,100
3 x 240 + 3 x 120/3
73
76
11,350
14,400
3 x 300 + 3 x 150/3
80
84
13,750
18,000
6/10 (12) kV
3 x 25 + 3 x 25/3*
39
42
2,350
3,000
3 x 35 + 3 x 25/3*
42
45
2,900
3,000
3 x 50 + 3 x 25/3
46
49
3,550
3,000
3 x 70 + 3 x 35/3
49
52
4,460
4,200
3 x 95 + 3 x 50/3
55
58
5,500
5,700
3 x 120 + 3 x 70/3
58
61
6,600
7,200
3 x 150 + 3 x 70/3
64
67
8,000
9,000
3 x 185 + 3 x 95/3
68
71
9,300
11,100
3 x 240 + 3 x 120/3
73
76
11,350
14,400
3 x 300 + 3 x 150/3
80
84
13,750
18,000
8.7/15 (18) kV
3 x 25 + 3 x 25/3*
39
42
2,350
3,000
3 x 35 + 3 x 25/3*
42
45
2,900
3,000
3 x 50 + 3 x 25/3
46
49
3,550
3,000
3 x 70 + 3 x 35/3
49
52
4,460
4,200
3 x 95 + 3 x 50/3
55
58
5,500
5,700
3 x 120 + 3 x 70/3
58
61
6,600
7,200
3 x 150 + 3 x 70/3
64
67
8,000
9,000
3 x 185 + 3 x 95/3
68
71
9,300
11,100
3 x 240 + 3 x 120/3
73
76
11,350
14,400
3 x 300 + 3 x 150/3
80
84
13,750
18,000
12/20 (24) kV
3 x 25 + 3 x 25/3
46
49
3,000
3,000
3 x 35 + 3 x 25/3
48
51
3,400
3,000
3 x 50 + 3 x 25/3
50
53
3,900
3,000
3 x 70 + 3 x 35/3
55
58
5,050
4,200
3 x 95 + 3 x 50/3
58
61
5,900
5,700
3 x 120 + 3 x 70/3
61
64
6,950
7,200
3 x 150 + 3 x 70/3
66
69
8,210
9,000
3 x 185 + 3 x 95/3
70
73
9,550
11,100
3 x 240 + 3 x 120/3
77
80
12,200
14,400
3 x 300 + 3 x 150/3
82
85
14,100
18,000
14/25 (30) kV
3 x 35 + 3 x 25/3
53
56
3,950
3,000
3 x 50 + 3 x 25/3
55
58
4,480
3,000
3 x 70 + 3 x 35/3
58
61
5,460
4,200
3 x 95 + 3 x 50/3
62
65
6,400
5,700
3 x 120 + 3 x 70/3
64
67
7,300
7,200
3 x 150 + 3 x 70/3
69
72
8,710
9,000
3 x 185 + 3 x 95/3
73
76
10,200
11,100
3 x 240 + 3 x 120/3
79
82
12,400
14,400
3 x 300 + 3 x 150/3
84
87
14,600
18,000
18/30 (36) kV
3 x 35 + 3 x 25/3
60
63
4,830
3,000
3 x 50 + 3 x 25/3
62
65
5,310
3,000
3 x 70 + 3 x 35/3
64
67
6,150
4,200
3 x 95 + 3 x 50/3
66
69
7,000
5,700
3 x 120 + 3 x 70/3
69
72
8,050
7,200
3 x 150 + 3 x 70/3
75
78
9,510
9,000
3 x 185 + 3 x 95/3
77
80
10,800
11,100
3 x 240 + 3 x 120/3
85
88
13,300
14,400
3 x 300 + 3 x 150/3
89
93
15,500
18,000
