304 Stainless Steel 7x19 Wire Rope Mesh with 20mm-200mm Mesh Size for Handrail and Guard Rail Systems
304 Stainless Steel Wire Rope Mesh Handrail Commercial Guard Rail System provides professional safety and protection solutions for commercial and industrial applications.
- Material: stainless steel 304, 304L, 316, 316L
- Ferrule material: tinned copper, nickel plated copper, stainless steel
- Surface treatment: silver or black oxide finish
- Construction of wire cable: 7 * 7, 7 * 19
- Cable diameter: 1.0-5.0 mm
- Mesh opening sizes: 20-200 mm
- Mesh opening angles: 20°, 30°, 60°, 70°, 75° (60° as standard opening)
- Connection: ferrule or knotted
- Certification: certified to EN1263-1 for static and dynamic load capacity
| Cable Diameter | Mesh Opening Size (W*H) |
|---|---|
| 1/8 inch (3.2 mm) | 2*3.46 inch (51*88.3 mm) |
| 3/32 inch (2.4 mm) | 2*3.46 inch (51*88.3 mm) |
| 5/64 inch (2.0 mm) | 2.4*4.16 inch (60*104 mm) |
| 5/64 inch (2.0 mm) | 2*3.46 inch (51*88.3 mm) |
| 5/64 inch (2.0 mm) | 1-1/2*2.6 inch (38*65.8 mm) |
| 1/16 inch (1.6 mm) | 2*3.46 inch (51*88.3 mm) |
| 1/16 inch (1.6 mm) | 1-1/2*2.6 inch (38*65.8 mm) |
| 1/16 inch (1.6 mm) | 1.2*2.08 inch (30*52 mm) |
| 1/16 inch (1.6 mm) | 1*1.73 inch (25.4*44 mm) |
| 3/64 inch (1.2 mm) | 1-1/2*2.6 inch (38*65.8 mm) |
| 3/64 inch (1.2 mm) | 1.2*2.08 inch (30*52 mm) |
| 3/64 inch (1.2 mm) | 1*1.73 inch (25.4*44 mm) |
| 3/64 inch (1.2 mm) | 4/5*1.39 inch (20*34.6 mm) |
Stainless Steel Cable Mesh, also called Flexible Stainless Steel Cable Mesh, Stainless Steel Rope Mesh, or Stainless Steel Wire Rope Mesh, is produced from high quality stainless steel wire cable.
Ferruled mesh has the same physical properties as knotted mesh, with the only difference being in the combination style. The stainless wire ropes are combined by ferrules made of the same grade stainless steel.
Knotted mesh is a kind of plain weave, where each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

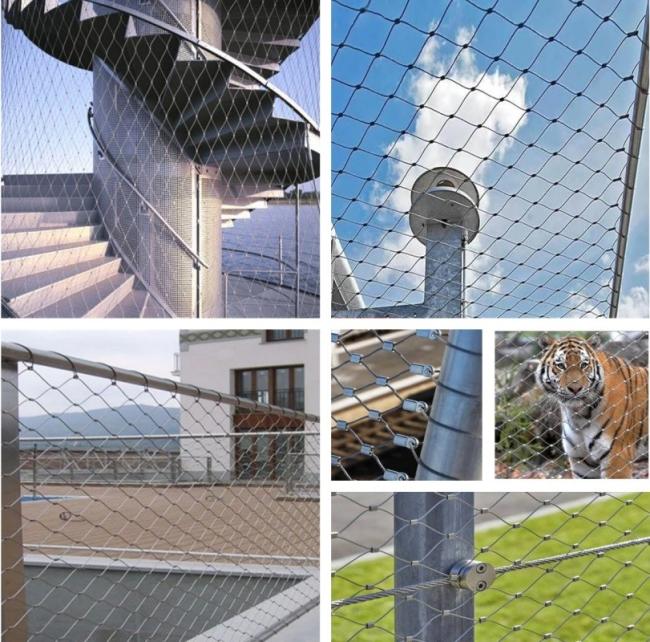

The transparent and flexible stainless steel rope mesh system is a professional solution for protection and safety applications, consisting of stainless steel wire ropes and steel structural supports. This system can be configured in various ways using different wire rope diameters and mesh aperture sizes to meet project requirements.
It is commonly used in buildings, bridges, and helicopter landing platforms to provide safety and protection measures.

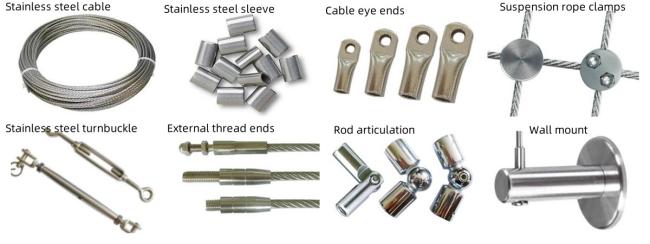

We also provide various parts, including stainless steel wire rope, buckle, sleeve, cable eye ends, suspension rope clamps, thread ends, rod articulation, and wall mounts.

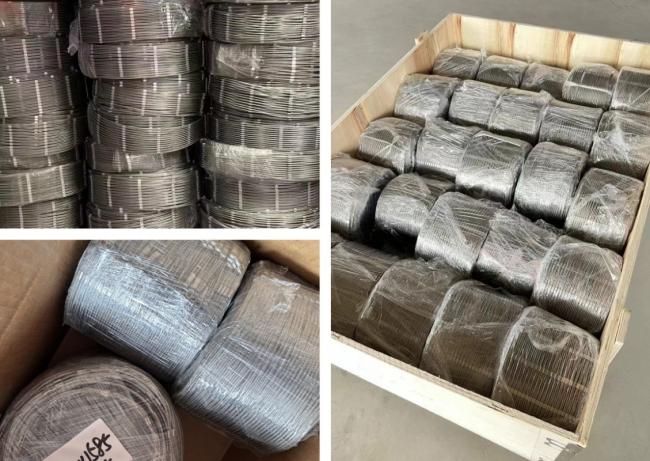

- The rope mesh without frame is packed in rolls with plastic film, then placed in wooden cases
- The rope mesh with frame is fastened on pallets
