Durable Stainless Steel Rope Mesh 304/316/316L Ferrule Mesh 6000mm Max Length For Railing Refurbishment
Price:
USD14-USD28 / M2
MOQ:
10 square meters
Delivery Time:
7 WORK DAYS
Brand:
huihaokasite
Product Description
Durable Stainless Steel Cable Ferrule Mesh for Railing Refurbishment and Modern Staircase Safety
Product Overview
Stainless steel ferrule mesh is perfect for lightweight architecture. The stainless steel cable mesh opens up a whole new world of spatial design options using cables. The intelligent combination of stainless steel cables and ferrules is the key to a wide range of geometries for engineered cable mesh constructions. The opposing curvature of the cables permits light, transparent structures possessing extremely high load capacity and long spans in relation to the low weight of the ferrule mesh material.
Quick Details
- Material: Stainless steel 304/316/316L
- Rope diameter: 1.2mm-3.2mm in common
- Open area: 20mm*35mm - 120mm*208mm
- Max length: 6000mm
- Max height: 2500mm
- Application: Balustrading, Fall protection, Fencing, Trellis mesh for small-size greenery, Decoration, Separation, Shopfitting, Siding, Cladding, Railing refurbishment
Product Specifications
| Item No. | Cable Diameter | Mesh Opening Size (W×H) |
|---|---|---|
| HH-32120F | 1/8 inch (3.2 mm) | 4.75 × 8.23 inch (120 × 207.8 mm) |
| HH-32102F | 1/8 inch (3.2 mm) | 4 × 6.9 inch (102 × 176.7 mm) |
| HH-3290F | 1/8 inch (3.2 mm) | 3.55 × 6.15 inch (90 × 156 mm) |
| HH-3276F | 1/8 inch (3.2 mm) | 3 × 5.2 inch (76 × 131.6 mm) |
| HH-3251F | 1/8 inch (3.2 mm) | 2 × 3.46 inch (51 × 88.3 mm) |
| HH-24102F | 3/32 inch (2.4 mm) | 4 × 6.9 inch (102 × 176.7 mm) |
| HH-2490F | 3/32 inch (2.4 mm) | 3.55 × 6.15 inch (90 × 156 mm) |
| HH-2476F | 3/32 inch (2.4 mm) | 3 × 5.2 inch (76 × 131.6 mm) |
| HH-2460F | 3/32 inch (2.4 mm) | 2.4 × 4.16 inch (60 × 104 mm) |
| HH-2451F | 3/32 inch (2.4 mm) | 2 × 3.46 inch (51 × 88.3 mm) |
| HH-2076F | 5/64 inch (2.0 mm) | 3 × 5.2 inch (76 × 131.6 mm) |
| HH-2060F | 5/64 inch (2.0 mm) | 2.4 × 4.16 inch (60 × 104 mm) |
| HH-2051F | 5/64 inch (2.0 mm) | 2 × 3.46 inch (51 × 88.3 mm) |
| HH-2038F | 5/64 inch (2.0 mm) | 1-1/2 × 2.6 inch (38 × 65.8 mm) |
| HH-1676F | 1/16 inch (1.6 mm) | 1.2 × 2.08 inch (76 × 131.6 mm) |
| HH-1651F | 1/16 inch (1.6 mm) | 2 × 3.46 inch (51 × 88.3 mm) |
| HH-1638F | 1/16 inch (1.6 mm) | 1-1/2 × 2.6 inch (38 × 65.8 mm) |
| HH-1630F | 1/16 inch (1.6 mm) | 1.2 × 2.08 inch (30 × 52 mm) |
| HH-1625F | 1/16 inch (1.6 mm) | 1 × 1.73 inch (25.4 × 44 mm) |
| HH-1238F | 3/64 inch (1.2 mm) | 1-1/2 × 2.6 inch (38 × 65.8 mm) |
| HH-1230F | 3/64 inch (1.2 mm) | 1.2 × 2.08 inch (30 × 52 mm) |
| HH-1225F | 3/64 inch (1.2 mm) | 1 × 1.73 inch (25.4 × 44 mm) |
| HH-1220F | 3/64 inch (1.2 mm) | 4/5 × 1.39 inch (20 × 34.6 mm) |

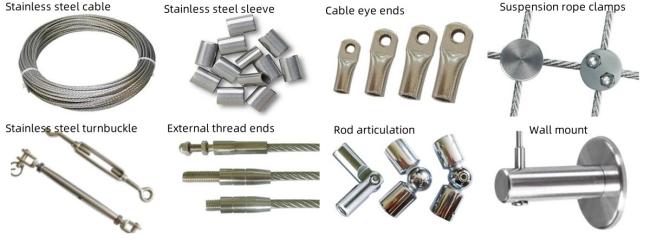

Installation Components
Installation Design Applications
- Staircase, handrail attached to vertical cable with screw-on cross clamp
- Combination of mesh and ropes (protection against climbing)
- Step-down protection, rod with fork head fixation
- Step-down protection, cable guiding fork head
- Redirectioning of border cable with cylindrical rope guiding element
- Helicopter landing pad, corner with 2 cables
- Redirectioning of border cable with screw-on cross clamps and vertical cables
- Border cable redirectioning, with welded saddle by steelworker
- Cable connection, eye-eye
- Cable connection, adjustable screw-on cross clamp
- Border cable fixation, intermediate cables at building corner
