Variable Length Disposable Wound Retractor Device Easy Install Self Retaining Design
Price:
$15.99-$14.49
MOQ:
2000-3000
Delivery Time:
7-15days
Brand:
Nuo De Medical
Product Description

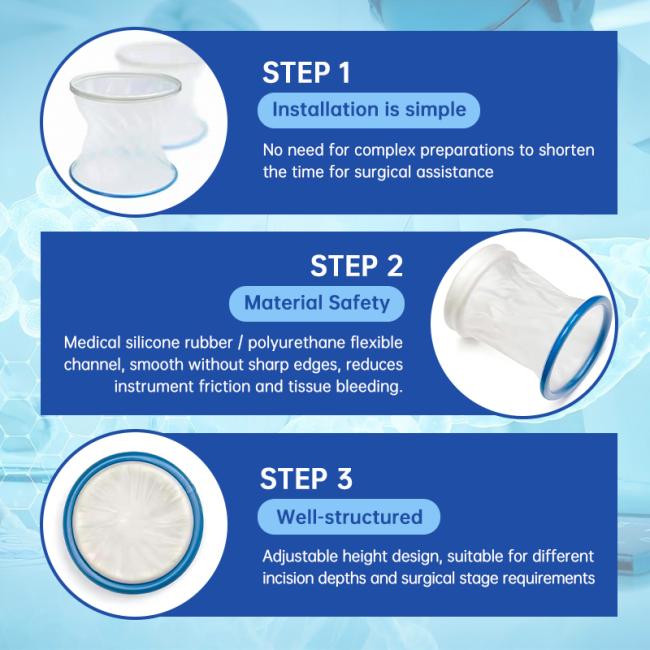

Disposable Wound Retractor with Easy Installation and Self-Retaining Design
Our disposable surgical wound protector and incision retractor is engineered to enhance operating efficiency in both open and laparoscopic procedures. The self-retaining design ensures optimal performance while maintaining surgical site integrity.
Product Options
Variable Length (Adjustable Height)
Best for Open Surgery
Specifically engineered for traditional open procedures requiring comprehensive wound edge protection and maximum retraction.
- Applications: General Surgery, Cesarean Sections (C-Section), Gynecological Procedures, and Standard Abdominal Operations
- Key Benefit: Provides 360° circumferential retraction while maintaining a moist wound environment
Fixed Length (Fixed Model)
Best for Minimally Invasive Surgery
Optimized for small incisions and endoscopic access, ensuring stable fixation and clear visualization.
- Applications: Laparoscopic/Endoscopic Surgery, Thoracoscopic Procedures, Appendectomies, and Other Small-Incision Operations
- Key Benefit: Secures the incision site integrity and prevents contamination during instrument passage

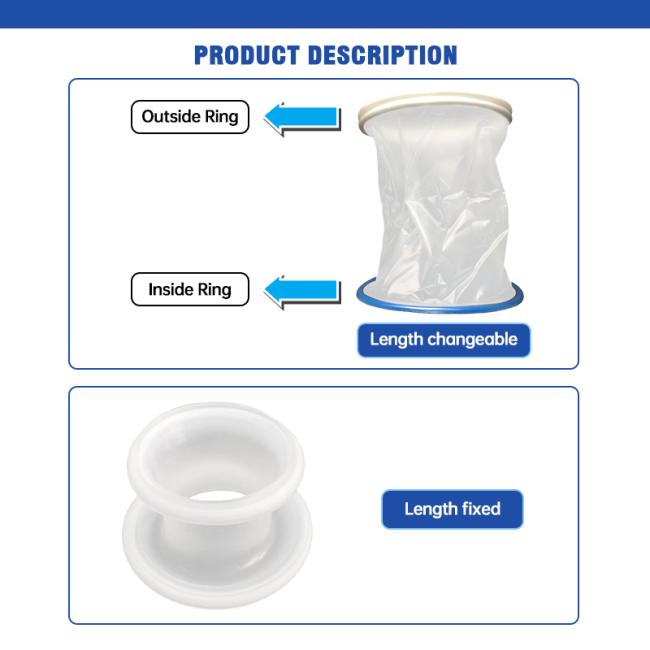

Wound Protector Models & Specifications
| Type | Code | Inside Ring Diameter (mm) | Outside Ring Diameter (mm) | Channel Diameter (mm) | Height (mm) | Incision Length (mm) |
|---|---|---|---|---|---|---|
| Length fixed | ND/40/30-15/20(D) | 30 | 40 | 15 | 20 | 10-15 |
| Length fixed | ND/50/40-15/20(D) | 40 | 50 | 15 | 20 | 10-15 |
| Length fixed | ND/70/70-35/25(D) | 70 | 70 | 35 | 25 | 30-35 |
| Length changeable | ND/60/70-60/150(B) | 70 | 60 | - | 40-150 | 10-40 |
| Length changeable | ND/80/90-80/150(B) | 90 | 80 | - | 40-150 | 30-60 |
| Length changeable | ND/120/130-120/250(B) | 130 | 120 | - | 40-250 | 60-90 |
| Length changeable | ND/150/160-150/250(B) | 160 | 150 | - | 40-250 | 90-120 |
| Length changeable | ND/180/190-180/250(B) | 190 | 180 | - | 40-250 | 100-150 |
| Length changeable | ND/200/210-200/250(B) | 210 | 200 | - | 40-250 | 120-170 |
| Length changeable | ND/220/230-220/250(B) | 230 | 220 | - | 40-250 | 150-200 |
Core Advantages & Performance
- Optimal Incision Management: Ensures safe and effective access without compromising the integrity of the surrounding tissue
- Enhanced Surgical Visualization: Maximally expands the incision site to provide a superior, unobstructed view of the operative field
- Fluid & Leakage Control: Securely seals the incision edges to prevent leakage and maintain a clean surgical environment
Incision Protection & Safety Features
- Biological Barrier Protection: Acts as a specialized barrier to protect the incision site from potential cellular contamination
- Advanced Infection Control: Provides a continuous physical shield to safeguard the incision from exogenous contaminants
- Thermal & Instrumental Shielding: Protects the wound edges from accidental thermal effects or friction caused by surgical instruments
Clinical Applications
Our medical wound protector is expertly engineered for abdominal, small-incision, and endoscopic procedures. It functions to optimize the surgical site by maximizing incision exposure for superior visualization while providing a continuous protective barrier for the incision wall. Supported by a professional technical team, our full range of open surgery instruments upholds the highest benchmarks of quality and precision, ensuring consistent and reliable performance in every clinical setting.
- Widely used in wound protector surgery applications
- Designed to withstand the rigors of the operating room with long-lasting durability
- Minimizes infection risk by creating a protective barrier against contaminants
- Easy-to-use design simplifies surgical setup and improves workflow efficiency
Product Images
