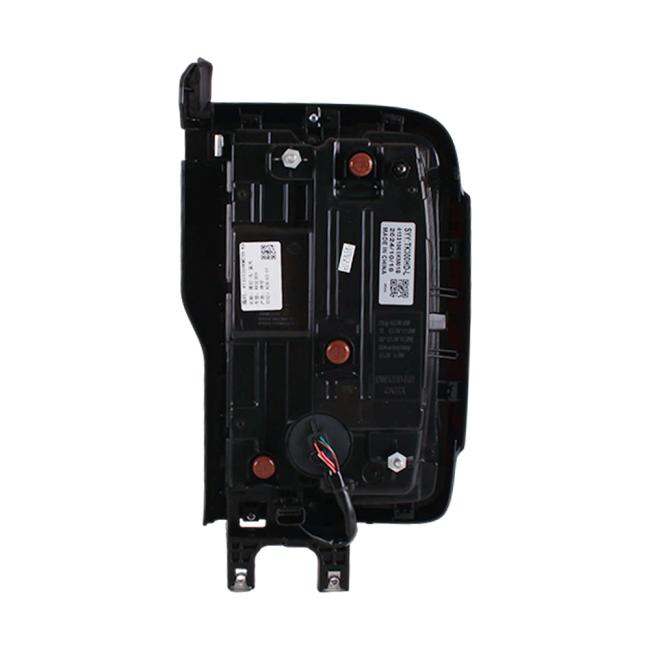

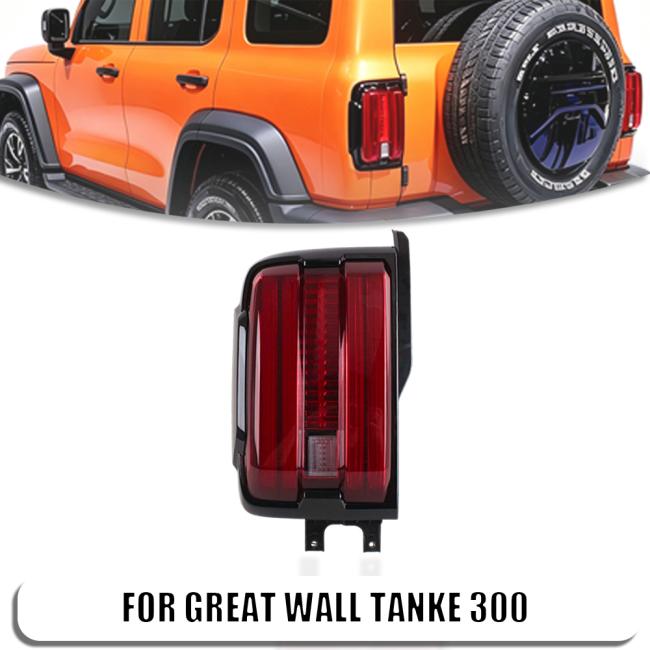

Great Wall Tank 300 Rear LED Tail Light Assembly 4133106XKM01B 4133107XKM01B Blue
Great Wall Tank 300 Rear LED Tail Light Assembly 4133106XKM01B 4133107XKM01B Blue
GWM Tank 300 rear tail lights take a beating: reverse into a post, trail brush, or a tired seal that fogs the lens. These LED assemblies use OEM 4133106XKM01B (LH) and 4133107XKM01B (RH), blue-light version, for Great Wall Tank 300 from 2021. Each lamp is a full rear cluster—red LED tail/brake plus the lower module—not a bulb swap. Fitment is the original pocket on the left and right C-pillar. No cutting the body, no extra decoder on an unmodified truck. Title and tags should keep Tank 300 tail light, rear lamp, 4133106XKM01B, and 4133107XKM01B so buyers who type the number on the old housing can find the same side again.
| Item | Value |
|---|---|
| Product Type | Vertical LED tail / brake / reverse cluster |
| OEM Number | 4133106XKM01B (left) / 4133107XKM01B (right) |
| Vehicle Fitment | GWM Tank 300 / Great Wall Tank 300, 2021– |
| Mounting Position | Rear left / rear right, factory C-pillar pocket |
| Electrical System | 12V DC (9–16V operating range) |
| Light Functions | Tail, brake, turn, reverse; blue inner lens |
| Carton Dimensions | 42 × 25 × 15 cm |
| Service Period | 1 year against manufacturing defects |
| Compliance | DOT / ECE lots on export orders |
| Housing | PC outer lens, ABS body |
| Ingress Protection | IP67 sealed lamp |
| Condition | New complete assembly, not a used take-off |
Tank 300 rear tail light pair, OEM 4133106XKM01B (LH) and 4133107XKM01B (RH). Search those numbers if you pulled a broken lamp; they are what GWM and parts catalogs use for this blue-light assembly.
LED tail and brake in the vertical bars, reverse in the lower window. It is a complete Great Wall Tank 300 rear cluster, not a bulb or a stick-on LED strip. Night braking visibility is the point of the part.
Direct fit for 2021+ Tank 300 with the original upright lamp. Left and right are not interchangeable. Do not mix this unit with Tank 400/500 lights or a later restyle that uses a different OEM.
Body is weather-sealed; the usual failure on the trail is a smashed lens or water inside, not a “weak bulb.” Replacing the whole Tank 300 taillight assembly is the clean repair.
Sold as a pair or by side. Keep 4133106XKM01B, 4133107XKM01B, Tank 300 tail light, and GWM rear lamp in the listing so a second-side order can find the same blue-lens version.
