ZH23-19-22B-6-B Circular Electrical Connector Industrial Multi Pin Plug Heavy Duty
ZH23 Series Environment-Resistant Bayonet Electrical Connector | Rugged Multi-Pin Industrial Connector | High-Reliability Circular Plug
The ZH23 series connectors are engineered for demanding industrial conditions, combining robust environmental resistance with a five-key anti-misconnection design and fast bayonet locking. Crimp-type contacts with rear-release and rear-removal structure allow easy maintenance and replacement. Optimized for low-frequency AC and DC circuits, these connectors maintain stable electrical performance under extreme temperature and vibration conditions.
Domestic Alternative Model: ZH23
Technical Specifications:
- Operating Temperature: -60°C to +200°C (peak 200°C)
- Vibration Resistance: 40g, frequency range 1–5000 Hz
- Shock Resistance: 500g single impact, 150g repeated impacts
- Designed for long-term reliability in harsh industrial environments
- Quick bayonet mechanism ensures secure and repeatable mating
Working voltage:
| Class | working voltage(v) | test volage(v) |
|---|---|---|
| A | 700 | 2100 |
| B | 500 | 1850 |
| C | 400 | 1600 |
Contact current:
| ∅1.0 | ∅1.5 | ∅2.0 |
|---|---|---|
| 11A | 20A | 35A |
contact resistance:
| ∅1.0 | ∅1.5 | ∅2.0 |
|---|---|---|
| ≤7.4mΩ | ≤2.5mΩ | ≤1.6mΩ |
- Compliance: Technical Conditions ΓEO.364.241TY, Technical Specifications Q/3E 20005-2003
- Salt Spray Resistance: 48–96 hours for extended corrosion protection
- Humidity Resistance: Reliable operation in 30°C–60°C and 92%–98% relative humidity
- Insulation Resistance: ≥5000 MΩ, maintaining excellent electrical isolation
- Mechanical and Working Life: Rated for 500 insertion/extraction cycles, designed for repeated industrial use
- Optimized for environments requiring durable, secure, and maintenance-friendly connections
Marking Description
| No. | Meaning of Code Designation | Russian designation | Chinese designation | ||
|---|---|---|---|---|---|
| 1 | model | CHU23 | ZH23 | ||
| 2 | contact number | 3丶4丶7丶10丶19丶24丶28丶32丶41丶43丶45丶55丶61 | 3丶4丶7丶10丶19丶24丶28丶32丶41丶43丶45丶55丶61 | ||
| 3 | shell size (mm) | 14丶 18丶22丶24丶27丶30丶33丶36丶39 | 14丶 18丶22丶24丶27丶30丶33丶36丶39 | ||
| 4 | contact type | B pin --male P socket--female | B P |
B pin --male P socket--female |
|
| 5 | Tail accessory and connector type code details see following pages |
1 - Receptacle with simplified rear accessory 2 - Receptacle with straight cable-clamping rear accessory 4 - Receptacle with right-angle cable-clamping rear accessory 6 - Plug with straight cable-clamping rear accessory 8 - Plug with right-angle cable-clamping rear accessory 11 - Plug with simplified rear accessory 17 - Receptacle with Type 06 shielded right-angle rear accessory (memory ring) 18 - Plug with Type 06 shielded right-angle rear accessory (memory ring) 19 - Receptacle with Type 07 shielded simplified rear accessory 20 - Plug with Type 07 shielded simplified rear accessory |
21 - Receptacle with Type 08 shielded straight cable-clamping rear accessory 22 - Plug with Type 08 shielded straight cable-clamping rear accessory 12 - Receptacle with Type 09 thermoplastic sleeve-type rear accessory 25 - Receptacle with Type 10 shielded right-angle rear accessory 13 - Plug with Type 09 thermoplastic sleeve-type rear accessory 26 - Plug with Type 10 shielded right-angle rear accessory 15 - Receptacle with Type 05 shielded straight rear accessory (memory ring) 27 - Receptacle with Type 11 shielded right-angle cable-clamping rear accessory 16 - Plug with Type 05 shielded straight rear accessory (memory ring) 28 - Plug with Type 11 shielded right-angle cable-clamping rear accessory |
||
| 6 | Key position | no-mark, standard position a丶σ 丶B丶r | no-mark, standard position a丶b 丶c丶d | ||
| 7 | Climate conditions all weather | B | |||

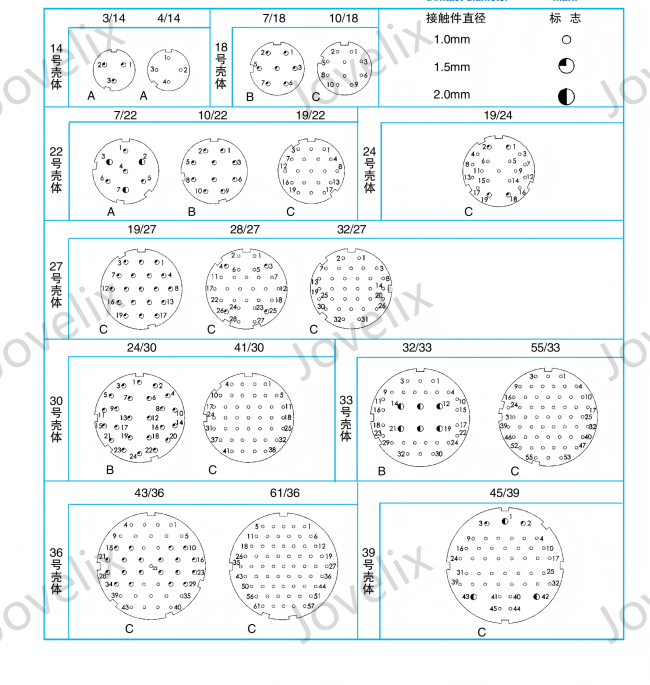

Arrangement form of insulation component (viewed from the direction of the contact end of the pin
(See Key Positions and Contact Distribution of Insulator in Clause CHU28 for details.)
