OHS-BM-1-19-12-B1-1-B Russian Connector Ultra Small Circle Electrical Connector
OHS-BM-1-19-12-B1-1-B Russian Standard Ultra-Small Circular Electrical Connector
The ОНS- EС-1(2) type electrical connector is used in DC and AC circuits.
The plug and receptacle are connected by bayonet coupling.
The plug has no rear attachment, while the receptacle is equipped with a straight plastic rear attachment.
Domestic model: OHS
- Contact resistance: ≤5mΩ
- Insulation resistance: ≥1000MΩ (under normal conditions)
- Environmental temperature: -60°C to 85°C
- Vibration: 1_5000Hz 20g
- Impact: 1000g per impact, repeated multiple times with 100g each
- Contact diameter: Æ1.0mm
- Operating current,Operating voltage:
| Shell Number | Number of contact points | Single contact Operating current (A) | Total current (A) | Operating voltage(v) |
|---|---|---|---|---|
| 10 | 4 | 3.7 | 15 | 250 |
| 12 | 7 | 3.1 | 22 | 250 |
| 14 | 10 | 3.0 | 30 | 250 |
| 18 | 19 | 2.1 | 40 | 250 |
| 22 | 32 | 1.8 | 60 | 250 |
| 27 | 50 | 1.5 | 75 | 250 |
Mechanical lifespan: 250 insertion and removal cycles
Operating time: 5,000 hours
Guarantee period: 15 years
Technical specifications: БpO.364.030TY
Arrangement of insulator hole positions

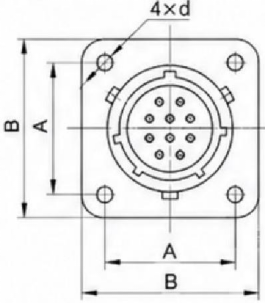

Outline and Mounting Dimensions:
Receptacle without Rear Accessory (Pin Contacts)

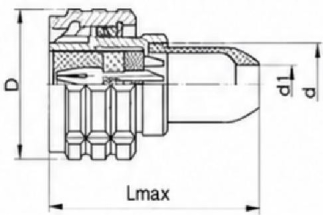

Plug with Rear Accessory (Socket Contacts)
Insert Contact Arrangement
