PM4-50-9J1B GEO Industrial Circular Connector , Heavy Duty Multi-Pin Plug, High Reliability Electrical Interconnect , Precision Cable Connector
Price:
10＄--150＄
MOQ:
10PCS
Delivery Time:
2--9 weeks
Brand:
Jovelix
Product Description
PM series bayonet quick-connect electrical connectors
Type P6M4 electrical connectors are used in AC and DC circuits and comply with Russian technical specifications ΓE0.364.196TY.
Localized model:PM4
- Ambient temperature:_60℃ ~+100℃
- Vibration:1_2000 Hz 30g
- Shock:Multiple times 40g
- Contact Resistance:Φ1.0mm≤5mΩ Φ1.5mm≤2.5mΩ Φ2.0mm≤1.6mΩ
- Working Current, Working Voltage, Insertion and Extraction Force
- Withstand Voltage: ≥1850v
- Insulation Resistance:≥1000MΩ
- Operating time: minimum 100 hours
- Mating cycles: 1000
- Warranty period: 7 years
- Technical Specification :(ΓEO.364.196TY)
- Technical Regulation :3E0 204 063JT

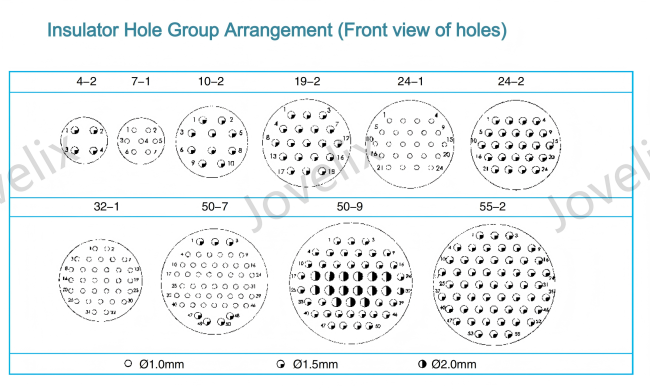

| Contact Count / Combo No. | Working Current A | Working Voltage v | Mating Force kg |
|---|---|---|---|
| 7.1 | 5.8 | 560 | 0.25 |
| 4_2 | 12.5 | ||
| 10_2 | 8.3 | 0.30 | |
| 24_1 | 4.2 | 0.35 | |
| 19_2 | 5.8 | ||
| 32_1 | 3.32 | ||
| 24_2 | 6.0 | 0.4 | |
| 50_7 | 3.6;5.1 | 560 | 0.6 |
| 50_9 | 4.5;7.0 | 700 | |
| 55_2 | 5.1 | 560 | 0.9 |
