J30-9TJWP1-J Series High Density Shielded Crimp Type Electrical Connectors
- Complies with GJB2446
- Male contacts adopt elastic stranded pins (twist-pin contacts)
- High-density contacts with a pitch of 1.27 mm
- The product uses a plastic housing, equivalent to the U.S. MD series
- Seven specifications available, ranging from 9 pins to 51 pins
- Modified rear ends are available for printed circuit board (PCB) applications
The product features high density, lightweight design, and miniaturization, enabling reliable interconnections between internal system cables, between cables and printed circuits boards (PCBs), and between PCBs themselves within the electrical circuit system.
The product can withstand harsh environments such as strong vibration and shock, and is especially suitable for applications with special requirements for space and equipment lightweighting.
The contact-to-wire connection method of the product is crimp type.
Classified into three types according to PCB grid spacing (column spacing * row spacing):
- Type N: 2.54*1.6
- Type N1: 2.54*2.54
- Type N-J: 1.27*2.54

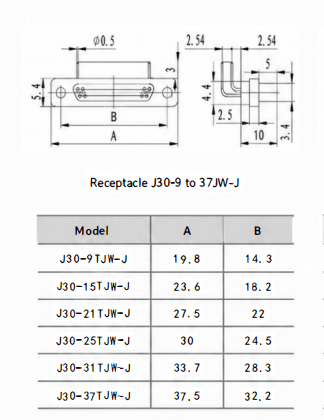

Classified into two types according to PCB grid spacing (column spacing * row spacing):
- Type W: 2.54*2.54
- Type W-J: 1.27*2.54
| Operating temperature | -55℃ to +125℃ |
| Relative humidity | up to 95% at 40℃ |
| Rated operating current | 3 A |
| Contact resistance | ≤ 10 mΩ |
| Insulation resistance | ≥ 5000 MΩ at room temperature |
| Withstand voltage | 800 V at room temperature |
| Vibration | frequency 10–2000 Hz, acceleration 196 m/s² |
| Shock |
acceleration 735 m/s², 11 ms |
| Mechanical life | 500 cycles |
