J30JB-25TJL-Q9 25Pin Straight Glass Sealed Micro Rectangular Aerospace Plug

The J30JB-nTJL-Q9 Glass-Sintered Gas-Sealed Rectangular Plug Connector is designed for sealed electrical interconnection applications requiring compact structure, reliable performance, and customized wire termination. The model format is J30JB-nTJL-Q9, where n represents the contact quantity. Standard contact options include 5, 9, 11, 13, 15, 21, 25, 31, and 37 contacts.

This connector supports wire cross-sectional areas from 0.1 mm² to 0.15 mm², and the wire length can be customized according to customer installation requirements. To ensure accurate product selection and production, the wire specification must be included in the part number, including wire size, wire color, and wire length.

For example, J30JB-9TJL-Q9(0.12 White L300) indicates a 9-contact plug assembled with 0.12 mm² white wires and a 300 mm wire length. If the application requires special wiring arrangements, customized colors, different wire lengths, or non-standard cable routing, corresponding technical documents should be provided for confirmation before manufacturing.

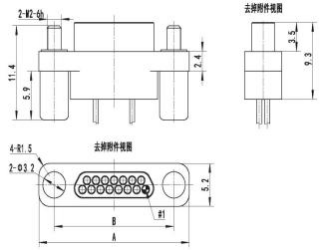

This product is suitable for sealed modules, precision electronic equipment, compact electrical systems, and applications requiring reliable customized wiring solutions. Overall dimensions should be confirmed according to the product drawing or dimensional reference.
