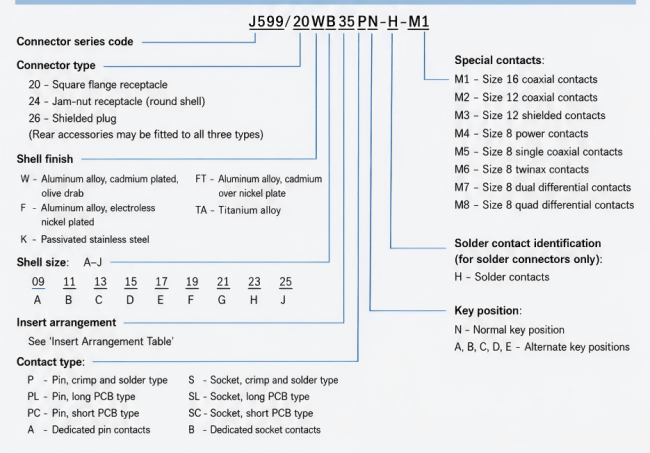

MIL-DTL-38999 Series III 26WB98SN IP67 Circular Connectors 98 Socket Contacts Receptacle
Price:
10＄--500＄
MOQ:
10PCS
Delivery Time:
2--9 weeks
Brand:
Jovelix
Product Description
Compact Lightweight High-Density Series III Connector
The connector combines compact size, low weight, and high contact density in a rugged circular design. It is suitable for systems where space saving, weight reduction, and reliable signal connection are essential. The removable crimp contact design simplifies assembly and maintenance, while the anti-oblique insertion structure helps prevent incorrect contact installation and improves mating reliability.
Contact resistance and rated current of the contact parts:
| Contact Specifications | Working diameter mm | Contact resistance m Ω | Rated current A |
|---|---|---|---|
| 22D | Φ0.76 | ≤12 | 5 |
| 20# | Φ1.00 | ≤5 | 7.5 |
| 16# | Φ1.60 | ≤2.5 | 13 |
| 12# | Φ2.40 | ≤1.5 | 23 |
| 10# | Φ3.15 | ≤1.0 | 40 |
