27508E10B35P Circular Connector, MIL-DTL-38999 Series, Square Flange Receptacle, 35 Contacts

The lightweight electrical connector is designed for reliable circuit signal connection in electronic systems that require compact size, low weight, and stable electrical performance. It is suitable for applications not exposed to high-intensity vibration or severe wind, sand, and moisture conditions.

The connector features aluminum alloy or stainless-steel shell options, with surface treatments including Class B cadmium-plated mili-tary green, Class E stainless steel passivation, and Class F chemical nickel plating. The contacts are made of gold-plated copper alloy and can be used for crimp, solder, or PCB termination.

With 500 mating cycles, random vibration performance from 100–1000 Hz at 1 g²/Hz, 300g half-sine shock resistance, operating temperature up to +200°C, and working altitude up to 30,480 m, this connector is suitable for lightweight signal interconnection applications.

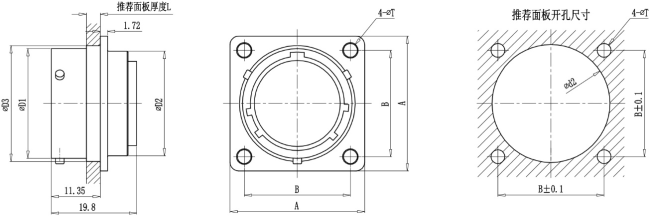

JY27508 Box-shaped square plate with rear-mounted socket
