HJ30J-12ZKNP5 Micro Rectangular Electrical Connector 12 Contact 1.27mm Pitch

• Semale elastic contacts use resilient twist-pin contacts
• High-density contacts,1.27 mm*1.27 mm spacing
• Product adopts a metal shielding shell
• Available in 7 sizes from 12 to 100 contacts

1. Series main code:HJ30J
2. Number of contacts:12,18,24,30,36,55,100
3. Connector type:ZK=receptacle with socket contacts;TJ=plug with pin contacts.
4. Contact termination form:
   • No code—crimp type
   • N—straight PCB type,PCB grid spacing 1.27*1.27
   • NB—surface-mount type
   • W—right-angle PCB type,PCB grid spacing 1.27*1.27
5. Locking and mounting component type:
   • See the product locking component types and instructions in this manual.Products without locking components are indicated by the letter "Y".
6. Modified product code:
   • A—tailwith Type A accessory J—PCB pad pitch 1.27 mm(surface-mount products only)
7. Wire requirements:
   • Includes wire length and external protection.See ordering model instructions for wire-harness products.(For crimp-wired products .(For crimp-wired products only.)

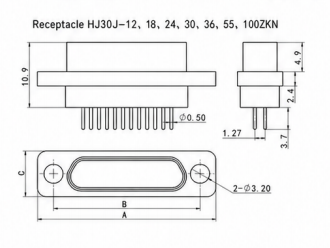

HJ30J-ZKN SeriesProducts

HJ30J-12ZKN
