J14A-9TJ Rectangular Electrical Connector 9 Contact Solder Cup 0.6mm
Price:
10＄--150＄
MOQ:
10PCS
Delivery Time:
2--9 weeks
Brand:
Jovelix
Product Description
J14A Series Rectangular Electrical Connectors
Product Introduction
- Low-frequency electrical connector
- Double-safety locking mechanism,combining quick operation and reliable connection locking in rectangular electrica connectors
- Rounded-corner anti-mismating design,compact size,and light weight
- When the termination is solder-cup type,the wire hole diameter is Q0.6 mm.The recommended conductor cross-sectional area is 0.15mm²and should not exceed 0.2 mm²;when the termination is solder-post type,the pin diameter is Q0.6-00.7 mm
- This series is available in a complete range of specifications,including pin and socket plugs pin and socket panel receptacles,and pin and socket cable receptacles;when the termination is solder-post type,both straight PCB-mount and 90°right-angle PCB-mount versions are available
Applications:
Suitable for electrical signal connections among various electronic instruments,meters,and cables

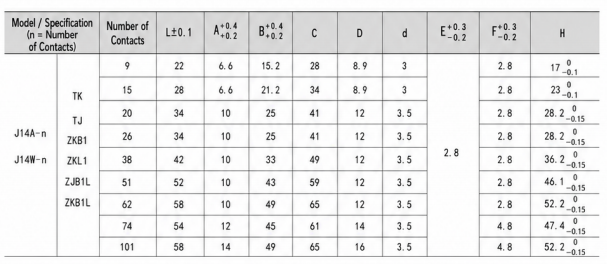

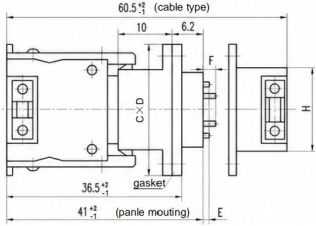

Model Designation
Contact Arrangement(Receptacle Mating Face View)
