J14A-9ZKB Rectangular Electrical Connector 9 Contact Dual Locking 0.6mm Wire Hole

J14A Series Rectangular Electrical Connectors are compact low-frequency connectors for signal transmission between electronic devices and cables. They adopt a dual locking structure for fast mating and reliable connection security.

The rounded-corner structure provides anti-mismating protection, while the small and lightweight design supports installation in compact equipment.

For solder-cup type, the wire hole is Φ0.6 mm, with a recommended conductor area of 0.15 mm² and a maximum of 0.2 mm². For solder-post type, the pin diameter is Φ0.6–0.7 mm.

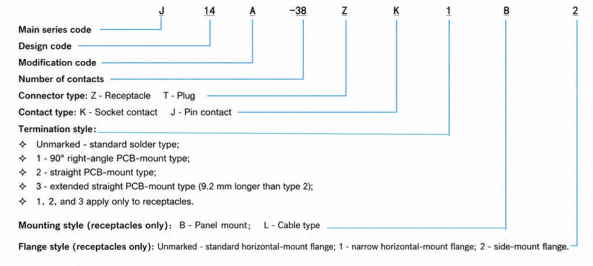

The J14A series offers pin/socket plugs, panel receptacles, and cable receptacles. Straight and 90° right-angle PCB-mount versions are available for solder-post termination.

Applications:
Suitable for signal connections among instruments, meters, cables, and electronic control systems.
