High-speed QS-D-C 350 400 Delta Robot for High-precision and Heavy-duty Domain

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: Negotiable

Brand: Qiaoshou

Product Description

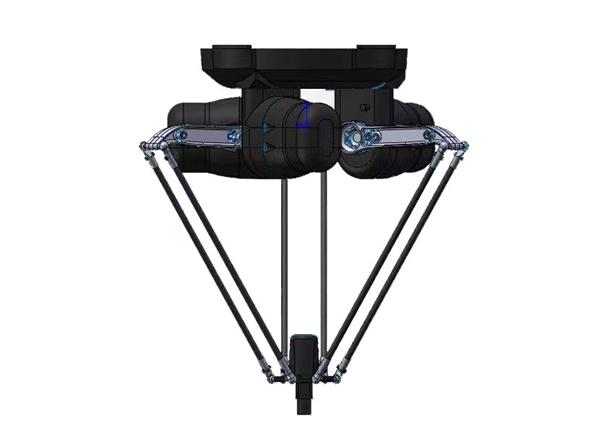

QS-D-C 350 400 Delta Robot

High Speed High Precision Fast Dynamic Response High Stiffness

Introduction

Classic high-speed delta robot configuration featuring translational movement along the XYZ axes in three-dimensional space. This robot is ideal for high-speed production operations in industries such as food and medicines, primarily used for rapid handling and sorting of light,small, scattered material,etc..

Model	Number of Axes	Rated load	Working stroke range	Repeated position precision
OS-D-A-350	3/4	1.5KG	350	±0.1mm
OS-D-A-400	3/4	1.5KG	400	±0.1mm

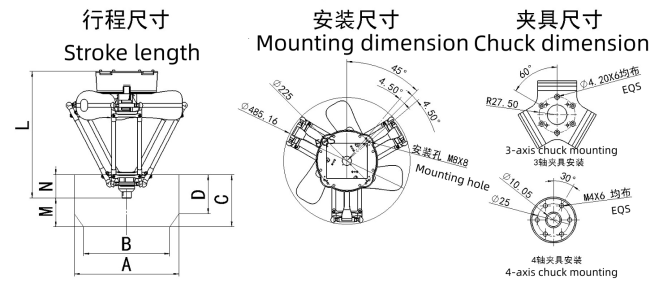

Working stroke range		OY-D-S-350	OY-D-S-400
	L	484	541
	M	86	99
	N	70	81
	A	380	430
	B	330	380
	C	156	180
	D	109	126

Positional repeatability	±0.1mm				±0.1mm
Driving motor type	Servo motor
Different load(KG) Cycle time(25/300/25)	0.25	0.5	0.75	1	0.2	0.4	0.6	0.8
	0.35	0.4	0.45	0.5	0.35	0.4	0.45	0.5
Total power/Voltage	1.2KW(3 axes),1.25KW(4 axes) / 220V Single phase
Working weight of Whole machine	15KG
IP grade	IP54

Charactericteristics

Standard cycle time of 0.6 seconds, meeting demands for high speed and most ecomomical demand
Easy to fulfil high-strength & high-frequency movement requirement
Highly suitable for fast assembly, handling and sorting of light,small, scattered material,etc..
Compact structure, high rigidity and high load capacity. The perfectly symmetric parallel mechanism has good isotropy. Small workspace.
