Single Tube Monopole Communication Tower Custom Wall Thickness Galvanized Steel 5G Antenna Support Monopole Tower
一,Product Overview
Our monopole tower, also known as single tube communication tower, is a self-supporting tapered tubular steel structure specially designed for 4G/5G base station signal coverage. Adopted high-strength Q355B carbon steel and full hot dip galvanized anti-corrosion treatment, it features small floor space, elegant streamline appearance and strong wind resistance performance, widely applied in urban communities, scenic spots, coastal areas, roads and monitoring projects.
Different from traditional lattice angle steel towers, the integrated single-pole design greatly reduces land occupation and construction cost, supporting multi-layer antenna brackets, lightning protection system and maintenance ladder, fully meeting global telecom network construction demands.
二,Core Raw Material & Surface Treatment
- Main Material: Q355B / Q235B high strength seamless round steel tube, wall thickness customizable from 6mm to 20mm, stable mechanical property, strong torsion & compression resistance
- Anti-corrosion Technology: Whole tower hot dip galvanized in line with ISO1461 standard, galvanized layer thickness ≥86μm, pass 5000h salt spray test, 25–30 years maintenance-free outdoor service life
- Optional Surface Color: Natural silver grey galvanized finish; customizable powder coating in black, dark grey, blue, red-white warning color for landscape matching
- Welding Craft: Automatic submerged arc welding, smooth and tight weld seam, CNC precise cutting to control dimension tolerance
![]()
![]()
-
Key attributes
Type Telecommunication Tower Surface Treatment Hot Dip Galvanizing Brand Name Kaijie Product name Monopole tower Place of Origin Hebei, China Material Q235/Q355/customized Height 10M-60M Wind Speed 10-180 KM/H Service life more than 30 years Delivery time with in 30days 三,Structural & Performance Advantages
- Compact Tapered Design: Bottom large, top small conical tube, stable gravity center, only 1/3 floor space of lattice tower, perfect for dense urban land-limited sites

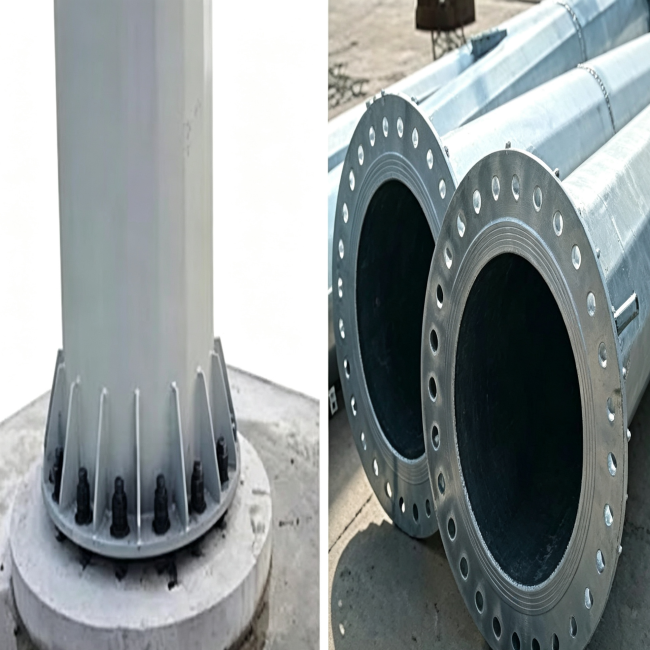

- Flexible Flange Connection: Factory prefabricated segments connected by high-strength bolt flanges, easy on-site assembly, complete installation within 1–2 working days without large hoisting equipment
- Super Wind & Seismic Resistance: Custom design withstand 12-level typhoon, anti-seismic grade 8; support customized snow load reinforcement for cold heavy snow regions
- Large Bearing Capacity: Multi-layer detachable antenna support brackets, can mount 8–12 sets communication antennas, microwave equipment, monitoring cameras and street lights simultaneously
- Complete Safety Configuration: Equipped with safety climbing ladder, top working platform, integrated lightning rod & full grounding system (ground resistance ≤4Ω)
- Customized Height Range: Standard height 10m–60m, special 5m–10m mini monitoring monopole & over 60m high tower available per client drawing
四,Wide Application Scenarios
- Telecommunication Industry: 4G/5G cellular base station, mobile signal repeater, microwave transmission, WiFi coverage tower

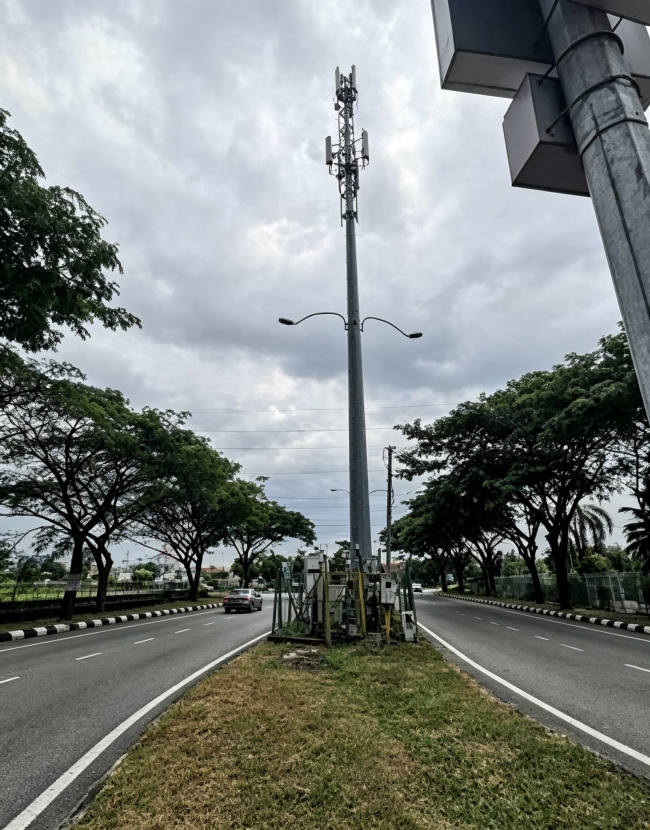

- Monitoring & Traffic: Highway monitoring pole, community security surveillance, road integrated lighting & signal monopole
- Landscape & Tourism: Scenic area camouflage communication tower, urban landscape signal pole with decorative coating

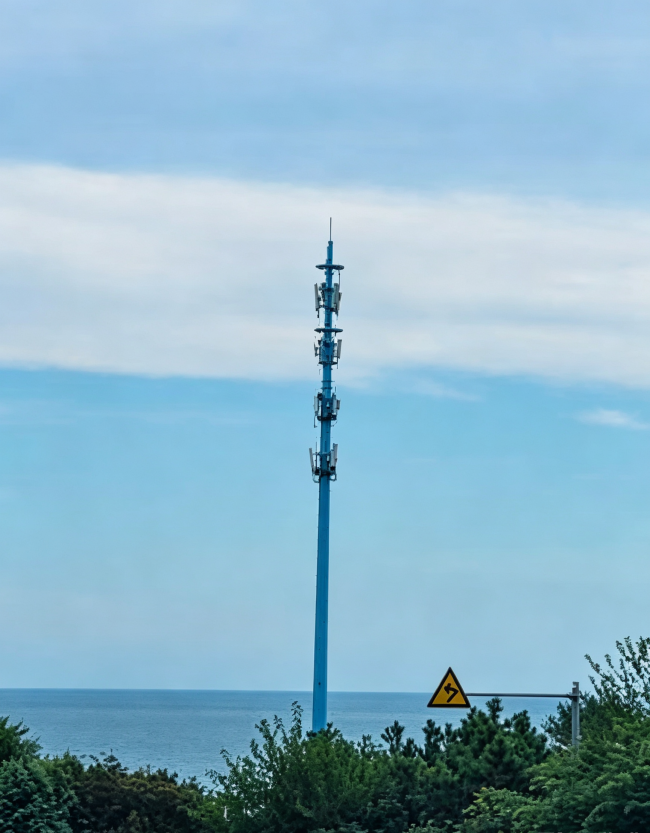

- Special Environment: Coastal anti-salt spray communication tower, meteorological monitoring equipment support, wind power small signal mast
- Municipal Engineering: Airport warning monopole, park lighting integrated signal tower
![]()
![]()

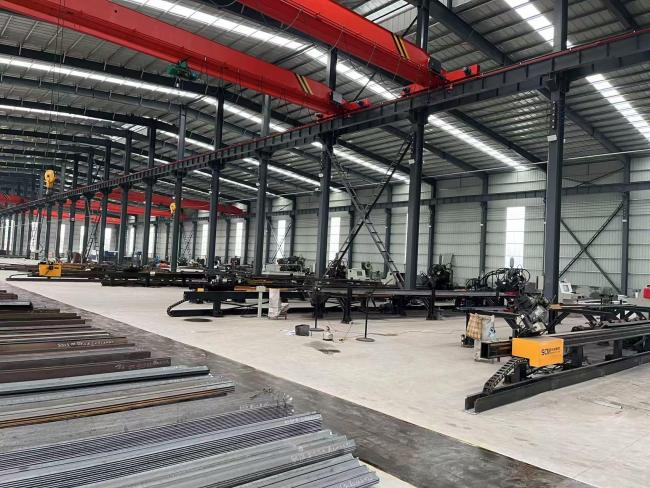

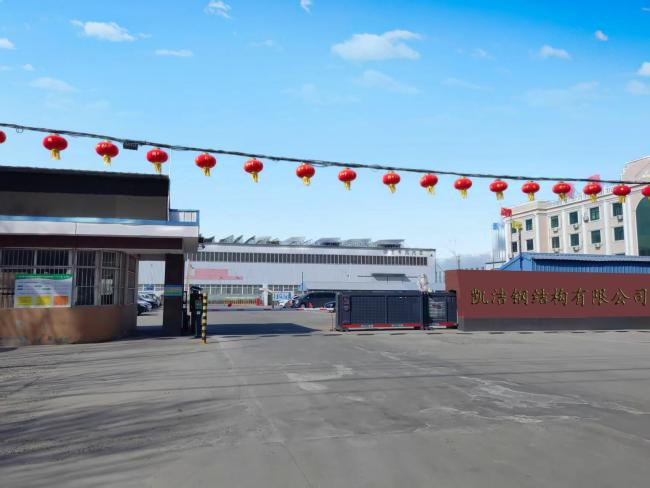

Company Strength & Factory Display
We are a professional manufacturer of communication towers with more than 10 years of R&D, production and export experience. Our factory is located in Hengshui, Hebei, China, with a complete production line including laser cutting, cold bending forming, hot-dip galvanizing and other processes, with an annual production capacity of more than 10,000 tons.Our products have passed ISO 9001, ISO 14001 and other international certifications, and have been exported to more than 30 countries and regions such as Southeast Asia, the Middle East, Africa and South America. We can provide complete export qualifications (customs declaration materials, certificate of origin, inspection report) and support OEM/ODM cooperation.
![]()
![]()
Inquiry Guidance
We welcome your inquiry! Please tell us your required height, material, wind speed, application scenario and other requirements, and we will provide you with a customized solution and competitive quotation within 24 hours. Customization is available to meet your specific project needs.FAQ:
Q1: What is the brand name and place of origin of the Telecom Tower?
A1: The Telecom Tower is branded under Kaijie and is manufactured in Hebei, China.
Q2: What certifications does the Kaijie Telecom Tower have?
A2: Our Telecom Towers are certified with ISO9001 and ISO14001, ensuring high quality and environmental management standards.
Q3: What is the minimum order quantity and price range for the Telecom Tower?
A3: The minimum order quantity is 5 tons. The price ranges from USD 900 to 1500 per ton, depending on specifications and order volume.
Q4: How is the Telecom Tower packaged for shipping?
A4: The steel components are bundled by steel strips and wrapped with anti-rust film, while fasteners are packed in wooden cases. This packaging is suitable for sea freight.
Q5: What are the delivery times and payment terms for the Kaijie Telecom Tower?
A5: Sample orders typically take 7 to 15 days for delivery, while bulk orders require 30 to 45 days. Payment terms are T/T with 30% deposit and 70% against B/L copy, or L/C at sight.
