Me092200 Me091583 Mitsubishi Head Gasket Cylinder Fit For 8DC9 8DC9t
Me092200 Me091583 Fit for Mitsubishi 8DC9 8DC9t Cylinder Head Gasket
1. Quick Notice
Confirm your engine code (8DC9 or 8DC9T) before ordering. Both ME092200 and ME091583 are valid cross-reference numbers for this cylinder head gasket. Verify your original part number. Professional installation required. Always replace head bolts with new units when installing a new gasket.
2. Description

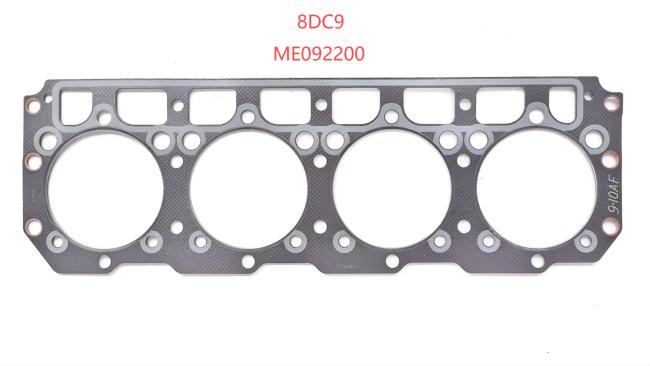

The ME092200 / ME091583 cylinder head gasket seals the interface between cylinder block and cylinder head on the Mitsubishi 8DC9 naturally aspirated and 8DC9T turbocharged V8 diesel engines. Constructed from high-performance graphite composite with Teflon coating. This gasket withstands extreme combustion pressure exceeding 500 psi and temperatures from -40°C to 1200°C. Direct fit for Mitsubishi 8DC9 series engines including 8DC9, 8DC9T, and 8DC9-2A variants. Compatible vehicles include Mitsubishi Fuso trucks FP215, FV215, and The Great heavy-duty models (1983–2001). Cross-reference numbers include ME029000 and 31201-32100. Common failure symptoms include external coolant seepage at the head joint, persistent overheating, white exhaust smoke, and compression loss from combustion gas leakage between cylinders. Replacement restores factory sealing integrity and prevents cross-contamination of engine fluids.
3. Parameters Table
| Parameter | Specification |
|---|---|
| OEM Numbers | ME092200, ME091583 |
| Alternate Numbers | ME029000, 31201-32100 |
| Product Type | Cylinder Head Gasket |
| Engine Fitment | Mitsubishi 8DC9, 8DC9T, 8DC9-2A |
| Displacement | 16.03L / 16,031cc |
| Configuration | V8 diesel |
| Bore x Stroke | 135mm x 140mm |
| Material | Graphite composite with Teflon coating |
| Thickness | 1.2–1.5 mm |
| Temperature Range | -40°C to 1200°C |
| Vehicle Fitment | Fuso FP215, FV215, The Great (1983-2001) |
| Included Items | Gasket only (no head bolts, no seals) |
4. Custom Content
Surface Preparation: Both the cylinder head and engine block must be perfectly clean before installation. Remove all old gasket material using a plastic scraper. Do not use abrasive discs or wire brushes on sealing surfaces.
Gasket Orientation: Install with the part number facing upward. The gasket must be placed correctly on each cylinder bank. Refer to engine service manual for orientation marks.
Torque Specifications: Tighten cylinder head bolts in the specified sequence using multiple stages. Final torque values vary by engine variant. Replace all head bolts with new units.
Thermal Expansion: The graphite composite material adapts to thermal expansion, maintaining consistent sealing across extreme temperature fluctuations. Outperforms rigid gasket alternatives in high-stress diesel environments.
5. FAQ
Q1: Are ME092200 and ME091583 the same gasket?
A1: Yes. Both part numbers reference the same cylinder head gasket and are fully interchangeable for the 8DC9 and 8DC9T engines.Q2: Which Mitsubishi engines use this gasket?
A2: This gasket fits Mitsubishi 8DC9 naturally aspirated, 8DC9T turbocharged, and 8DC9-2A variant V8 diesel engines (16.03L displacement).Q3: Which trucks use the 8DC9 engine?
A3: The 8DC9 and 8DC9T engines are found in Mitsubishi Fuso FP215, FV215 trucks, and The Great heavy-duty models produced between 1983 and 2001.Q4: How do I test for a failed head gasket?
A4: Common symptoms include persistent engine overheating, white exhaust smoke, coolant loss without external leaks, milky oil, and bubbles in the radiator overflow tank.Q5: Do I need new head bolts for installation?
A5: Yes. Always replace head bolts with new units when installing a cylinder head gasket. Old bolts have permanent stretch and may not achieve correct clamp load.
