Auto Alignment Smart Home Cinema Projector Dual Band WiFi6 BT5.0 Native 1080P
Smart Home Projector Auto Alignment Dual Band WiFi6 BT5.0 Native 1080P Home Cinema
Description:
- C4 smart projector adopts advanced LCD+LED optical system, tailored for home cinema, business meetings & classroom teaching
- Multi-scene usability: daily home movie nights, office presentations, offline tutoring & portable outdoor projection
- 1200 lumens brightness, true native 1080P resolution & standard 16:9 ratio for lossless full-frame projection
- Android TV OS with 2GB RAM + 32GB storage, delivers smooth performance and supports unlimited app installation
- All-in-one intelligent auto functions: auto focus, auto trapezoid correction, 4-point correction, obstacle avoidance, auto rotation & screen fit for one-click setup
- Full-range interfaces (HDMI, RJ45 LAN, USB, SPDIF fiber audio, 3.5mm audio jack) to connect all peripheral devices
Quick informations:
| Name | C4 |
| Brightness | 1200 Lumens |
| Speaker | 5W * 1 |
| Power | 130W |
| AC-IN | AC 100V-240V |
| Color | Black |
| Weight | 1.9kg |
| Size | 247*253*96mm |
Features:
- All-in-one auto image tuning drastically cuts manual adjustment difficulty for new users
- Motorized focus + full-frame digital zoom allows easy projection size adjustment without moving the unit
- Built-in 5W speaker delivers independent stereo sound, no extra audio equipment needed
- Dual-band 2.4G/5G Wi-Fi 6 + Bluetooth 5.0, stable wireless casting compatible with iOS, Android & Windows
- Operation noise below 30dB for quiet, undisturbed viewing
- 30,000+ hour LED light source, ultra-long lifespan lowers long-term maintenance costs
- Globally certified: ISO9001, 3C, CE, WEEE, RoHS, FCC, fully compliant with international safety standards
- Rich I/O ports support desktops, game consoles, set-top boxes and wired network access
Parameter Table
| Intelligent Auto Focus System | Eletric Focus Adjust, Auto Focus, Auto Keystone, Four-point Keystone, Auto Obstacle Avoidance, Auto Rotation Correction, Auto Screen Alignment, Full Frame Digital Zooming | |
| Memory | RAM | 2GB |
| ROM | 32GB | |
| Light Source | LED | |
| Display Technology | LCD | |
| Throw Ratio | 1.25:1 | |
| Contrast Ratio | 1000:1 | |
| Light Source Life | 30000H+ | |
| Screen Scale | 16:9 | |
| Noise Level | <30db | |
| WIFI | 2.4G+5G Dual bands WiFi 6 | |
| Bluetooth | BT 5.0 | |
| Input/Output |
DC Power*1,SPDIF*1,Jack*1,USB*1,Charging port*1,HDMI*1,RJ45*1 |
|
| OS | Smart Android TV | |
| Wireless Screen Mirroring | Yes(IOS/Android/Win) | |
| Native Resolution | 1920*1080P | |
| Certification | CE,RoHS,KC,FCC,WEEE,ISO9001 | |
| Projector Size | 247*253*96mm | |
| Weight | 1.9kg | |
Projection Distance
| Screen Size (inch) | Screen Area W*H (m) | Distance (m) |
| 42 | 0.93 × 0.53 | 1.17 |
| 56 | 1.33 × 0.75 | 1.65 |
| 66 | 1.55 × 0.87 | 1.92 |
| 86 | 1.86 × 1.05 | 2.31 |
| 100 | 2.21 × 1.25 | 2.75 |
| 120 | 2.66 × 1.49 | 3.28 |
| 150 | 3.32 × 1.87 | 4.11 |
* The projection size and distance data in the table above is based on the throw ratio. Actual results may vary, so please use this only as a reference.

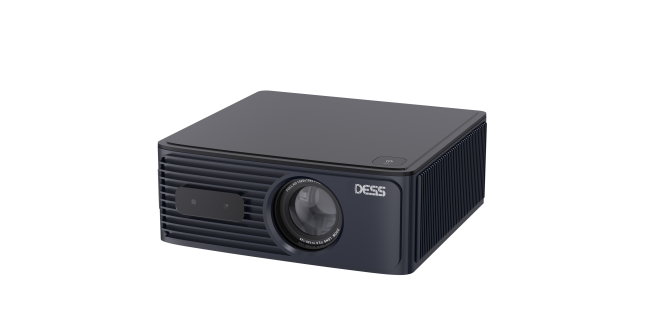

Product Photo:
Product Interface:
Remote Operation:
Notices:
- Do not look directly into the laser aperture; intense laser radiation may cause permanent eye damage.
- Keep the unit away from hot airflow to prevent high-temperature damage to internal components.
- Maintain clearance around the device and never block ventilation vents to avoid overheating risks.
- Store all beverages and liquids far from the projector to avert short circuits caused by spills.
- Prevent dust and tiny metal debris from infiltrating the machine’s interior.
- If foreign objects fall into the device, cut off power immediately and contact professional maintenance technicians.
- Do not operate the projector in rainy or humid environments to avoid internal rust formation.
- Wrap the device with soft foam padding for long-distance transportation to cushion against collision and vibration.
- Gently wipe smudges off the lens using lint-free cloth dampened with 75% medical alcohol.
- The rear exhaust vent reaches high temperatures after prolonged operation; avoid physical contact to prevent thermal burns.
- Unauthorized disassembly is prohibited. Contact official after-sales service for any equipment malfunctions.
OEM/ODM Service:
We provide full-range personalized customization services: logo imprint on projector shell, brand marking on remote controls, custom packaging design, exclusive startup screen, and customized system parameter configuration as requested.
Our technical team reviews all design drafts and manufactures pre-production samples for your formal approval prior to mass production.
For large-volume bulk orders, we offer full-process turnkey solutions covering design development through finished product assembly.
We will formulate exclusive cooperation schemes and matching quotations tailored to your specific procurement demands.
