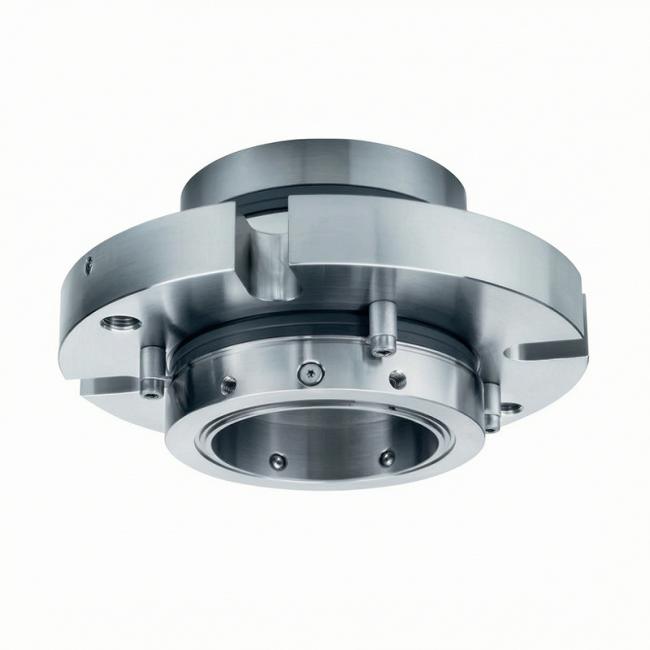

ANSI Stationary Depac Seal SSIC 100mm Single Mechanical Seal Pump
Mechanical seals
cartridges
ANSI mechanical seals

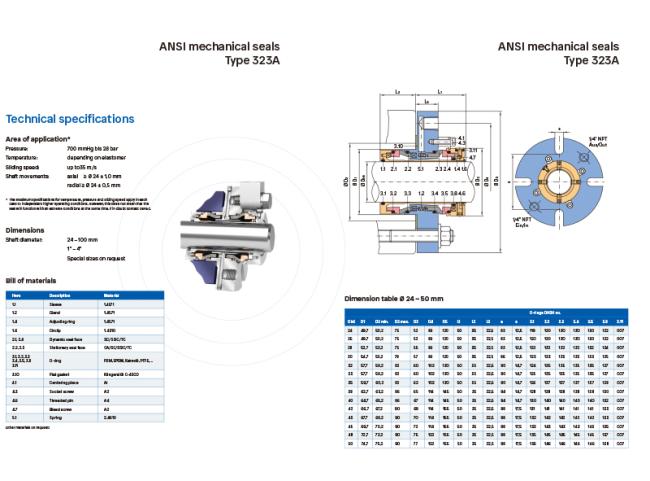

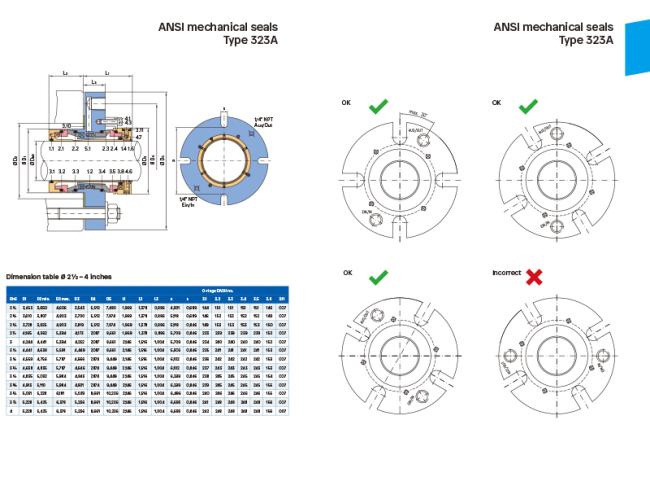

The type 323 ANSI is a stationary double mechanical seal.
The type 323 was developed for the large, so-called "big bore" seal chambers of the ANSI.
The barrier space of the mechanical seal is equipped with a patented pump construction - with diversion of barrier fluid via the inner and outer faces.
- Double balanced: Full pressurisation is possible on pump side and barrier side
- Self-closing in case of pressure reversal
- Tandem active double mechanical seal
- Independent of the direction of rotation
- Shock and vibration-dampend faces
- Barrier fluid diversion via inner and outer faces
| Range of application* | |
| Pressure | 700 mm Hg - 28 bar |
| Temp. | Elastomer dependent |
| Sliding velocity | up to 35 m/s |
| Shaft movements | axial ≥ Ø 24 +/- 1,0 mm |
| radial ≥ Ø 24 +/- 0,5 mm | |

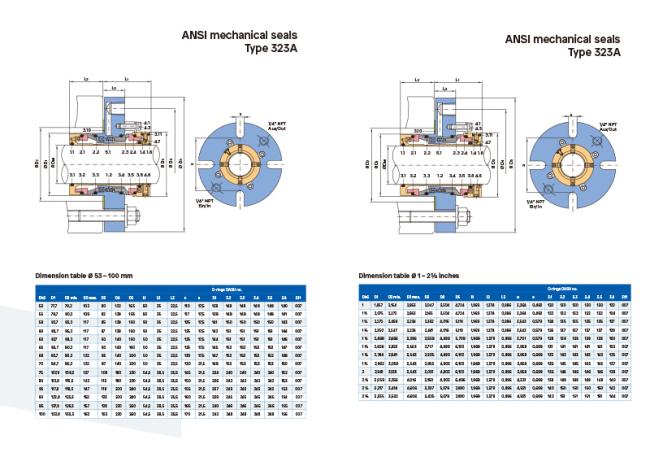

| Sizes | |
| Dshaft | 24 - 100 mm |
| 1“ - 4“ | |
| Special sizes available on request | |
| Materials | |
| Metals | DIN 1.4571 / 316 SS |
| Springs | Hast. C |
| Faces | CA, SC, SSIC, TC |
| O-Rings | FKM, EPDM, PTFE, FEP Umm., Chemraz, Kalrez, Aflas, etc. |
Other sizes, materials or design variations upon request.* Maximum temperature / pressure / speed indicates operating extremes independently and does not imply the seal will function at these extremes at the same time. Contact BESTSEAL if in doubt.
BESTSEAL — Your Reliable Partner for Mechanical Seals
| BESTSEAL Advantage: | |
|---|---|
| 15 years | Focused in mechanical seal manufacturing |
| 3 hours | Quotation response only takes 3 hours |
| 1 day | Provide production assembly drawings |
| 1 piece | MOQ, One piece can also be produced |
| 15-20 working days | The production cycle only takes 15-20 working days |
| real-time | Real time synchronization of production progress |
BESTSEAL ANSI mechanical seals
Your Fast-Track Alternative to DEPAC Type 323 ANSI
Custom ANSI mechanical seals — From Drawing to Delivery in 15–20 Working Days
