API Single Cartridge DEPAC Mechanical Seal Stationary Face For Petroleum Industry
Mechanical seals
cartridges
API mechanical seals

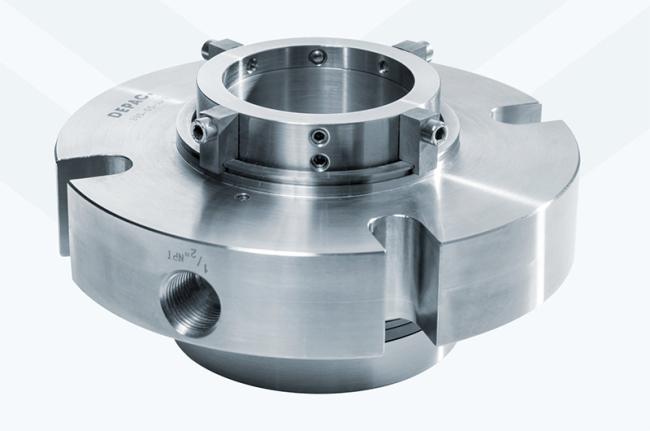

The type 380 is a stationary single-cartridge seal.
The mechanical seal was specially optimised to meet the requirements of the petroleum industry.
The type 380 is equipped with a so-called "floating" safety seal.
As a result, this mechanical seal is also recommended for extreme boundary conditions - from water and highly volatile hydrocarbons to acids and alkalis.
- Cartridge-mounted
- Stationary design principle
- Balanced
- "Floating" safety seal
- Independent of the direction of rotation
- Shock and vibration-dampend faces
- Springs outside the medium
| Range of application | |
|---|---|
| Pressure | 700 mm Hg - 28 bar |
| Temp. | depending on Elastomer |
| Speed | 35 m/sec. |
| Materials | |
| Dshaft | 20 - 110 mm |
| 7/8“ - 4 ¼“ | |
| Materials | |
| Metals | DIN 1.4571 / 316 SS |
| Springs | Hast. C |
| Faces | CA, SC, SSIC, TC (Ni) |
| O-Rings | FKM, EPDM, PTFE, FEP Umm., Chemraz, Kalrez, Aflas, etc. |
| Alternatives | |
| Membrane (bellows) | Hast. C |
| Rolled bellows | Hast. C, Incolloy |
Other sizes, materials or design variations upon request.
BESTSEAL — Your Reliable Partner for Mechanical Seals
| BESTSEAL Advantage: | |
|---|---|
| 15 years | Focused in mechanical seal manufacturing |
| 3 hours | Quotation response only takes 3 hours |
| 1 day | Provide production assembly drawings |
| 1 piece | MOQ, One piece can also be produced |
| 15-20 working days | The production cycle only takes 15-20 working days |
| real-time | Real time synchronization of production progress |
BESTSEAL API mechanical seals
Your Fast-Track Alternative to DEPAC Type 380
Custom API mechanical seals — From Drawing to Delivery in 15–20 Working Days
