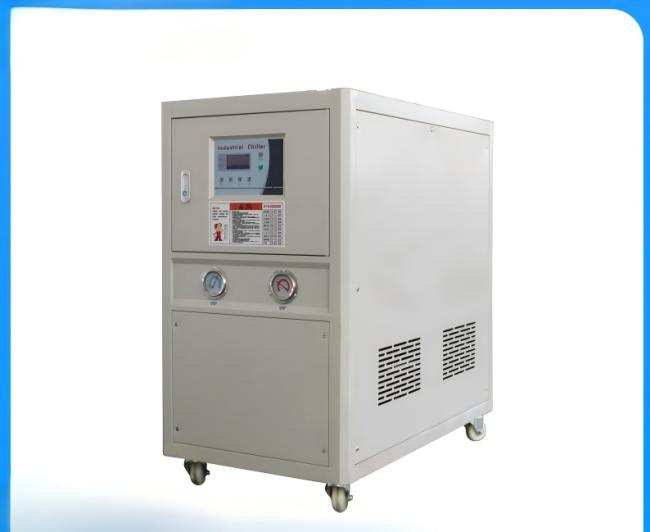

Indoor 5 Hp Water Chiller 5 Ton For Laboratory Constant Cooling ODM
Indoor Installation Water Cooled Chiller Low Noise Stable Operation For Laboratory Constant Cooling
Maximize your factory cooling efficiency with our water-cooled industrial chiller equipped with upgraded high-efficiency shell & tube condensers, which dissipate heat faster and run stably 24/7 without performance decay. The smart microprocessor control system supports micro-level chilled water temperature tuning to guarantee consistent product yield for high-standard industrial workflows. Compact integrated design paired with low-vibration reliable compressors reduces installation space and extends equipment service cycle. Widely deployed for injection molding, electroplating, chemical reaction, pharmaceutical production and mechanical processing. Add-on Modbus communication function supports remote online monitoring and centralized group control to slash your on-site management labor costs.
| Parameter | Model | HLS-20W | HLS-25W | HLS-30W | HLS-36W | HLS-40W | HLS-45W | HLS-50W | HLS-60W |
| Cooling capacity | KW 50HZ/60HZ |
67.14 78.56 |
81.53 95.39 |
99.91 116.05 |
118.8 140.5 |
129.06 151.00 |
148.5 175.2 |
165195 | 196230 |
Running current |
A | 42.1 | 48.5 | 58.3 | 64 | 75.4 | 82.3 | 90.5 | 110 |
| Power Supply | Volt | 3P-380/415V-50/60HZ | |||||||
| Refrigerant | Name | R22 | |||||||
| Fill (kg) |
2.8*4 | 6.3*2 | 5.6*3 | 7.2*3 | 5.6*4 | 9*3 | 7.5*4 | 7.2*5 | |
| Control Method | Thermal expansion valve | ||||||||
| Compressor | Type | Hermetic scroll | |||||||
| Power (KW) |
3.75*4 | 9.4*2 | 7.5*3 | 9*3 | 7.5*4 | 11.25*3 | 9.37*4 | 9*5 | |
| Cooling water |
water flow m³/h |
14.44 | 17.54 | 21.32 | 24.12 | 27.74 | 30.15 | 33.5 | 40.2 |
| Pipe diameter | 2" | 2-1/2" | 2-1/2" | 2-1/2" | 3" | 3" | 3" | 3" | |
| Chilled Water | water flow m³/h |
11.55 | 14.03 | 17.06 | 19.5 | 22.19 | 24.75 | 27.5 | 33 |
| water tank (L) |
80 | 80 | 100 | 200 | 200 | 250 | 400 | 500 | |
| Pipe diameter | 2" | 2-1/2" | 2-1/2" | 2-1/2" | 3" | 3" | 3" | 3" | |
| Waterpump | Power (KW) |
2.2 | 2.2 | 3 | 3.75 | 3.75 | 3.75 | 3.75 | 3.75 |
| Pressure(Mpa) | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | |
| Dimension | Length (mm) |
2080 | 2080 | 2080 | 2180 | 2180 | 2180 | 2080 | 2180 |
| Width (mm) |
800 | 830 | 8300 | 8800 | 880 | 880 | 1550 | 1550 | |
| Height (mm) |
1460 | 1460 | 1500 | 1500 | 1500 | 1600 | 1460 | 1460 | |
| Weight | kg |
440 |
620 |
690 |
740 |
850 |
1100 |
1450 |
1880 |
