In-row Precision Cooling Unit 600mm Cabinet Width, Constant Temp & Humidity for Micro Module Data Center
Price:
$3000~$8000
MOQ:
1
Delivery Time:
5-8 weeks
Brand:
Hailos
Product Description
Product Introduction
This high-compatibility in-row precision air conditioner is ideal for data center upgrades and old room renovations. It fits standard server racks perfectly for side-by-side installation, requiring no air duct modification, ground construction or cabinet layout adjustment. Featuring plug-and-play deployment and an integrated compact structure, it saves机房 space and shortens project cycles. Supporting parallel installation and N+1 redundant backup, it allows flexible, on-demand capacity expansion to match growing IT and computing power demands, delivering low-cost and lossless computer room upgrading.
Application:
Old IDC renovation, communication room upgrade, modular data centers, expandable server rooms
Technical Parameters
| Model | LXXAW | L12 | L25 | L35 | L40 | ||
| Cooling capacity |
Capacity | KW | 12.5 | 25.2 | 38.2 | 42.5 | |
| Sensible cooling caacit |
KW | 12.5 | 25.2 | 38.2 | 42.5 | ||
| Sensibleheat | 1 | 1 | 1 | 1 | |||
| factor compressor |
Variablefrequency rotor compressor | Variablefrequencyvortex compressor | |||||
| Compressor | Fan type | EC axial / EC centrifugal | EC axial / EC centrifugal | EC centrifugal | EC centrifugal | ||
| Air flow | m3/h | 3200 | 5500 | 8200 | 10000 | ||
| ventilation patte | Rear return air Frontal air supply, can be configuredwithfield adjustabledirection winddeflector, can realizehorizontal air supplyfrom thefront,horizontal air supplyfrom the left side, horizontal air supplyfrom the right side, andhorizontal air supplyfrom the left and right sides |
||||||
| expansionvalve | Electronic | ||||||
| Refrigerant | R410a | ||||||
| selective assembly |
heating capacity | KW | 3 | 3 | 6 | 6 | |
| humidification amount |
Kg/h | 3 | 3 | 3 | 3 | ||
| Unit size | Width | mm | 300 | 300 | 600 | 600 | |
| Length | mm | 1200 | 1200 | 1200 | 1200 | ||
| Height | mm | 2000 | 2000 | 2000 | 2000 | ||
| Connection pipe |
Air pipe | mm | φ16 | φ19 | φ22 | φ22 | |
| Liquid pipe | mm | φ12 | φ16 | φ16 | φ16 | ||
| Drain pipe | mm | φ19 | φ19 | φ19 | φ19 | ||
| Humidifier waterin | let pipe | G1/2" | G1/2" | G1/2" | G1/2" | ||
| Weight | Kg | 260 | 295 | 390 | 420 | ||
| Distribution parameter W |
Power supply | 380V3Ph-50Hz | |||||
| Recommended circuit breaker |
D32 | D40 | D63 | D63 | |||
| iring specification | mm2 | 6 | 10 | 10 | 10 | ||
| Outdoor unit |
Model | SCW181 | SCW48E | SCW48E | SCW55E | ||
| Quantity | 1 | 1 | 2 | 2 | |||
| Weight | Kg | 60 | 125 | 125 | 145 | ||
| Wiring specificatio | mm2 n |
1.5 | 2.5 | 2.5 | 2.5 | ||
| Vertical mounting |
W | mm | 850 | 850 | 850 | 850 | |
| L | mm | 550 | 550 | 550 | 550 | ||
| H | mm | 800 | 1600 | 1600 | 1600 | ||
| Remark | 1. Test conditions: return air temperature 37°C, relative humidity 24%; 2. The depth dimension can be extended to 1200mm, and the height dimension can be extended to 2200mm; 3. The outdoor unit is selected according to the inlet air temperature of 35°C. For other operating environments, please contact our company; 4. When the equivalent distance of the connecting pipe exceeds 30m, please refer to the installation specification to increase the pipe diameter; 5. If the data is not listed in the data sheet, please contact our company; 6. If you have other customized needs, please contact our company. |
||||||

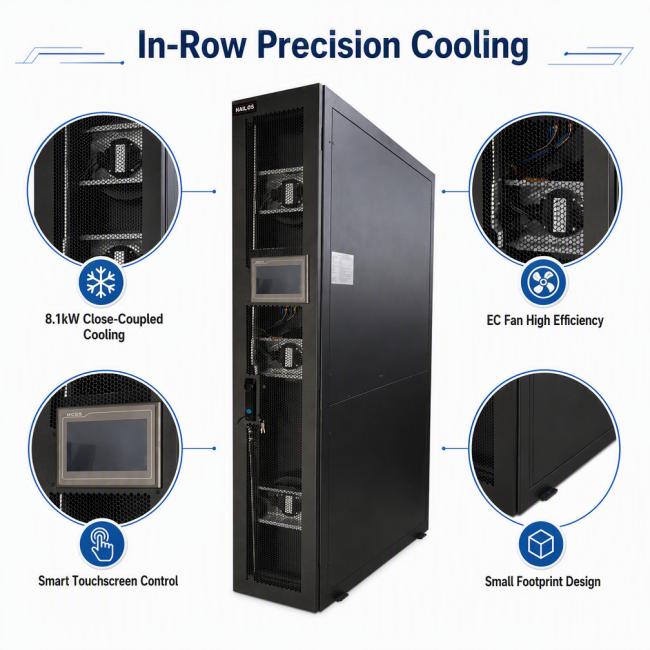

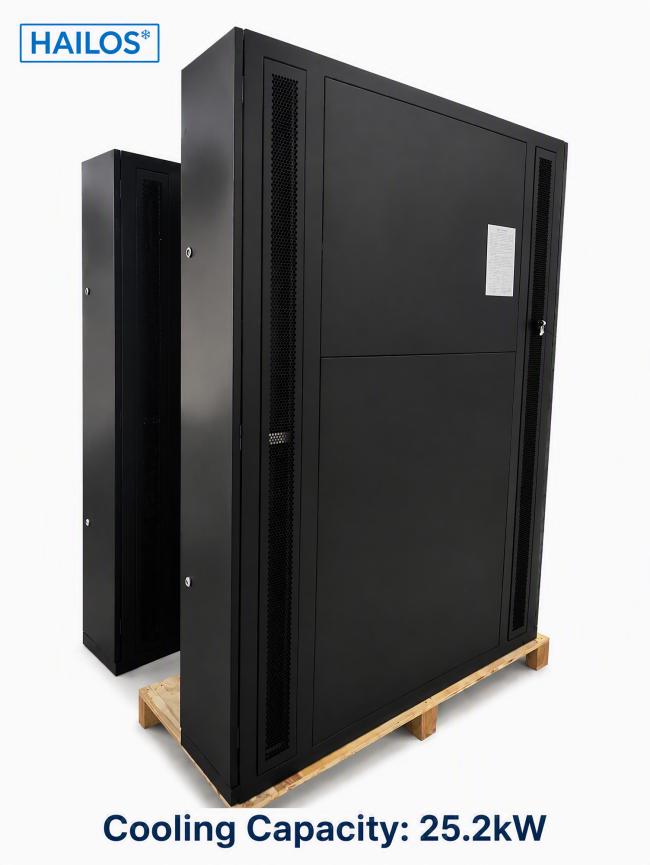

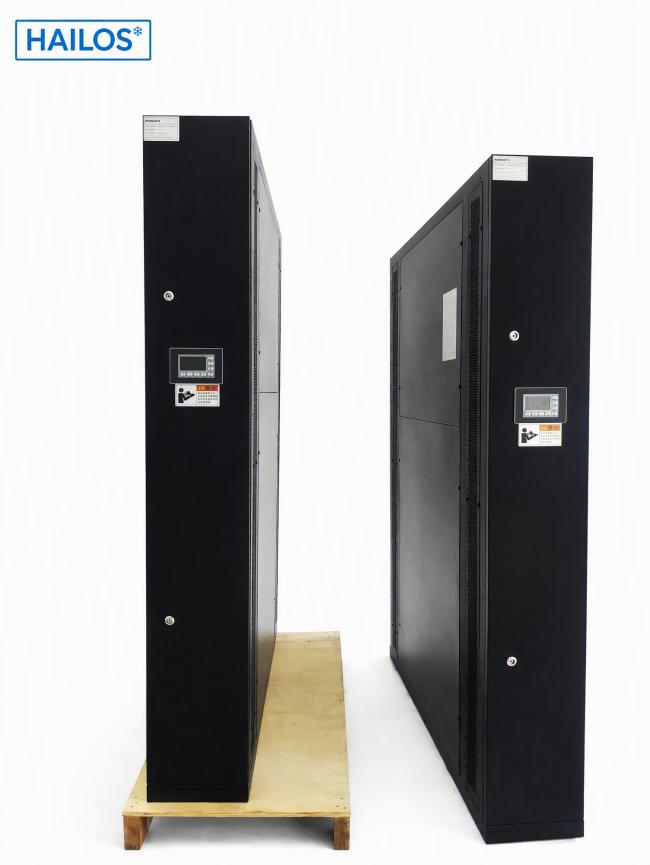

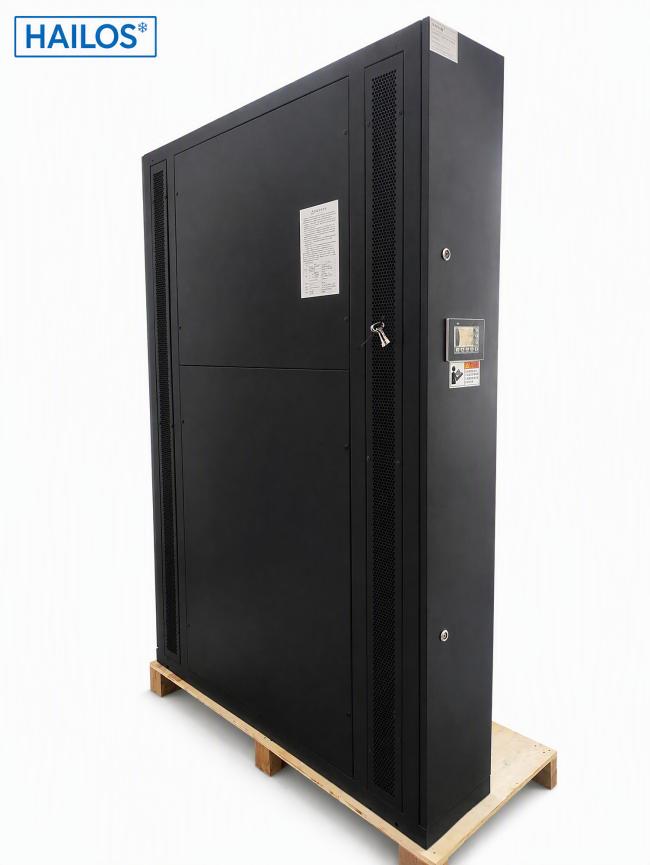

Product Photo
Certificate ( CE /ISO )
Packing
Project Case
FAQ
Q1: Who is Zhengzhou Hailos Refrigeration Equipment Co.,ltd?
A1: We are a professional factory specializing in R&D, production and export of precision air conditioners and industrial chillers, located in Zhengzhou, China. We focus on high-precision cooling equipment for data centers, laboratories, laser processing, electroplating, battery factories, medical rooms and industrial production lines. All units are strictly tested before delivery, with complete international certifications for global market sales.
Q2: What is your MOQ (Minimum Order Quantity)?
A2: 1 unit for standard models is acceptable; for customized non-standard machines, MOQ depends on configuration. Distributors with bulk orders get extra factory discount.
Q3: Do you accept factory inspection?
A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.
Q4: Where are Hailos precision air conditioners widely used?
A4: Server data room, communication base station, medical lab, testing laboratory, battery workshop, optical equipment room, clean room, electronic manufacturing workshop, industrial control cabinet cooling.
Q5: Can precision air conditioner work all year round without shutdown?
A5: Yes. Our precision cooling units adopt heavy-duty scroll compressor, EC energy-saving fan and independent control system, designed for 24-hour non-stop operation all year long, low failure rate.
Q6: Can I adjust temperature and humidity remotely?
A6: Standard models support Modbus communication to connect with monitoring system; optional WiFi remote control module for mobile phone real-time parameter checking, alarm reminder and parameter modification.
Q7: What refrigerants do you use for precision AC?
A7: Mainly eco-friendly R410A, R134a; we can replace with R32, R290 low-GWP refrigerants to meet local environmental regulations in your country.
Q8: Do you support OEM / ODM customized service?
A8: Yes, full OEM & ODM service available: custom unit size, voltage (380V/220V/415V 50/60Hz), brand logo, control panel language (English, Spanish, Russian, Vietnamese), special refrigerant, remote monitoring system, cabinet color. We can design new model drawing based on your working conditions.
Q9: Do you provide technical drawing and parameter sheet?
A9: Yes. After confirming the model, we supply dimension drawing, technical datasheet, wiring diagram, installation manual in English PDF files for your project design.
Q10: Can you supply spare parts separately?
A10: Yes, we offer all replacement spare parts: compressor, fan motor, controller, filter, expansion valve, sensor.
