FCU Thermostat With Heating Cooling Fan Speed Control WIFI RS485 Modbus Remote Smart Controller
Price:
US$22/pcs
MOQ:
1
Delivery Time:
2-3 weeks
Brand:
OEM or neutral (no brand)
Product Description
Product Overview:
KF-700C-WK the thermostat is suitable for indoor temperature control of central air conditioning fan coil systems or air duct systems.
By comparing the indoor temperature with the set temperature, it controls the opening and closing of the fan coil units, underfloor heating valves, or water valves at the end of the air conditioning system, achieving the goal of regulating indoor temperature, comfort, and energy conservation.
Key Features:
Type: Digital Thermostat / HVAC Controller
Application:
- Central air conditioning system
- Fan coil unit system
- Air duct system
Control Targets:
- Fan coil units
- Motorized valves
- Water valves
- Underfloor heating systems
Product Specifications:
|
* Dimension:
|
86 × 86 × 40 mm
|
|
* Temperature display range:
|
0℃ —— 50℃
|
|
* Fixing hole distance:
|
60mm (standard)
|
|
* Operating temperature:
|
-10℃--- +50℃
|
|
* Wiring terminal:
|
Max 2.5 mm2 wire
|
|
* Operating humidity:
|
5％RH——90％RH
|
|
* Rated voltage:
|
AC110-240V, 50/60Hz
|
|
* Storage temperature:
|
-10℃--- +60℃
|
|
* Standby Power:
|
≤ 2.0W
|
|
* Storage humidity:
|
≤ 60％RH
|
|
* Control power:
|
≤ 200W
|
|
* Life:
|
≥ 5 years
|
|
* Suitable for fans:
|
AC/EC/DC
|
|
|
|

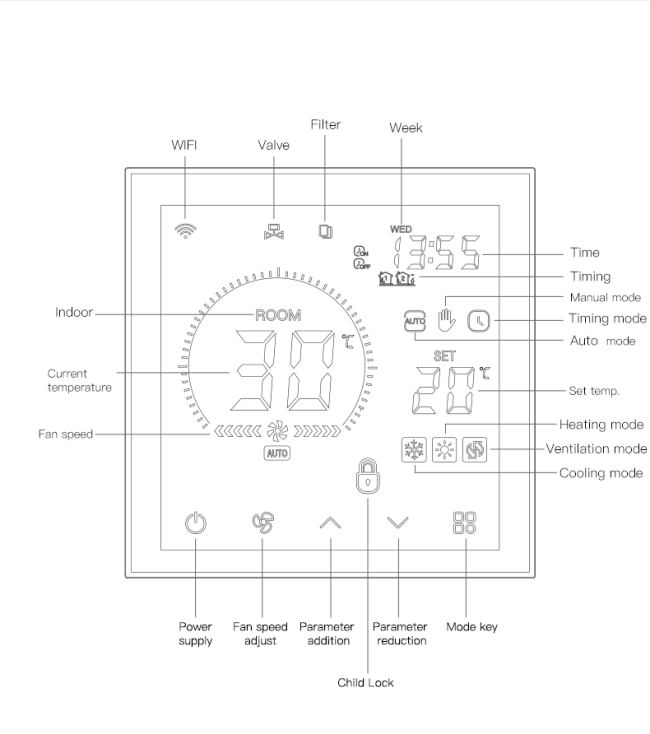

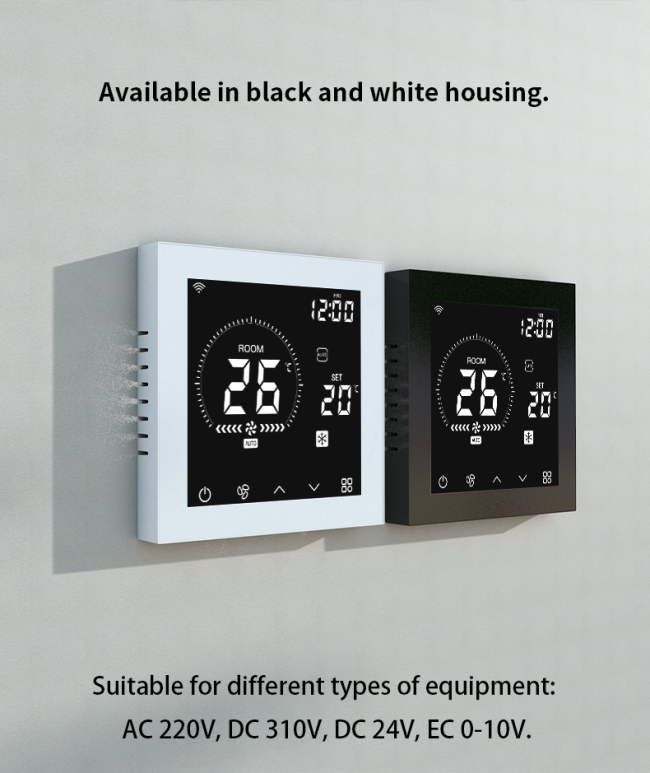

Product Images:
Wiring Diagram:
