Digital Fan Coil Thermostat Heating Cooling FCU Thermostat Controller
KF-700A-WK is a modern intelligent thermostat designed for temperature control in central air conditioning fan coil systems and air duct systems. It continuously compares indoor ambient temperature with the user-set target temperature, and automatically controls fan coil units, motorized valves, or water valves at HVAC terminal systems.
By precisely managing system operation, it helps maintain stable indoor comfort while improving energy efficiency and reducing unnecessary energy consumption. It controls the opening and closing of the fan coil units, underfloor heating valves, or water valves at the end of the air conditioning system, achieving the goal of regulating indoor temperature, comfort, and energy conservation.
Sensor: Built-in temperature sensor
Installation: Wall-mounted
Load Type: Fan coil unit / motorized valve / water valve

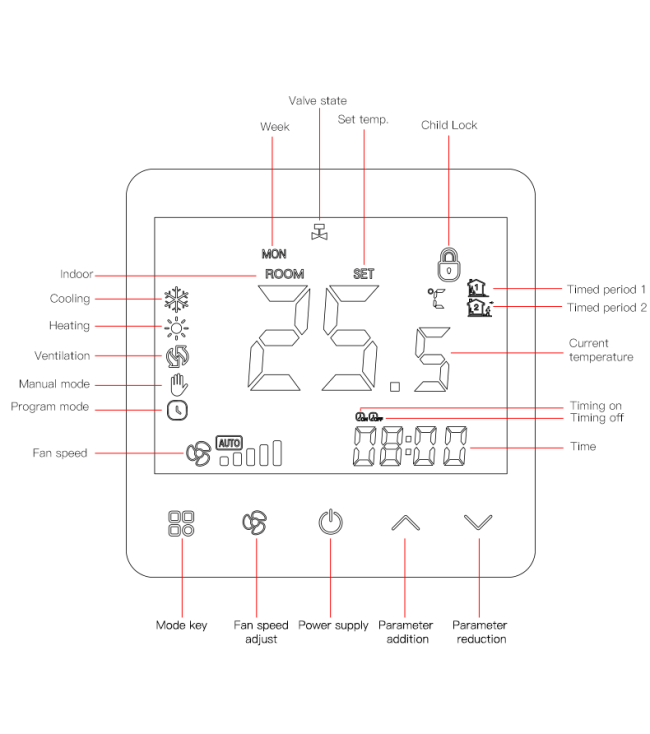

Functions: Temperature control, timing, child lock, mode switching
Voltage Range: Wide voltage compatible (HVAC systems)
Target Market: Residential / Hotel / Office / Commercial building

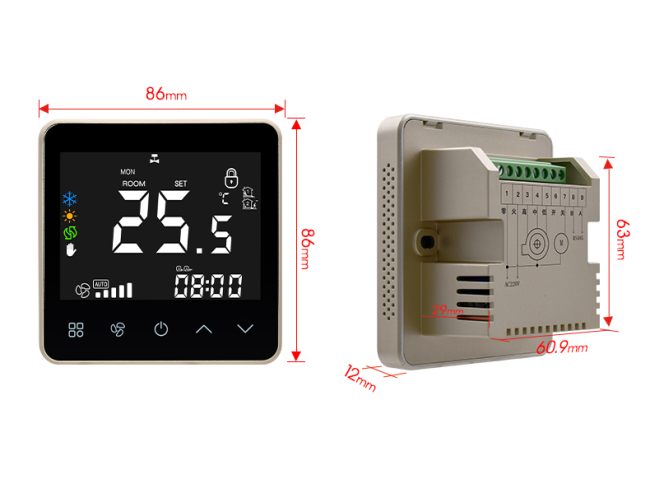

| * Dimension: | 86 * 86 * 40 mm | * Temperature display range: | 0℃ —— 50℃ | |
| * Fixing hole distance: | 60mm (standard) | * Operating temperature: | -10℃--- +50℃ | |
| * Wiring terminal: | Max 2.5 mm2 wire | * Operating humidity: | 5％RH——90％RH | |
| * Rated voltage: | AC110-240V, 50/60Hz | * Storage temperature: | -10℃--- +60℃ | |
| * Standby Power: | ≤ 2.0W | * Storage humidity: | ≤ 60％RH | |
| * Control power: | ≤ 200W | * Life: | ≥ 5 years | |
| * Suitable for fans: | AC/EC/DC |
