Smart HVAC Thermostat for Precise Indoor Climate Control
Price:
US$22/pcs
MOQ:
1
Delivery Time:
2-3 weeks
Brand:
OEM or neutral (no brand)
Product Description
Product Overview:

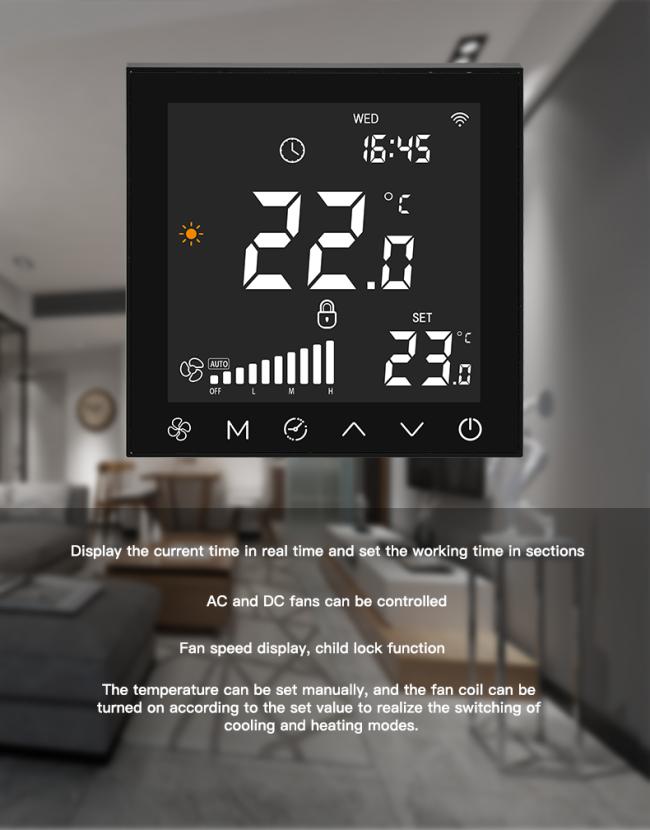

Product Images:

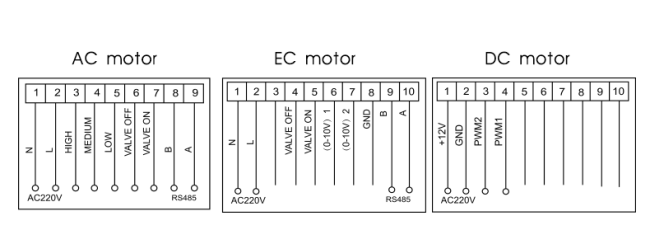

Wiring Diagram:
![]()
KF-900Z-WK the thermostat is suitable for indoor temperature control of central air conditioning fan coil systems or air duct systems. By comparing the indoor temperature with the set temperature, it controls the opening and closing of the fan coil units, underfloor heating valves, or water valves at the end of the air conditioning system, achieving the goal of regulating indoor temperature, comfort, and energy conservation.
By intelligently managing system operation, it helps maintain a stable and comfortable indoor environment while improving energy efficiency and reducing energy consumption.
Key Features:- Support AC 110V-220V, EC 0-10V, DC 12V/24V wide voltage input.
- Standard 86 cassette wall mounting.
- Real-time monitor & display temperature, humidity (optional).
- Energy-Saving Design
Optimizes HVAC operation to reduce unnecessary energy consumption. - Fan Speed Control

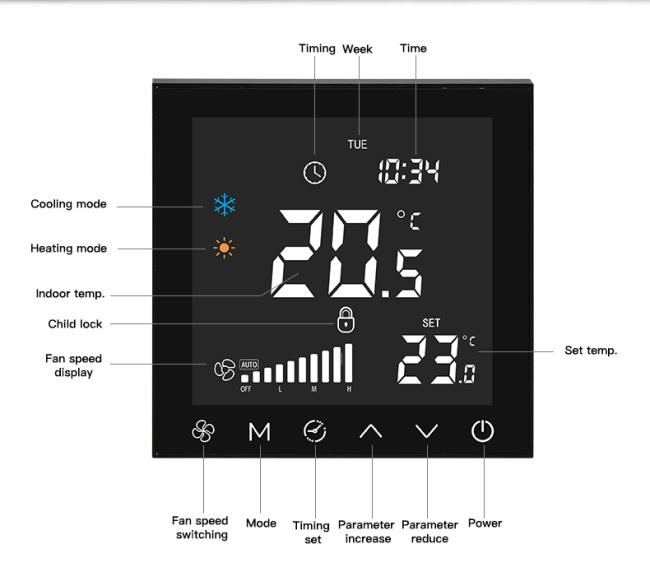

Adjustable fan speed with automatic mode support. - Modern LCD Interface
Clear digital display with intuitive user operation. - Safety Function
Built-in child lock to prevent accidental operation. - Wide Application
Ideal for residential, hotel, office, and commercial HVAC systems.
| Specification | Value |
|---|---|

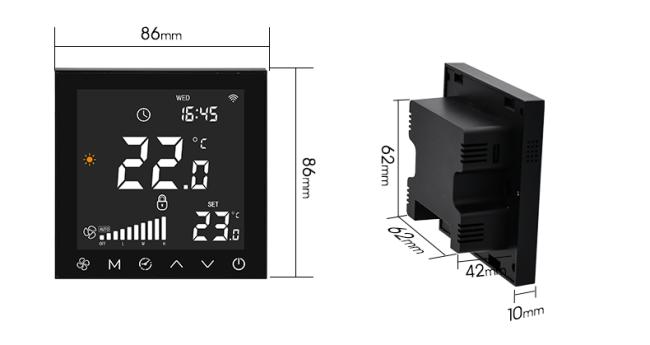

| Dimension | 86×86 mm |
| Temperature display range | 0℃-- +50℃ |
| Fixing hole distance | 60mm(standard) |
| Operating temperature | 0℃ --- +50℃ |
| Wiring terminal | Max 2.5 mm2 wire |
| Operating humidity | 5％RH——90％RH (Non-condensing) |
| Rated voltage | 220V 50Hz |
| Storage temperature | -10℃ --- +60℃ |
| Standby Power | ≤2.0W |
| Storage humidity | ≤60％RH |
