End To End Low Volume PCB Assembly OEM ODM Full Turnkey PCB

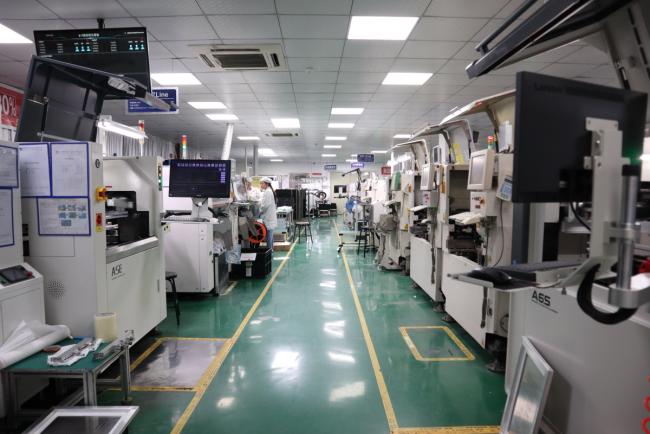

The journey from design concept to functional low-volume production involves multiple critical stages—each requiring specialized expertise and equipment. Studio Electronics offers End-to-End Low Volume PCB Assembly with full turnkey service, supporting your project from material procurement through final delivery. As a trusted provider of PCB assembly in China, we provide continuity and consistency throughout your entire low volume PCB assembly journey, ensuring your boards reach you with quality, speed, and reliability. Our 12 automated SMT lines, advanced soldering systems, and comprehensive inspection capabilities deliver end-to-end solutions for low-volume production.
| Stage | Process Description | Studio's Capability |
|---|---|---|
| 1. Material Procurement | Sourcing PCB boards, electronic components, and assembly materials per BOM | Smart Material Rack with real-time visibility; supply chain supports small-quantity procurement |
| 2. PCB Fabrication | Bare board creation: etching, layering, drilling per design specifications | 2-20+ layer capability; multiple materials and finishes; in-house fabrication |
| 3. Component Assembly | SMT and THT placement using automated assembly instruments | 12 SMT lines with ±25μm accuracy; automatic wave soldering; robotic soldering |
| 4. Testing & Quality Control | Functional tests and quality checks; defect detection and resolution | AOI, X-Ray, ICT, Flying Probe—100% inspection; reliability lab available |
| 5. Final Assembly | Board integration into larger assemblies; connecting components; final verification | Box-build capability; wiring harness; enclosure assembly |
| 6. Delivery | Protective packaging; customs clearance; on-time shipping to your destination | Anti-static packaging; global logistics; customs documentation support |
- Seamless Integration – No gaps between stages; smooth transition from procurement through delivery
- Quality Consistency – Unified quality standards from start to finish
- Time Efficiency – Eliminate handoff delays between separate vendors
- Single Accountability – One point of contact for your entire project
- Risk Reduction – Coordinated process reduces errors and miscommunication
- Component Sourcing – Global supply chain; authorized distributors; lifecycle management; small-quantity procurement for low volume PCB assembly
- PCB Fabrication – 2-20+ layers; rigid, flex, rigid-flex; ENIG, HASL, OSP finishes
- SMT Assembly – 12 automated lines; 01005 to BGA; ±25μm accuracy
- Through-Hole Assembly – Automatic wave soldering; programmable soldering robots
- Testing – AOI, X-Ray, ICT, Flying Probe, reliability lab—100% coverage
- Box-Build – Enclosure assembly; wiring harness; module installation
- Logistics – Anti-static packaging; customs clearance; global shipping
Studio delivers End-to-End Low Volume PCB Assembly—full turnkey service from concept to delivery.
