Soil Testing Small 75mm Geological Drilling Rig 100m Engineering Equipment

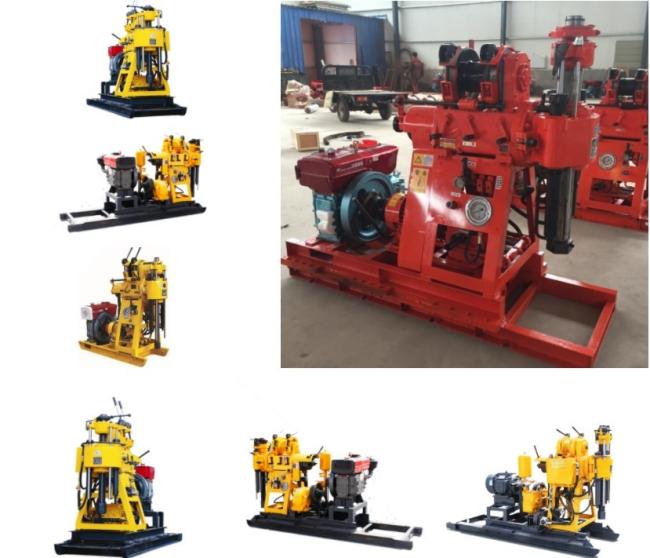

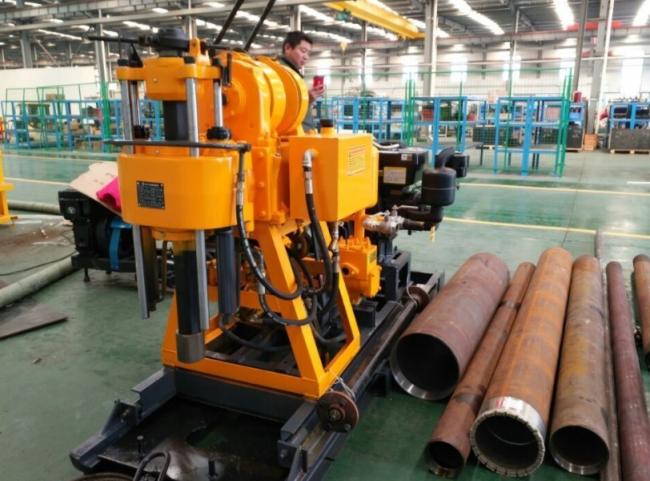

The XY-1 Diamond Core Drill Rig is designed for general exploration and investigation, geophysical prospecting, road and construction survey, blast holes, and various other drilling operations.
| Drilling depth | 100m |
| Drill rod diameter | 42mm |
| Initial hole diameter | 110mm |
| Final hole diameter | 75mm |
| Angle range | 75-90° |
| Dimensions (L*W*H) | 1640*1030*1440mm |
| Weight without power unit | 500kg |
| Stroke XY-1 | 350mm |
- Hydraulic automatic feeding structure improves drilling efficiency and reduces worker labor intensity
- Ball clamp clamping mechanism replaces the chuck, allowing rod reversal without stopping the machine for convenient, safe, and reliable operation
- Equipped with hole bottom pressure gauge to indicate pressure, facilitating monitoring of conditions within the hole
- Centralized handle design for easy operation
This survey method determines underground geological conditions and can be categorized as:
- Geophysical exploration: Identifies lithology, groundwater level, karst cave distribution, etc., based on conductivity, magnetism, density, and elastic wave propagation speed through different underground strata and media
- Drilling: Combined with pit (groove) exploration
- Penetration: Serves as both an exploration method and an in-situ test method
- Divide the field into homogeneous units based on visual observation and farmer experience
- Remove surface litter at the sampling spot
- Drive the auger to a plough depth of 15 cm and draw the soil sample
- Collect 10-15 samples from each sampling unit and place in a bucket or tray
- If auger is unavailable, make a 'V' shaped cut to 15 cm depth using a spade
- Remove thick soil slices from top to bottom of the exposed 'V' cut face and place in a clean container
