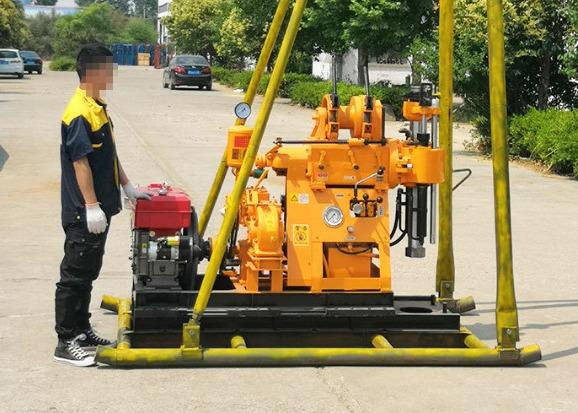

Customized GK 200 Portable Geological Drilling Rig 200m Depth Underground Borehole
| Parameter | Specifications |
|---|---|
| Drilling hole diameter (mm) | 75, 91, 110, 130, 150, 300 |
| Drilling depth (m) | 200, 150, 100, 70, 50, 30 |
| Drill pipe diameter (mm) | 42, 50 |
| Drilling angle (°) | 90~75 |
| Equipment size (L × B × H) (mm) | 1730 × 860 × 1360 |
| Rig weight (except engine) (kg) | 700 |
| Parameter | Specifications |
|---|---|
| Spindle speed (four gear) (r/min) | 115, 230, 505, 1010 |
| Spindle travel (mm) | 450 |
| Spindle no-load lifting maximum moving speed (m/s) | 0.05 |
| Spindle no load drop maximum movement speed (m/s) | 0.067 |
| Spindle maximum feed pressure (KN) | 15 |
| Spindle maximum lifting force (KN) | 25 |
| Spindle maximum output torque (KN•m) | 1.5 |
| Parameter | Specifications |
|---|---|
| Winch maximum lifting force (single rope) (KN) | 20 |
| Reel speed (r/min) | 20, 39, 85, 170 |
| Reel circumferential speed (m/s) | 0.172, 0.345, 0.738, 1.476 |
| Reel diameter (mm) | 140 |
| Wire rope diameter (mm) | 9.3 |
| Wire rope density (m) | 40 |
| Brake diameter (mm) | 278 |
| Brake band width (mm) | 50 |
- Automatic oil pressure feeding mechanism improves drilling efficiency and reduces physical labor
- Ball clamp clamping mechanism replaces the chuck, allowing reverse rod operation without stopping the machine - convenient, safe and reliable
- Equipped with hole bottom pressure gauge to indicate pressure, facilitating monitoring of hole conditions
- Centralized handle design for easy operation
- Compact structure with drilling rig, water pump and diesel engine installed on one base, occupying minimal space
- Light weight, strong decomposability, easy to move, suitable for working in plain or mountainous areas
- Engineering geological survey for railway, hydropower, transportation, bridge, dam foundation and other construction projects
- Geological core drilling and physical survey
- Drilling of small grouting holes and blasting holes
- Small water well drilling
