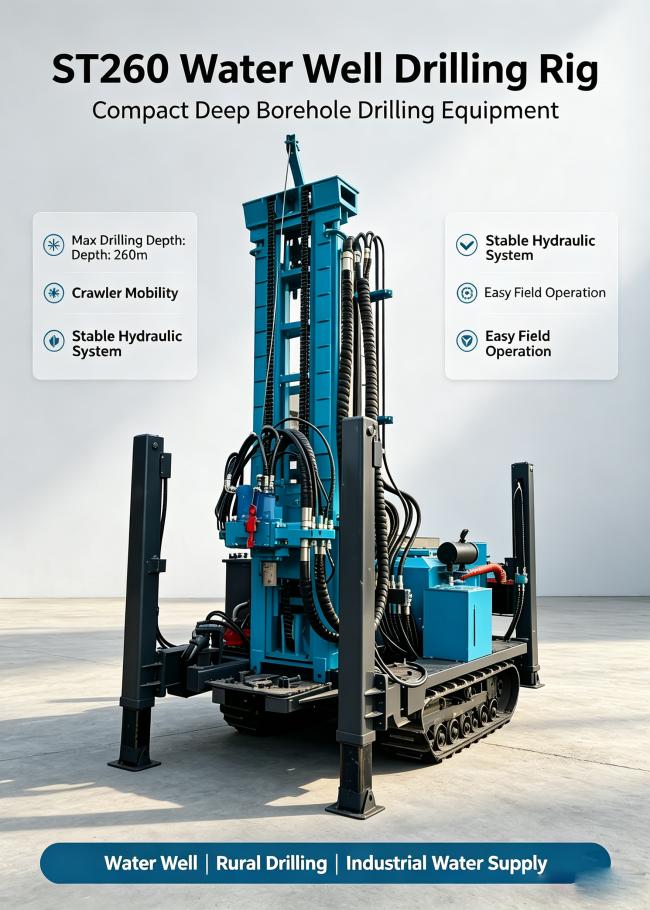

Hydraulic Air Drilling Rig Farming Deep Underground 260m Drilling
| Drilling Depth | 260m |
| Drilling Hole Diameter | 105-305mm |
| Working Wind Pressure | 1.25-3.5Mpa |
| Gas Consumption | 16-55m³/min |
| Drill Pipe Length | 3m |
| Drill Pipe Diameter | 76mm |
| Axial Pressure | 4T |
| Lifting Force | 20T |
| Lifting Speed | 20m/min |
| Fast Forward Speed | 40m/min |
| Maximum Turning Torque | 5900 Nm |
| Maximum Rotation Speed | 85/170 rpm |
| Lifting Force of Small Auxiliary Winch | 1.2T |
| High Leg Travel | 1.35m |
| Footage Efficiency | 10-35m/h |
| Walking Speed | 2.5km/h |
| Climbing Degree | 30° |
| Weight | 6T |
| Overall Dimension | 4m × 1.8m × 2.3m |
| Adaptive Conditions | Loose layer and bedrock |
| Engine | Xidong 73KW |
- High-efficiency, multi-functional down-the-hole water well drilling equipment suitable for water wells, agricultural irrigation wells, geothermal wells, and other well types
- Specifically designed for mountainous areas and rock stratum water sourcing projects
- Capable of drilling in different strata with maximum bore diameter up to 450mm
- Features big torque hydraulic motor power head, brand diesel engine, and large diameter hydraulic cylinders
- Dual-level air filtration system protects the diesel engine
- Unique bump set design and centralized control operation system for easy maintenance and operation
- Excavator crawler chassis provides high off-road performance; can also be truck-mounted for enhanced maneuverability
- Two-gear rotation and feeding speed for optimal performance in both soil and rock layers
