Precise Control Smart Automatic Nipple Drinking System For Poultry And Animal Farming
Price:
Negotiable
MOQ:
500
Delivery Time:
Negotiable
Product Description
Smart Automatic Nipple Drinking System for Healthy Livestock
Nipple Drinking System
Smart Automatic Nipple Drinking System is a reliable livestock watering solution designed for intensive poultry and animal farming. With automatic nipple drinkers, precise water flow control, and efficient filtration, the system provides continuous access to clean drinking water while reducing labor costs and water consumption. Its hygienic design minimizes contamination risks and supports healthier livestock growth. Suitable for chicken farms, pig farms, and other commercial livestock operations, this automatic drinking system improves farm management efficiency and helps achieve more sustainable and productive animal farming.
Complete system includes filter, pressure regulator, nipple drinking line, lifting and suspension system, and more.

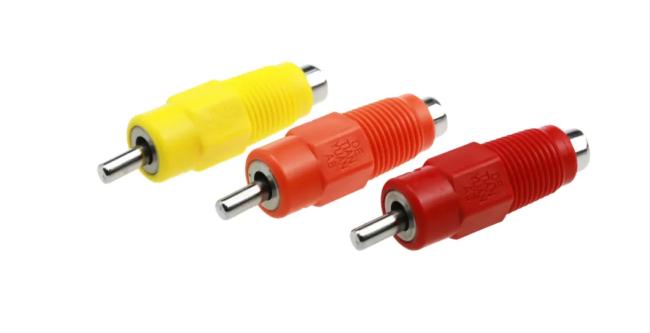

Nipples for the System
- Made of high quality plastic (outside shell) and stainless steel (inner rod), anti-corrosion
- Service life over 10 years
- Prevents water leakage and associated issues in chicken houses
- 360-degree triggering for easy drinking access
- Meets drinking demands of chickens at different growth stages

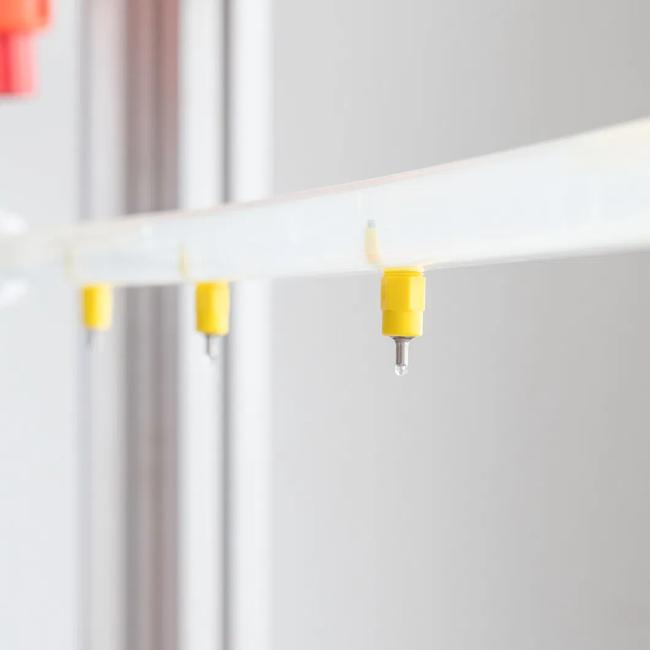

Detailed Nipple Parameters
| Drinking Style | Automatic |
|---|---|
| Nipple Drinking Style | 360° Drinking |
| Nipple Material | Stainless Steel |
| Nipple Flow Rate | 90-100ml/minute |
| Feeding Capacity | 8-12 birds/cup |
| Drip Cup Color | Red/Yellow |
| Drip Cup Material | High-performance Plastic |
| Drinking Pipe Diameter | 22cm (square pipe) |

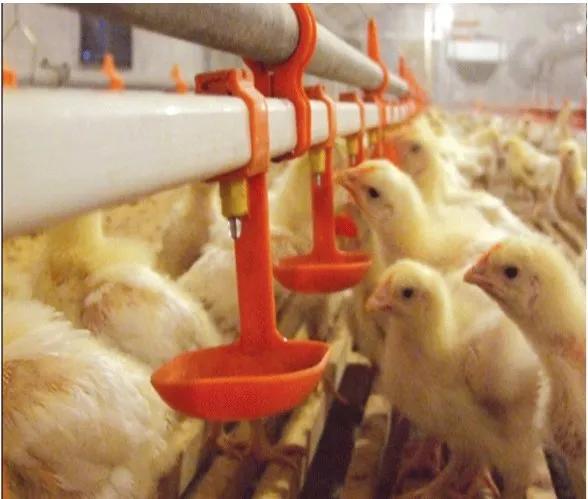

Nipple Capacity
| Broiler | 8-12/nipple |
|---|---|
| Reserve Layer | 12/nipple |
| Reserve Turkey | 20/nipple |
| Duck | 10/nipple |
| Breeder | 10/nipple |

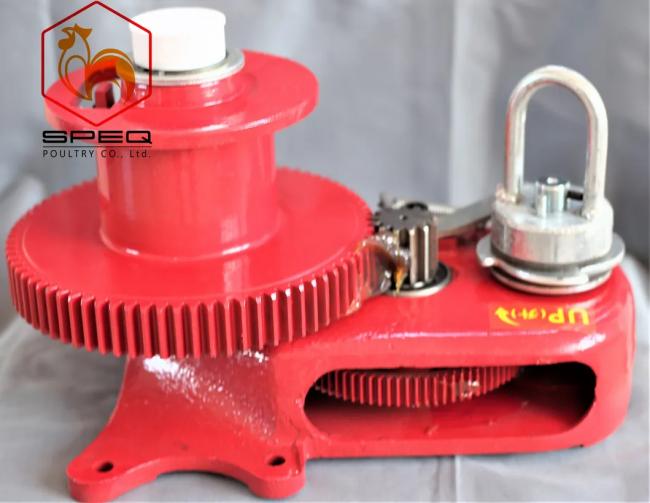

Lifting and Suspension System
Easy height adjustment for the drinking system with this specialized suspension mechanism.

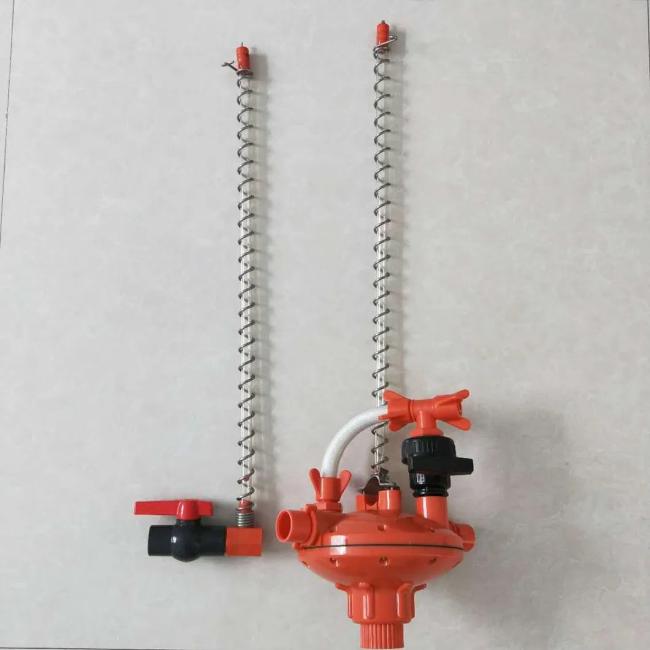

Water Display Level Tube
Made of high transparency and impact resistant material, sturdy and durable, convenient for monitoring water levels.
Recommended Water Level Heights
| Days of Chicken | 1-7 days | 8-14 days | 15+ days |
|---|---|---|---|
| Water Level Height (mm) | 50-80 | 80-200 | 200-350 |

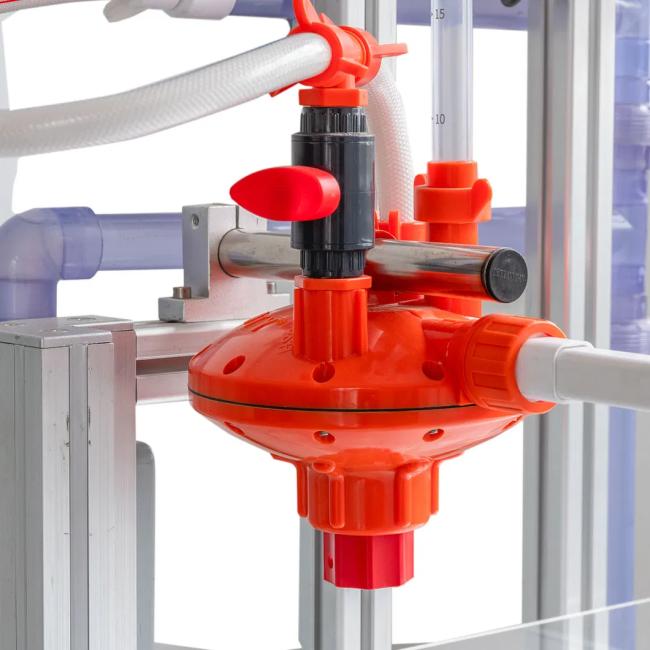

Pressure Regulator
Double barreled design with large flow capacity.
Advantages:
- Regulating stability
- High switching performance
- Sufficient and equal water supply
- Recoil cleaning with excellent results, saving time and water
- High-quality movable valve for easy replacement
Front Part of Drinking System
Controller unit for water management, primarily functions to adjust water supply pressure and stabilize drinking volume. Typically installed in control room.
- Pressure Regulator: Supplies stable water to drinking line. Anti-backflow device discharges impurities from pipes
- Filter: Cleans water and prevents nipple blockage
- Water Meter: Measures water usage volume
- Doser: Precisely adds medication for disease prevention

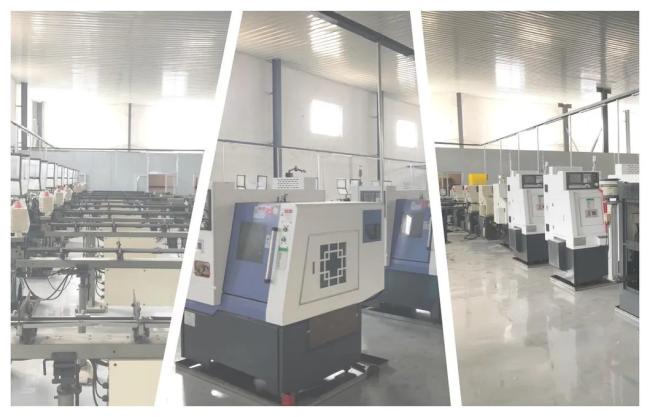

Customer Project Examples
