Automatic Poultry Feeding Pan Broiler Farm Floor Raising System

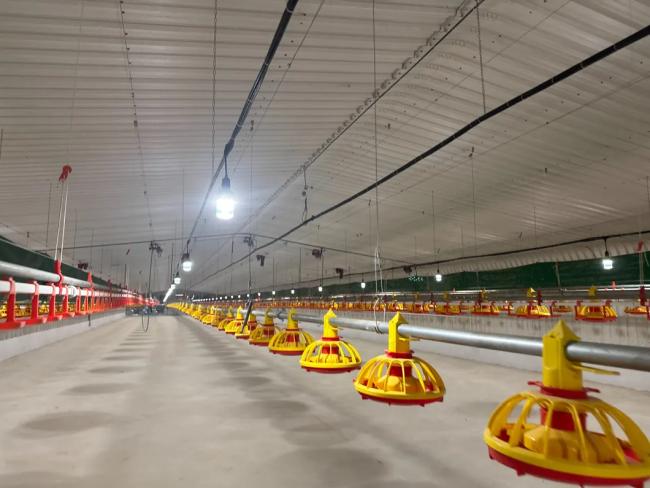

Automatic Broiler Floor Rearing System is a complete cage-free poultry farming solution designed for commercial broiler chicken houses. Our floor raising system allows birds to move freely on the ground while enjoying fully automated feeding, drinking, and environmental control, promoting natural growth behavior and improving flock health.
Suitable for broiler farms ranging from 500 to 50,000 birds per house, our system integrates pan feeding lines, nipple drinking lines, ventilation systems, and intelligent control units to deliver reliable, cost-effective production results.

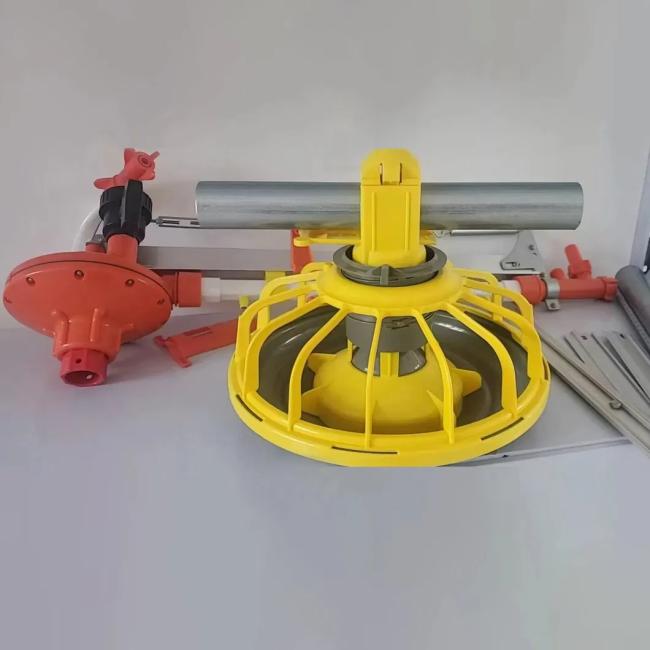

| Component | Specification |
|---|---|
| Pan Feeding Line | 14/16/18-grill feed pan, 330mm diameter, 45-65 birds/pan |
| Auger Conveyor | 20/073 model, 0.55kW motor, 0.6T/h feeding speed |
| Nipple Drinking Line | 360° stainless steel nipple, anti-leak design with drip cup |
| Water Pressure Regulator | 0-8 level precise adjustment |
| Winch Lifting System | Height adjustable for different growth stages |
| Control Unit | Automatic feed timing & environment monitoring |
- Auger delivery system ensures uniform feed distribution
- 14 individual feeding positions per pan reduce crowding
- Adjustable feed level minimizes waste and saves cost
- Winch lifting system adapts to chick to market weight growth
- 360° trigger stainless steel nipples, high sensitivity
- Drip cups collect residual water, keeping litter dry
- Reduces ammonia buildup and prevents breast blisters
- UV-resistant PVC pipe, durable for long-term use
- Birds move freely, express natural scratching behavior
- Lower stress environment improves feed conversion rate
- Suitable for broiler, breeder, and layer pullet rearing
- Meets international animal welfare standards
- Food-grade PP material, UV and aging resistant
- Galvanized steel structure, anti-corrosion
- Modular design for quick installation and replacement
- 1-year warranty with lifelong technical support
| Item | Parameter |
|---|---|
| Feed pan capacity | 150kg live weight / pan |
| Feeding speed | 0.6 ton/hour |
| Motor power | 0.55kW - 1.1kW |
| Stocking density | 8-12 broilers per m² |
| Voltage | 220V / 380V, 50/60Hz |
| Material | PP raw material + galvanized steel pipe |
| Package size | 60cm × 60cm × 60cm / carton |
| Gross weight | 22kg / carton |
Our floor rearing system is widely used in:
- Commercial broiler chicken farms
- Breeder poultry houses
- Layer pullet rearing farms
- Duck and goose floor raising farms
- New farm construction and existing house renovation
We provide custom design services based on your house dimensions, bird quantity, and local climate conditions. Free layout design available upon inquiry.
QINGDAO SUWANG ANIMAL HUSBANDRY EQUIPMENT CO., LTD. is a professional manufacturer specializing in poultry farming equipment. With ISO9001 and SGS certification, we supply complete poultry house solutions to over 30 countries worldwide. Our factory ensures strict quality control and fast delivery for every order.
