Factory & Customizable & Balanced Brushless DC Drive N6374 Motor W/Hall Sensor 170-330KV for DIY E-Bike E-skateboard Brushless
Price:
$32.99-39.99 / piece
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
HOBBYSKY
Product Description
Products Description
MODEL: | 6374 |
KV VALUE: | 17OKV-130KV |
POWER(24V): | 2800W |
WEIGHT: | 780G including packaging 810G |
INPUT VOLTAGE: | 18-50(V) |
ROTATION SPEED: | 4080-7920(RPM) |
SHAFT DIAMETER: | 10.0MM |
CURRENT: | 120(A) |
NO-LOAD CURRENT(24V): | 0.8-2.2(A) |
PLUG: | 4.0 banana head(Hall2.O 5P plug) |
APPLICABLE DRIVE: | Scooter controller, ESC(80-20OA) |
Hall sensor wiring:
Product Description.

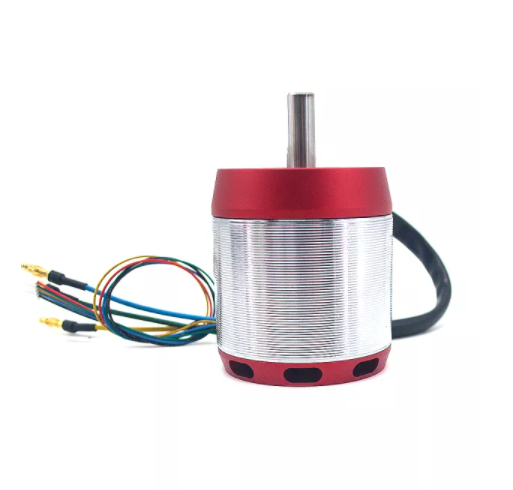

HS6374 motor is a good choice for assembling off-road scooters or modifying scooters. With high torque and fast speed, 6374 brushless motor can also be used for DIY modification of underwater thrusters and bicycles.
Main scope of application: model airplanes, drones, electric skateboard/longboard, lawn mowers, underwater propellers, etc. The 6374 motor is a good choice for assembling off-road electric skateboard or city street scooters. The motor has high torque and high speed, which can also be used for underwater propellers and e-bike DIY modification!
Processing customization: Yes, it can be customized according to requirements. Performance parameters can be customized according to your requirements. Welcome to customize with drawings and samples.
Factory direct sales: KV value can be according to your requirements, appearance can also be according to your requirements, can be potted and waterproof.
Mass production: shaft diameter: 8mm 10mm
Name:Hobbysky 6374 170KV 190KV 230KV Brushless Outrunner Belt Motor Belt Sensored & Sensorless Motor with Closed Cover for DIY Electric Skateboard Electric Bike Surfboard (8mm /10mm Shaft)

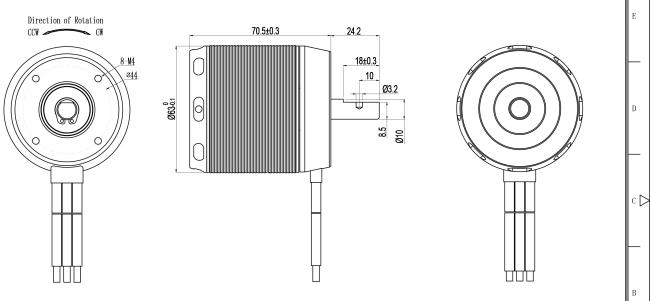

Specifications:
Brand : Hobbysky
Motor KV ………………………………...170/190(RPM/V)
Shaft…………………………………………8mm&10mm
Motor Size…………………………………...Φ63.0x70.0
Install Holes ………………………………...30/44mm
Mounting hole size…………………………. M4*4
Motor Wire : 30cm Wire with 4.0mm Gold Bullet Male Connector
Sensor Wire: Standard RC Sensor Wire JST-PH 5 pin 2.0mm pitch
Screws………………………………… M4x8mm Metric Bolts
Rated Voltage ………………………….…. 24V/36V/44.4V
Rated Current ……………………………...80A
Max. Current…………………………………120A
Max Torque…………………………………..7N.m
Input Volt. ……………………………………2-12S Lipo cell
NET Weight …………………………………796g
Max. Output Watt …………………………..3600W
Color : Black with closed cover waterproof and dustproof
Package Includes:
1pc x 6374 Brushless Motor
4pcs M4x8mm Metric Bolts
ATTENTION:
1. Please make sure your motor has enough cooling while running.
2. Keep motors away from moisture, dust, scrap and small items to avoid damages.
TIPS:
★ We welcome OEM orders, KV value, motor color, logo all can be customized.
Product packaging
Company Profile
FAQ
1.Are you a manufacturer?
Yes, as the original factory supplier in mainland China, we are mainly engaged in the research and development and production of brushless motors, covering aeromodelling brushless motors, electric remote control scooter brushless motors, surfboard brushless motors, and logistics sorting equipment brushless motors. A company specializing in the production and processing of outer-rotating brushless motors, inner-rotating brushless motors, and peripheral accessories and hardware accessories.
2.How to order？
Step 1.please tell us product items and quantity you need.
Step 2.we will make a PI with shipping cost for your reference.
Step 3.payment can be arranged after we confirm everything in details.
Step 4.we will deliver the goods within stipulated time.
3.What are the payment methods?
PayPal, T/T, Western Union, Moneygram, Escrow, etc. Beside, we accept Trade Assurance, which can protect your payment if you will not get the goods, so you can just place order in without any wories.
4.Do you provide OEM/ODM services?
Yes! Welcome to send us inquiries about OEM&ODM custom design.
