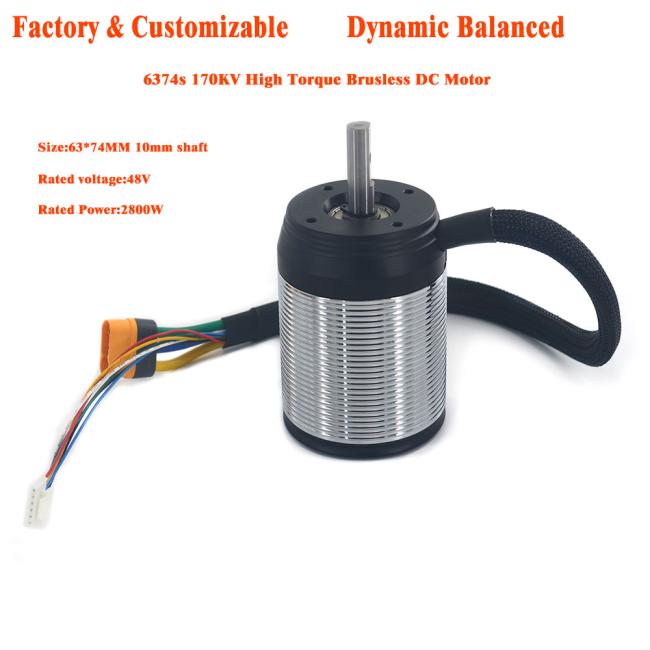

Hobbysky Powerfull High Efficiency Brushless 6374S Motor Hall Sensor for Electric Scooter E-Bike Surfboard Skateboard Longboard
Price:
$57.99-62.99 / piece
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
HOBBYSKY
Product Description
Products Description
MODEL: | 6374S |
MOTORKV: | 170-330kv |
No LOAD CURRENT: | 0.8-2.2A |
LIPO CELL: | 3-12S |
WEIGHT: | 810G |
MAX CONTINUOUS CURRENT: | 120A |
MAX CONTINUOUS POWER: | 2800W |
RECOMMENDED VOLTAGE: | 24-50V |
CONFIGU-RATION: | 12N |
MOTOR DIAMETER: | 63mm |
MOTOR BODY LENGTH: | 71mm |
OUT SHAFT LENGTH: | 31mm |
FLAT POSITION: | 26mm |
Hall sensor wiring:
Product Description.
HS6374S motor is a good choice for assembling off-road scooters or modifying scooters. With high torque and fast speed, 6374 brushless motor can also be used for DIY modification of underwater thrusters and bicycles.
Main scope of application: model airplanes, drones, electric skateboard/longboard, lawn mowers, underwater propellers, etc. The HS6374S motor is a good choice for assembling off-road electric skateboard or city street scooters. The motor has high torque and high speed, which can also be used for underwater propellers and e-bike DIY modification!
Processing customization: Yes, it can be customized according to requirements. Performance parameters can be customized according to your requirements. Welcome to customize with drawings and samples.
Factory direct sales: KV value can be according to your requirements, appearance can also be according to your requirements, can be potted and waterproof.
Mass production: shaft diameter: 8mm 10mm
Name:Hobbysky HS6374S 170KV 190KV 230KV Brushless Outrunner Belt Motor Belt Sensored & Sensorless Motor with Closed Cover for DIY Electric Skateboard Electric Bike Surfboard (8mm /10mm Shaft)
Specifications:
Brand : Hobbysky
Motor KV ………………………………...170-330(RPM/V) can be customize
Shaft…………………………………………8mm&10mm

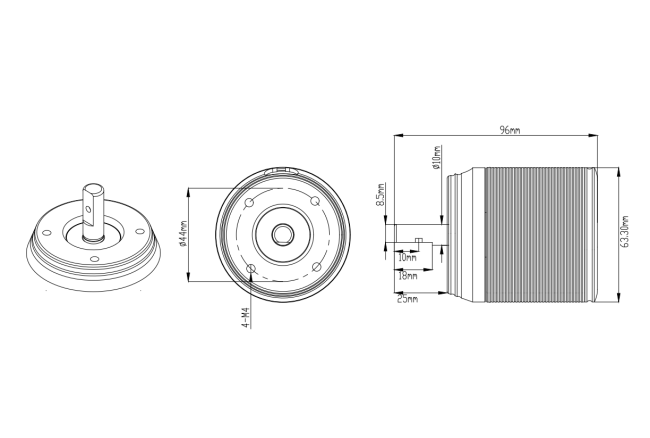

Motor Size…………………………………...Φ63.0x70.0
Install Holes ………………………………...44mm
Mounting hole size…………………………. M4*4

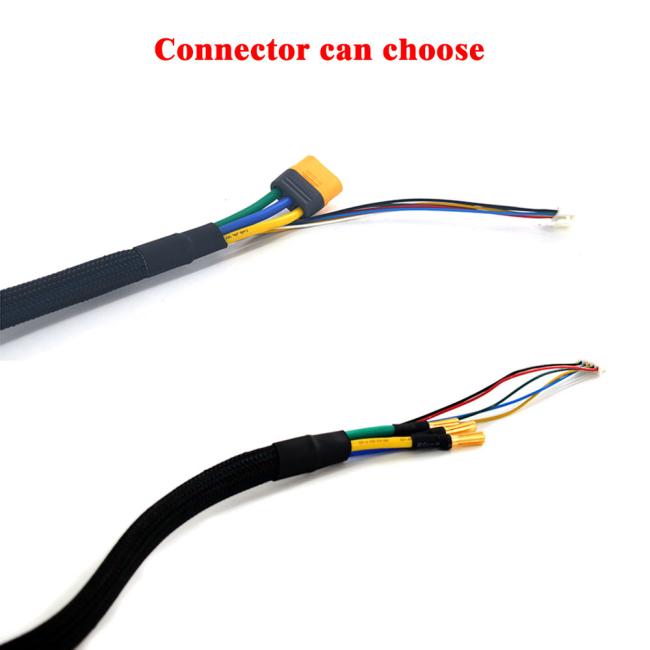

Motor Wire : 30cm Wire with 4.0mm Gold Bullet Male Connector
Sensor Wire: Standard RC Sensor Wire JST-PH 5 pin 2.0mm pitch
Screws………………………………… M4x8mm Metric Bolts
Rated Voltage ………………………….…. 24V/36V/44.4V
Rated Current ……………………………...80A
Max. Current…………………………………120A
Max Torque…………………………………..7N.m
Input Volt. ……………………………………2-12S Lipo cell
NET Weight …………………………………812g
Max. Output Watt …………………………..2800W
Color : Black with closed cover waterproof and dustproof
Package Includes:
1pc x 6374 Brushless Motor
4pcs M4x8mm Metric Bolts
ATTENTION:
1. Please make sure your motor has enough cooling while running.
2. Keep motors away from moisture, dust, scrap and small items to avoid damages.
TIPS:
★ We welcome OEM orders, KV value, motor color, logo all can be customized.
