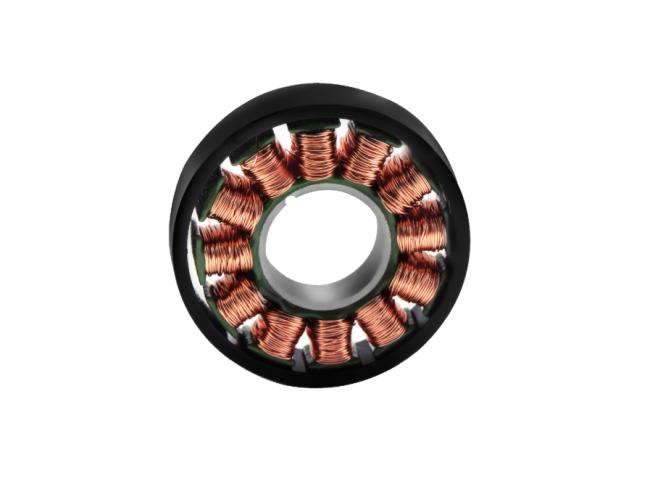

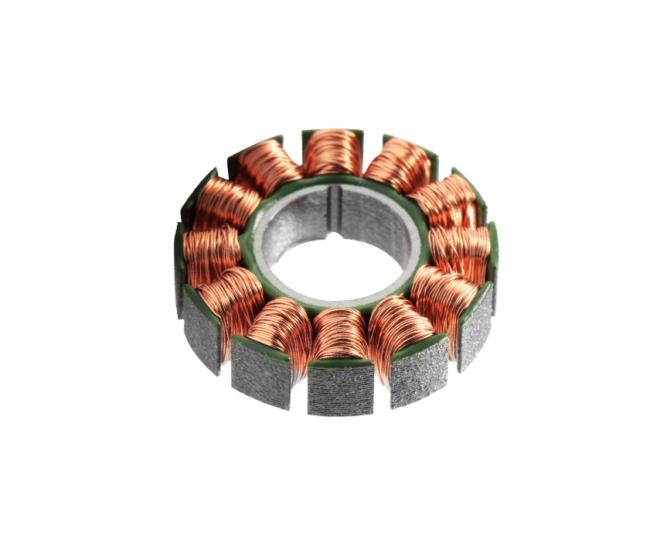

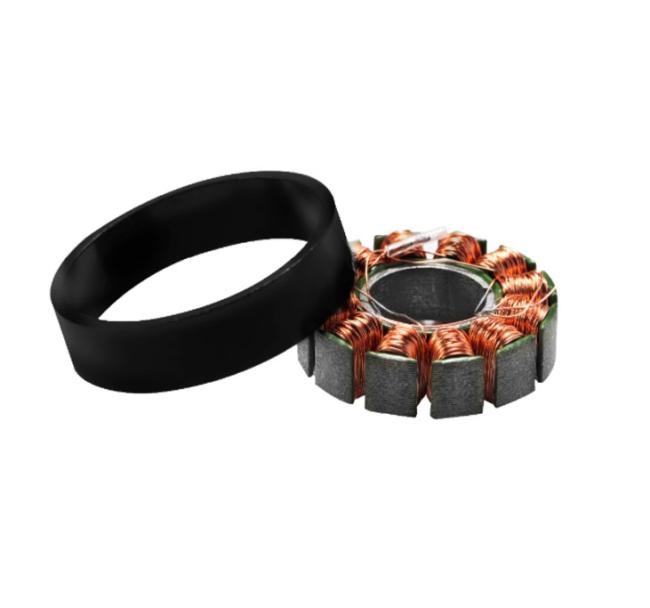

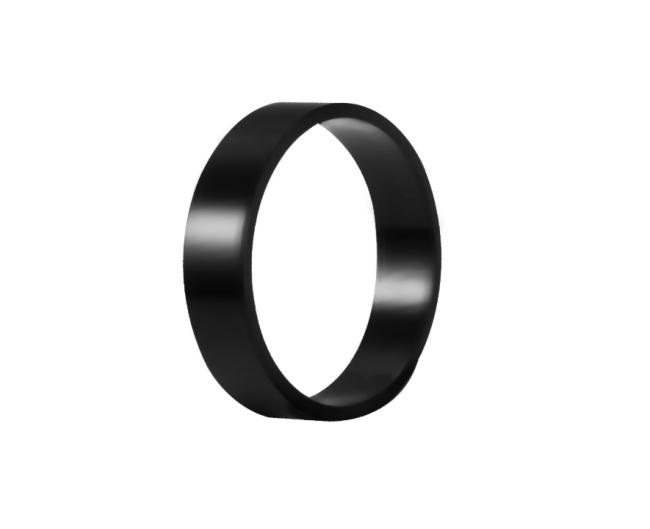

Hobbysky Robot Joint Actuator Module Arm Kit High Torque 2205 Frameless Brushless DC Motor 22*5MM Hollow Shaft Servomotor OEM
Price:
$15.99-17.99 / piece
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
HOBBYSKY
Product Description
Products Description
nominal voltag | V | 12 |
nominal current | A | 0.66 |
nominal torque | N/M | 0.04 |
nominal speed | RPM | 729 |
Max speed | RPM | 5630 |
stall torque | N/M | 0.12 |
stall current | A | 1 |
size | MM | 22*5 |
weight | G | 14 |
inner diameter of stator | MM | 10 |
Product Description.
(Nominalvoltage) v 12 12
(Nominal current) A 0.66 0.66
(Nominal torque) N.M 0.04 0.02
(Nominalspeed) rpm 792 792
(Max speed) rpm 5630 5630
(Stall torque) N.M 0.12 0.06
(Stall current) A 1 1
(Winding turns of motor) T 65 65
(Interphase resistance) Ω 7.4 7.4
(Interphase inductance) Mh 1.68 1.68
(Speedconstant) rpm/v 469 469
(Torque constant) N.M/A 0.12 0.06
(Rotorinertia) gcm^2 9 5
(Number of pole pairs) Pairs 7 7
(Workingtemperature) ℃ -20~80 -20~80
(Max demagnetize tempersture) ℃ 120 120
(Inner diameter of the stator) mm 10 10
(Motor size) mm Ø26.3*9 Ø25.3*6.2
(Motor weight) g 14 12
ATTENTION:
1. Please make sure your motor has enough cooling while running.
2. Keep motors away from moisture, dust, scrap and small items to avoid damages.
TIPS:
★ We welcome OEM orders, KV value, motor color, logo all can be customized.
