China Factory & Customizable & Balanced BLDC 2400KV QC1507 Brushless Drone Motor for RC Airplane Quadcopter Multicopter for sale

Factory & Customizable & Balanced BLDC 2400KV QC1507 Brushless Drone Motor for RC Airplane Quadcopter Multicopter

Name: Factory & Customizable & Balanced BLDC 2400KV QC1507 Brushless Drone Motor for RC Airplane Quadcopter Multicopter
Brand: Dongguan Haoyida Electronic Technology Co., Ltd.

Price Negotiable

Price: $7.20-7.50 / piece

MOQ: 10 pieces

Delivery Time: Negotiable

Brand: HOBBYSKY

Product Description

Products Description

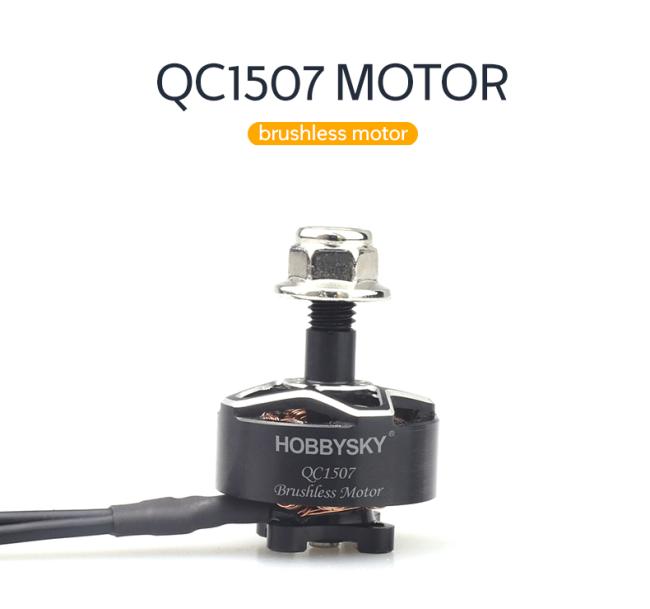

Motor model: QC1507
Project	The numerical
Motor KV	2400RPM/V
Idle Current (Io/10V)	0.45A
Lipo Cell	3-6S
Weight	17.8g
Max Continuous Current	30A
Max Continuous Power	720W
Max thrust	740g
Configu-ration	9N/12P
Motor Resistance (RM)	0.1935 Ω

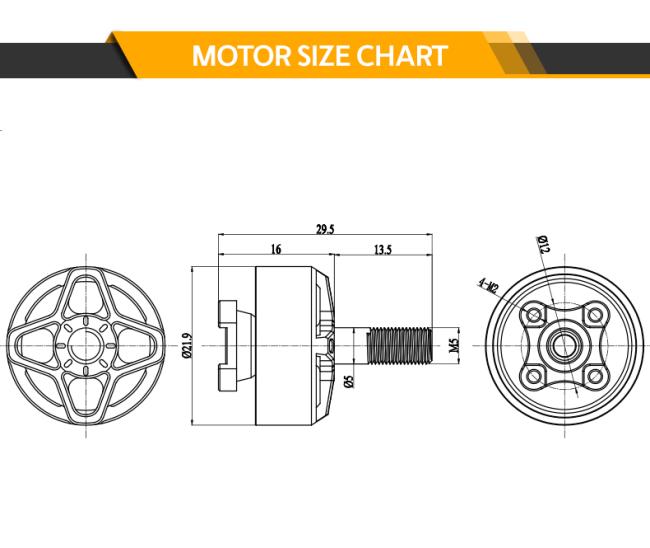

Stator Diameter	15mm
Stator Thickness	7mm
Motor Diameter	21.9mm
Motor Body Length	16mm
Overall Shaft Length	29.5mm
Prop adapter shaft	M5
Bolt holes spacing	12mm
Bolt thread	M2
Propeller	3”

X1507 thrust swab
ltem NO.	Volts (V)	Prop	Throttle	Amps (A)	Watts (W)	Thrust (g)	Efficiency (g/W)	Operating temperature(℃)
X1507 2400kv	22.2V	3050 3R	50%	2	44.4	166	3.74	35℃
						60%	2.9		64.4	227	3.53
						70%	4.4		97.7	302	3.09
						80%	6.1		135.4	381	2.81
						90%	7.8		173.2	450	2.60
						100%	10.5		233.1	558	2.39
X1507 2400kv	22.2V	3056 3R	50%	3	66.6	198	2.97	58℃
						60%	4.8		106.6	271	2.54
						70%	6.9		153.2	342	2.23
						80%	9.6		213.1	416	1.95
						90%	12.6		279.7	501	1.79
						100%	16.8		373.0	610	1.64
X1507 2400kv	22.2V	3030 4R	50%	2.6	57.7	194	3.36	46℃
						60%	4.1		91.0	269	2.96
						70%	5.4		119.9	325	2.71
						80%	7.5		166.5	420	2.52
						90%	9		199.8	481	2.41
						100%	11.9		264.2	580	2.20
X1507 2400kv	18.5V	4045 3R	50%	5.2	96.2	279	2.90	78℃
						60%	7.1		131.4	351	2.67
						70%	9.6		177.6	410	2.31
						80%	12.1		223.9	446	1.99
						90%	17		314.5	574	1.83
						100%	22.1		408.9	624	1.53
Notes: The test condition oftemperature is motor surface temperature in 100% throttle while the motor run 30 s.environment temperature 33℃

Company Profile

FAQ

1.Are you a manufacturer?

Yes, as the original factory supplier in mainland China, we are mainly engaged in the research and development and production of brushless motors, covering aeromodelling brushless motors, electric remote control scooter brushless motors, surfboard brushless motors, and logistics sorting equipment brushless motors. A company specializing in the production and processing of outer-rotating brushless motors, inner-rotating brushless motors, and peripheral accessories and hardware accessories.

2.How to order？

Step 1.please tell us product items and quantity you need. Step 2.we will make a PI with shipping cost for your reference. Step 3.payment can be arranged after we confirm everything in details. Step 4.we will deliver the goods within stipulated time.

3.What are the payment methods?

PayPal, T/T, Western Union, Moneygram, Escrow, etc. Beside, we accept Trade Assurance, which can protect your payment if you will not get the goods, so you can just place order in without any wories.

4.Do you provide OEM/ODM services?

Yes! Welcome to send us inquiries about OEM&ODM custom design.
