FESTO Pneumatic Solenoid Valves CPE14-M1BH-3GLS-QS-6 196889 GTIN4052568159795
Price:
EXW USD50-60
MOQ:
1pc
Delivery Time:
7-10 working days
Brand:
FESTO
Product Description
FESTO Solenoid valve CPE14-M1BH-3GLS-QS-6 196889 GTIN4052568159795 Pneumatic Solenoid Valves
Advantage
1.Simple design comprising compact valve manifold assemblies with inline valves.
2.Mounting with stable retaining bracket and special moulded seal guarantee leak-free assembly.
3.2 to 10 valve positions.
4.Aluminium mounting rail provides high stability.
5.High flow rates with air supply on both sides for duct 1.
6.High exhaust capacity with output on both sides for ducts 3 and 5.
Technical Data
| Valve function | 3/2-way, closed, monostable |
| Type of actuation | Electric |
| Construction width | 14 mm |
| Standard nominal flow rate | 510 l/min |
| pneumatic working port | QS-6 |
| Operating voltage | 24V DC |
| Design | Piston gate valve |
| Type of reset | Pneumatic spring |
| Approval | c UL us - Recognized (OL) |
| Degree of protection | IP65 With plug socket To IEC 60529 |
| Nominal size | 6 mm |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting via accessory Non-detenting |
| Type of piloting | Pilot actuated |
| Pilot air supply | External |
| Flow direction | Non-reversible |

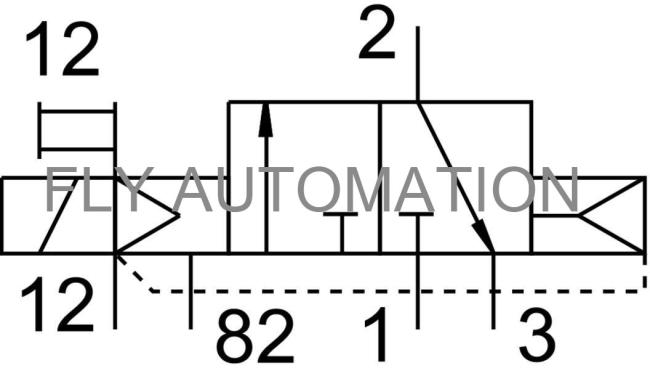

| Symbol | 00991405 |
| Valve position code | Inscription label holder |
| lap | Positive overlap |
| Switching time off | 27 ms |
| Switching time on | 16 ms |
| Duty cycle | 100% in conjunction with holding current reduction |
| Characteristic coil data | 24 V DC: 1.28 W |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5°C-50°C |
| Ambient temperature | -5°C-50°C |
| Electrical connection | 2-pin |
| Type of mounting | With through-hole |
| Pilot exhaust port 82 | M3 |
| Pilot air port 12 | M3 |
| Pneumatic connection, port 1 | QS-6 |
| Pneumatic connection, port 2 | QS-6 |
| Pneumatic connection, port 3 | G1/8 |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material housing | Die-cast aluminium |
Another Size as below,
| Type | Order no | Price |
| CPE14-M1BH-3GL-1/8 | 196929 | USD50-60 |
| CPE14-M1BH-3GL-QS-6 | 196887 | USD50-60 |
| CPE14-M1BH-3GL-QS-8 | 196888 | USD50-60 |
| CPE14-M1CH-3GL-1/8 | 550247 | USD50-60 |
| CPE14-M1BH-3OL-1/8 | 196931 | USD50-60 |
| CPE14-M1BH-3OL-QS-6 | 196891 | USD50-60 |
| CPE14-M1BH-3OL-QS-8 | 196892 | USD50-60 |
| CPE14-M1CH-3OL-1/8 | 550249 | USD50-60 |
| CPE14-M1BH-3GLS-1/8 | 196930 | USD50-60 |
| CPE14-M1BH-3GLS-QS-6 | 196889 | USD50-60 |
| CPE14-M1BH-3GLS-QS-8 | 196890 | USD50-60 |
| CPE14-M1CH-3GLS-1/8 | 550248 | USD50-60 |
| CPE14-M1BH-3OLS-1/8 | 196932 | USD50-60 |
| CPE14-M1BH-3OLS-QS-6 | 196893 | USD50-60 |
| CPE14-M1BH-3OLS-QS-8 | 196894 | USD50-60 |
| CPE14-M1CH-3OLS-1/8 | 550250 | USD50-60 |
Product picture
There are so many models and series. Welcome to enquire!
