150426 Pneumatic System Proximity Sensor SIEN-M18NB-PS-K-L GTIN4052568069360

Price Negotiable

Price: USD50-60

MOQ: 1pc

Delivery Time: 5-7 working days

Brand: FESTO

Product Description

FESTO Proximity sensor SIEN-M18NB-PS-K-L 150426 GTIN4052568069360

About product

1.With standard switching distance.

2.For DC voltage.

3.Round design.

4.Switching output:PNP.

5.Switching element function:N/O contact.

6.Type of installation:Not flush P.

7.Corrosion-resistant .

8.Polyamide housing.

Product Technical Data

Conforms to standard	EN 60947-5-2
Symbol	00991702
Approval	RCM trademark c UL us listed (OL)
CE mark (see declaration of conformity)	To EU EMC Directive
Note on materials	RoHS-compliant
Rated operating distance	8 mm
Assured operating distance	6.48 mm
Repetition accuracy	0.4 mm

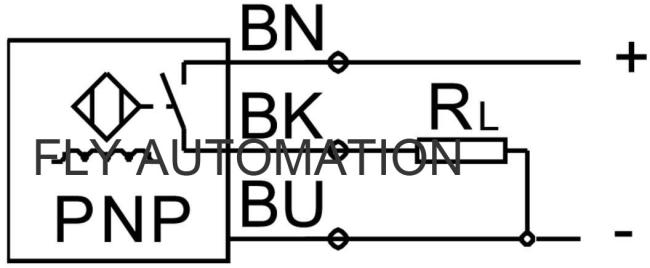

Switching output	PNP
Switching element function	N/O contact
Hysteresis	0.88 mm
Max. switching frequency	2000 Hz
Max. output current	200 mA
Voltage drop	2 V
Short circuit current rating	Pulsed
No-load supply current	10 mA
Reverse polarity protection	For all electrical connections
Electrical connection	3-wire Cable
Cable length	2.5 m
Material cable sheath	TPE-U(PUR)
Size	M18x1
Type of mounting	Via lock nut
Tightening torque	20 Nm
Mounting type	Not flush
Product weight	105 g
Material housing	Brass PBTP Nickel-plated
Switching status indication	Yellow LED
Degree of protection	IP67
Immunity to surge	0.8 kV
LABS (PWIS) conformity	VDMA24364-B2-L
Pollution degree	3
Additional information for sensor selection	with standard sensing distance
Electrical output	PNP
Selection of sensor design	Standard
