LED FESTO Connecting Cable SIM-M8-3WD-2,5-NSL-PU 159426 GTIN4052568071530

Name: LED FESTO Connecting Cable SIM-M8-3WD-2,5-NSL-PU 159426 GTIN4052568071530
Brand: Airwolf Automation

Price Negotiable

Price: EXW USD40-50

MOQ: 1pc

Delivery Time: 7-10working days

Brand: FESTO

Product Description

FESTO connecting cable SIM-M8-3WD-2,5-NSL-PU 159426 GTIN4052568071530

About product

1.For thread M8 grid locking A-coded according to EN 61076-2-104.

2.For thread M12x1 A-coded according to EN 61076-2-101.

3.Pre-assembled at one end.

4.The connecting cables NEBU can be configured and ordered using a modular system. A range of characteristics can therefore be defined.

5.The cable characteristic indicates the resistance of the connecting cable to the mechanical load.

Technical Data

Conforms to standard	EN 61076-2-104 EN 61984
Ready status indication	Green LED
Switching status indication	Yellow LED

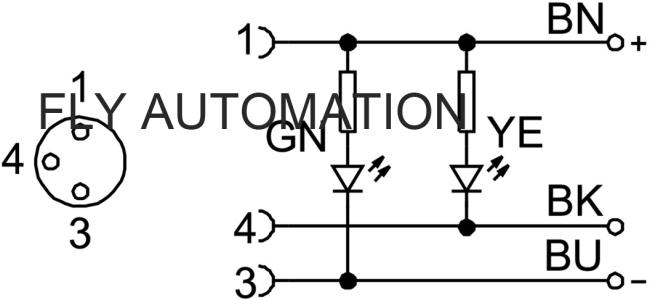

Electrical connection	3-pin/3-wire Angled socket/open end M8x1/-
Symbol	00995370
Operational voltage range DC	10 V ... 30 V
Immunity to surge	0.8 kV
Cable length	2.5 m
Cable characteristic	Standard
Cable diameter	3.8 mm
Colour code wire insulation	Blue Brown Black
Degree of protection	IP65 IP68
Ambient temperature	-25°C-80°C
Ambient temperature with moving cable	-5°C-80°C
CE mark (see declaration of conformity)	In accordance with EU RoHS Directive
CE marking (see declaration of conformity)	To UK RoHS instructions
LABS (PWIS) conformity	VDMA24364-B2-L
Pollution degree	3
Corrosion resistance class CRC	2 - Moderate corrosion stress
Material cable sheath	TPE-U(PU)
Cable sheath colour	grey
Material housing	TPE-U(PU)
Housing colour	Black
Material union nut	Nickel-plated brass
Material seals	NBR
Material electrical contact	Gold-plated brass
Material insulating sheath	PP
