6SL3210-5DE13-5UA0 85044095 Servo Drive SIEMENS V70
Price:
EXW USD930-1107
MOQ:
1PC
Delivery Time:
8-15 work days
Brand:
SIEMENS
Product Description

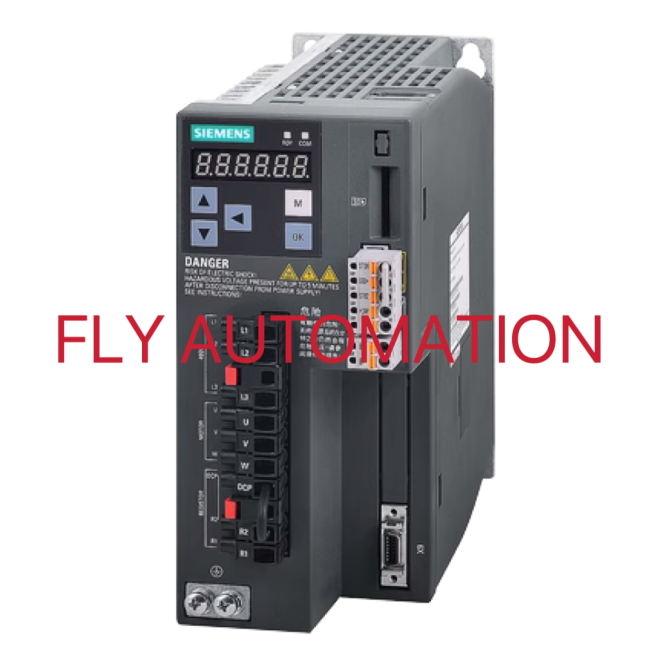

SIEMENS V70 Servo Drive 6SL3210-5DE13-5UA0 85044095
| Rated data: | |
| Input: | |
| Number of phases | 3 AC |
| Line voltage | 380 ... 480 V -15 % +10 % |
| Line frequency | 45 ... 66 Hz |
| Output: | |
| Rated power | 1.00 Kw |
| Rated current (IN) | 3.00 A |
| Max. output current | 9.00 A |
| Electronic power supply: | |
| Power supply | 24 V ±10 % |
| Ambient conditions: | |
| Cooling | natural convection |
| Installation altitude | 1000 m |
| Cooling air requirement | 0.005 m³/s ( 0.177 ft³/s ) |
| Ambient temperature: | |
| Operation | 0 ... 45 °C (32 ... 113 °F) |
| Transport | ~40 ... 70 °C (-40 ... 158 °F) |
| Max. operation | 90% |
| General tech. specifications: | |
| Power loss | 47.00 W |
| Connections: | |
| Conductor cross-section | 1.5 mm² |
| Standards: | |
| Compliance with standards | CE |
| Mechanical data: | |
| Degree of protection | IP20 / UL open type |
| Frame size | FSA |
| Net weight | 1.85 kg ( 4.08 lb ) |
| Width | 80.0 mm ( 3.15 in ) |
| Height | 180.0 mm ( 7.09 in ) |
| Depth | 200.0 mm ( 7.87 in ) |
